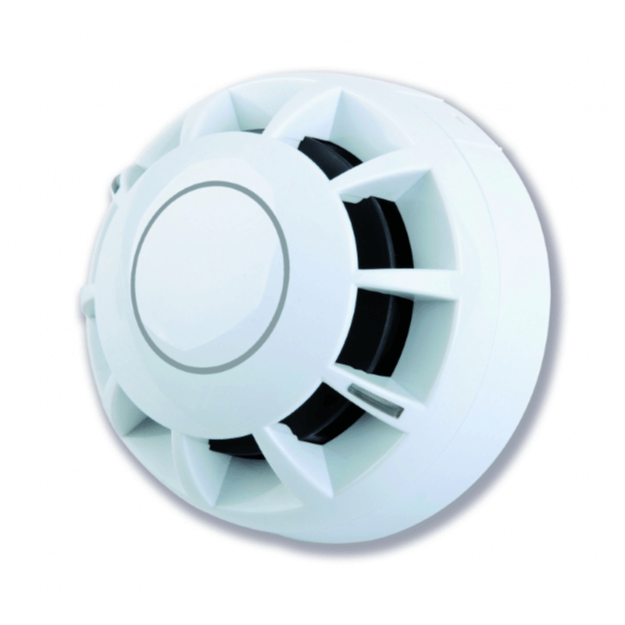

ActiV Optical Smoke Detector - C4416
A high quality detector at a competitive price.
The Activ Optical Smoke Detector is a non-addressable detector, occasionally referred to as a conventional detector.
- Manufactured in the UK by C-TEC
- Part No. C4416
- Third-party certified to EN54-7 by Intertek.
- Wide 6-33V DC operating voltage.
- 360º visibility due to two 8mm x 2mm ultra-bright red LED indicators.
- Drift compensation functionality ensures detector sensitivity is automatically calibrated to suit prevailing conditions and/or increased contamination levels.
- Compatible with our ActiV C4408D diode, C4408 non-diode and C4408R relay bases.
Approvals / Certifications
Certified to EN54-7 by Intertek (0359-CPR-00183).
Application / Operation
Uses an IR light source & photodiode to detect smoke. Typically used in escape routes, living areas, bedrooms & other enclosed spaces. Particularly effective at detecting slow burning fires caused by overheated electrical wiring or smouldering materials.
- Application temperature: n/a.
- Static response temperature: n/a.
- Sensitivity: Nominal alarm threshold of 0.16db/m obscuration measured in accordance with EN54-7:2000.
- Supply wiring: 2-wire monitored, polarity sensitive.
- Supply/operating voltage 9 to 33V DC.
- Quiescent current: 30µA @ 24 VDC.
- Alarm voltage: 6-33V DC.
- Alarm current: 19mA @ 12-33V DC; 11mA @ 9V DC; 2.5mA@ 6V DC.
- Alarm reset voltage: Less than 1V DC (+0.5 seconds alarm reset time).
- Expansion connections: Remote LED output available via ActiV base. Current source to the negative line, short-circuit protected. Max voltage 2.7V DC.
- Product dimensions: (mm) 102.2mm diameter x 37mm deep (detector in base); 102.2mm diameter x 57.5mm deep.
- Construction & finish: White polycarbonate casing rated to UL94 V-2 with nylon parts.
- IP Rating: IP42.
- Weight: 99g.
