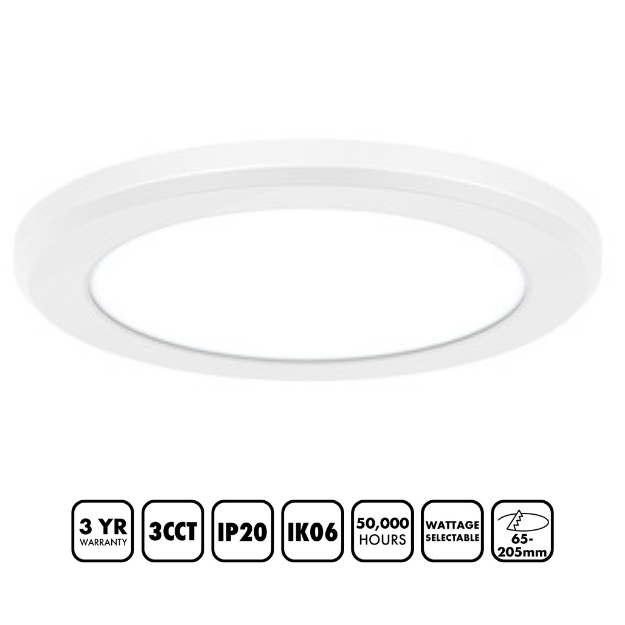

BLE Broadfield LED Circular Panel - 10/13/16W, IP20, IK06, EL-162601

Adaptable BROADFIELD LED Circular Panel (EL-162601): Effortless Retro-fit with Adjustable Features.

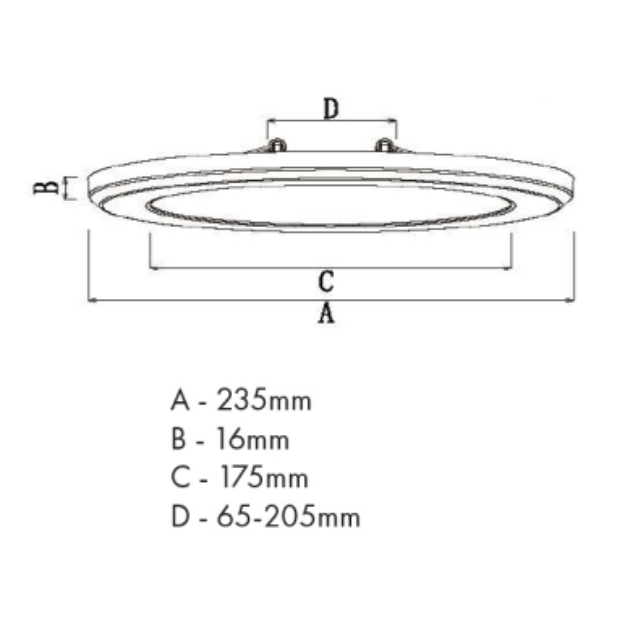

Discover the BROADFIELD LED Circular Panel, designed for seamless retrofit applications. Its adjustable bracket, accommodating holes from 65-205mm in diameter, ensures a perfect fit.

Customize your lighting experience with adjustable colour temperature (Warm White, Cool White, Day Light) and wattage (10W, 13W, 16W).

Enjoy even light output, a slim design, and added safety features like over-voltage and short-circuit protection.

The BROADFIELD LED Circular Panel is your go-to choice for hassle-free and versatile retrofit installations. Class II certified for added reliability.

 Code Description Colour Wattage
EL-162601 Circular Panel Adjustable Wattage White 10/13/16W

Key Features:

  • Adjustable Installation: Enjoy seamless integration with existing fixtures thanks to the adjustable bracket that fits holes between 65-205mm in diameter. This eliminates the need for complex rewiring, perfect for retrofitting recessed downlights.
  • Customizable Lighting: Tailor the ambience to your needs with adjustable colour temperature options (warm white, cool white, daylight) and selectable wattage (10W, 13W, 16W).
  • Uniform Light Distribution: Experience even and glare-free illumination across the entire panel, ensuring comfortable and effective lighting.
  • Sleek and Slim Design: This low-profile panel adds a modern touch to any space without compromising on light output.
  • Built-in Safety Features: Over voltage and short circuit protection provide peace of mind and ensure lasting performance.
  • Durable Construction: The robust polycarbonate body offers long-lasting use and resists scratches and fading.
  • Energy Efficiency: Enjoy significant energy savings compared to traditional halogen downlights while delivering superior brightness.
  • Multiple Mounting Options: Install the panel on the surface or utilize the adjustable bracket for a semi-recessed look.

Ideal Application:

  • Commercial and Office Spaces: Illuminate offices with modern and efficient Broadfield LED Panels. Adjustable colour temperature and wattage for versatile lighting.

  • Retail and Hospitality: Highlight merchandise in retail stores and enhance hospitality spaces. Over voltage and short circuit protection for durability.

  • Education and Healthcare: Provide uniform lighting in classrooms and healthcare settings. Ideal for retrofit applications with adjustable bracket.

  • Residential and Architectural: Illuminate living spaces and architectural projects with versatile Broadfield Panels. Sleek design and adjustable features complement various aesthetics.

  • Industrial Workspaces: Illuminate industrial areas with robust Broadfield LED Panels. IK06 rating ensures impact resistance in tough environments.

Specification:

  • Light Source: SMD LED
  • Light Source Replaceable: No
  • Colour/Finish: White
  • Material: Polycarbonate
  • IP Rating: IP20
  • IK Rating: IK06
  • Mounting Type: Surface or Recessed
  • Warranty: 3 Years
  • Life Time Hours: 50,000
  • Input Voltage: 220-240V
  • Input Frequency: 50Hz
  • Wattage: 10/13/16W
  • Classification: Class II
  • Operating Temperature: -20 Celsius to +40 Celsius
  • Power Factor: 0.9
  • Colour Temperature: 3000K/4000K/5700K
  • CRI: 80
  • Beam Angle: 120 degrees
  • Lumen Output Mains: 950-1800lm
