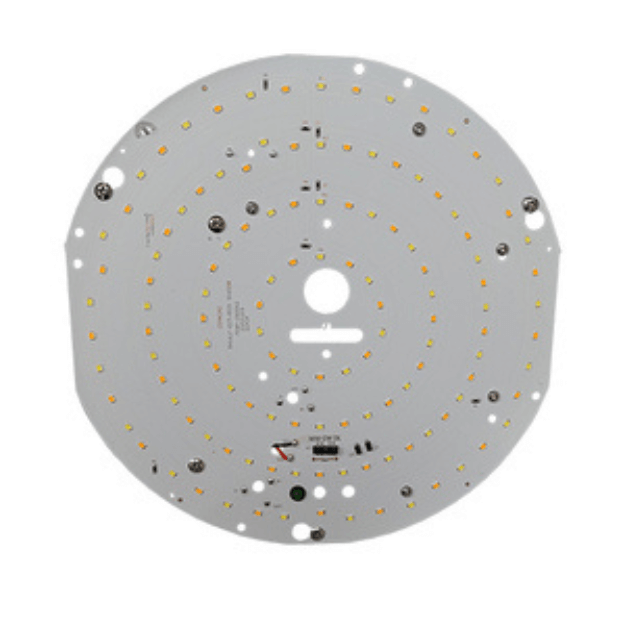

BLE Forge Circular Gear Trays - 2D Round Trays - 15W, 3CCT, EL-193450

Upgrade your industrial lighting with the versatile and energy-saving BLE Forge Gear Trays (EL-193450).

These high-performance LED fixtures offer a multitude of options to seamlessly integrate into existing infrastructure, making them ideal for retro-fit applications in warehouses, factories, workshops, and other commercial spaces.

 Code Description Sensor Technology
EL-193450
230V Mains Gear Tray -
EL-193450-MW
230V Mains Gear Tray  Microwave Sensor
EL-193450-SD
230V Mains Gear Tray Step Dim Microwave Sensor
EL-193450-M3
3hr Emergency Gear Tray -
EL-193450-M3-MW
3hr Emergency Gear Tray Microwave Sensor
EL-193450-M3-SD
3hr Emergency Gear Tray Step Dim Microwave Sensor



Key Features:

  • Retrofit Ready: Easily replace outdated fluorescent fittings in standard gear trays, saving time and cost on rewiring.
  • High-Performance LEDs: Enjoy outstanding lumen output (2100lm) with minimal energy consumption (15W), significantly reducing your lighting bills.
  • Selectable Colour Temperature: Choose between warm white, cool white, and daylight white (3CCT) to match your specific needs and create the desired ambience.
  • Enhanced Control Options:
    • Standard: Provides continuous illumination for general areas.
    • Microwave Sensor: Automatically activates the light upon detecting movement, maximizing energy savings and security.
    • Step Dim Microwave Sensor: Offers both motion detection and adjustable dimming levels for added convenience and control.
    • Emergency Version: Delivers backup lighting during power outages, ensuring safety and compliance with regulations.
  • Durable Construction: Built with robust aluminium, the Forge LED Trays offer long-lasting performance and withstand demanding environments.
  • Peace of Mind: Backed by a 5-year warranty, you can be confident in the quality and reliability of your investment.

Ideal Application:

  • Commercial and Retail Spaces: Retrofit efficient lighting in offices and stores with adjustable 3CCT options. Step Dim Microwave Sensor version for customizable and energy-efficient retail lighting.

  • Industrial and Healthcare: Optimal illumination for factories, warehouses, and healthcare settings with reliable gear trays. Emergency version for continued lighting during outages in critical environments.

  • Residential and Outdoor Areas: Energy-efficient and adjustable lighting for homes, pathways, and gardens. The Microwave Sensor version enhances security in outdoor spaces.

  • Hospitality and Public Spaces: Modern lighting solutions for hotels, restaurants, community centres, and libraries. Step Dim Microwave Sensor version for customizable hospitality lighting.

Specification:

  • Light Source: LED
  • Light Source Replaceable: No
  • Colour/Finish: White
  • Material: Aluminium
  • Warranty: 5 Years
  • Life Time Hours: 50,000
  • Input Voltage: 220-240V
  • Input Frequency: 50Hz
  • Wattage: 15W
  • Classification: Class I
  • Power Factor: 0.9
  • Colour Temperature: 3CCT
  • CRI: 80
  • Lumen Output Mains: 2100lm (at 4000K)
  • Emergency Lumen Output: 260lm (4000K)
