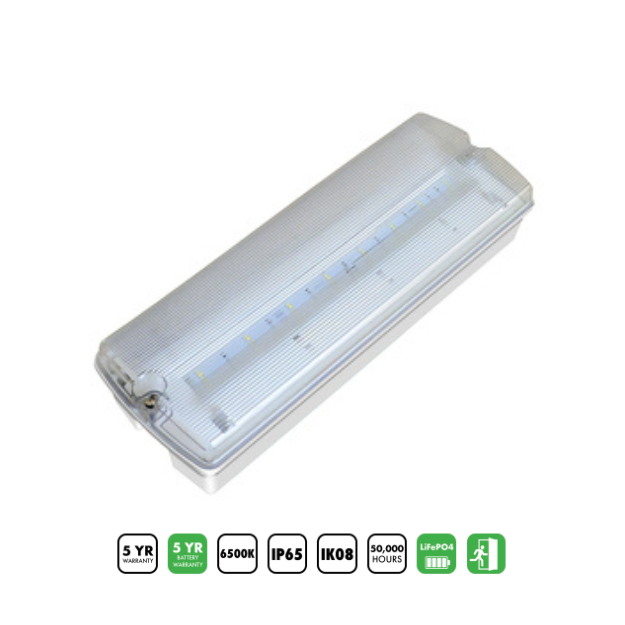

BLE's NORFOLK Emergency Bulkhead (EL-110150) - The Ultimate Solution for Reliable Emergency Lighting!
Experience the peace of mind and reliability that comes with the NORFOLK Emergency Bulkhead. This top-notch emergency lighting fixture is thoughtfully designed to ensure safety and efficiency in any environment.
Code |
Description |
Dimensions |
EL-110150 |
6w Emergency Bulkhead IP65 Maintained/Non-maintained LiFePO4 |

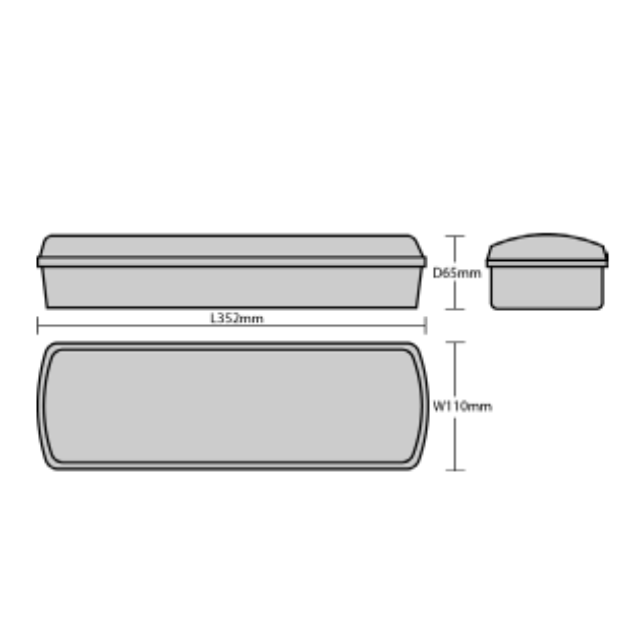

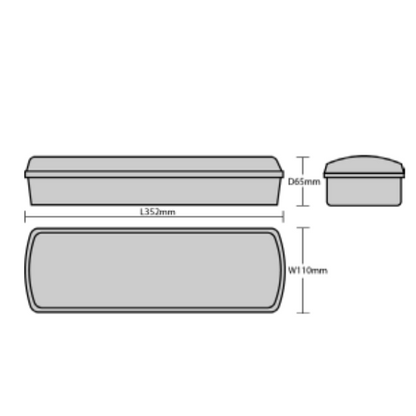

352m x 110m x 65mm |
EL-194504
|

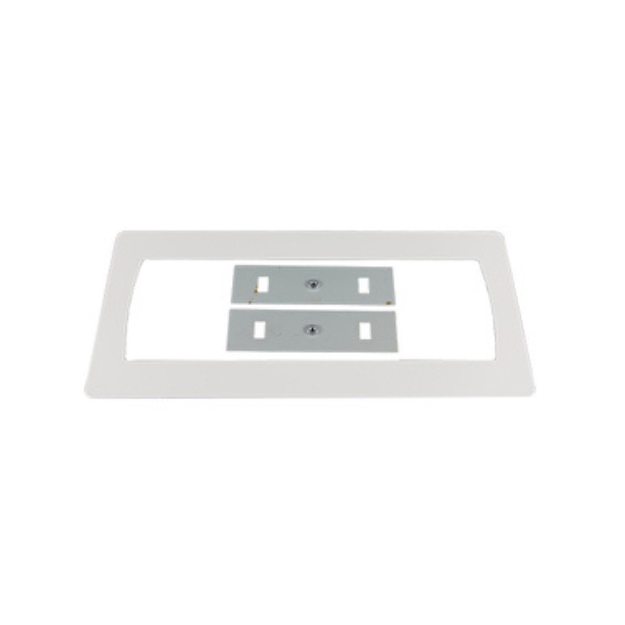

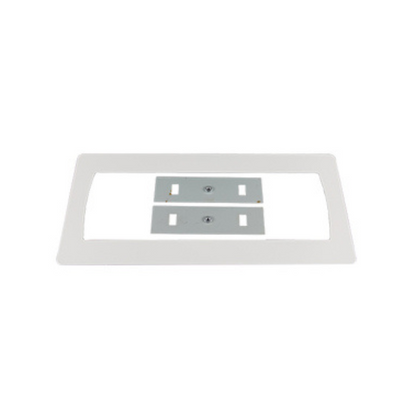

Semi-Recessing Kit |
394mm x 166mm x 2mm |
Key Features:
-
Green LED healthy charge indicator: Equipped with a green LED healthy charge indicator, you can easily monitor the status of your emergency lighting system, guaranteeing its readiness when you need it most.
-
Low power consumption: Plus, benefit from low power consumption, saving energy without compromising on performance.
-
Easy install hinged gear tray: Installation is a breeze with the NORFOLK Emergency Bulkhead's easy install hinged gear tray, making setup quick and hassle-free.
-
Traditional design, Ideal for retrofit applications: Its traditional design blends seamlessly into any space, making it ideal for retrofit applications, whether it's for commercial, industrial, or residential settings.
-

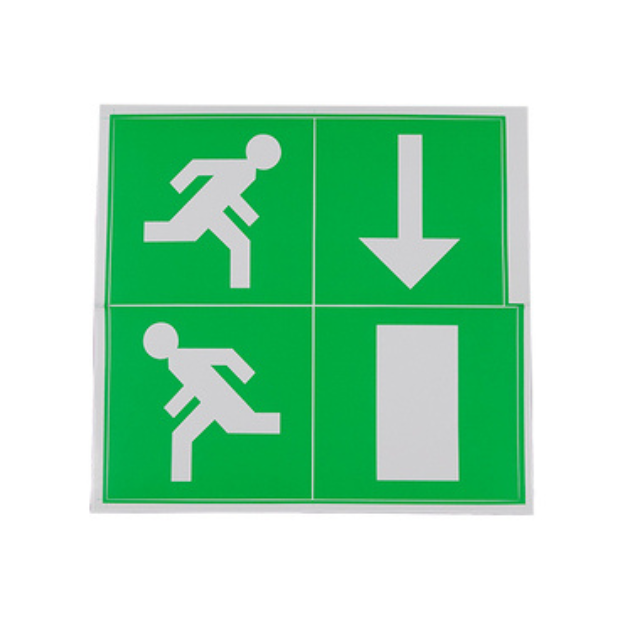

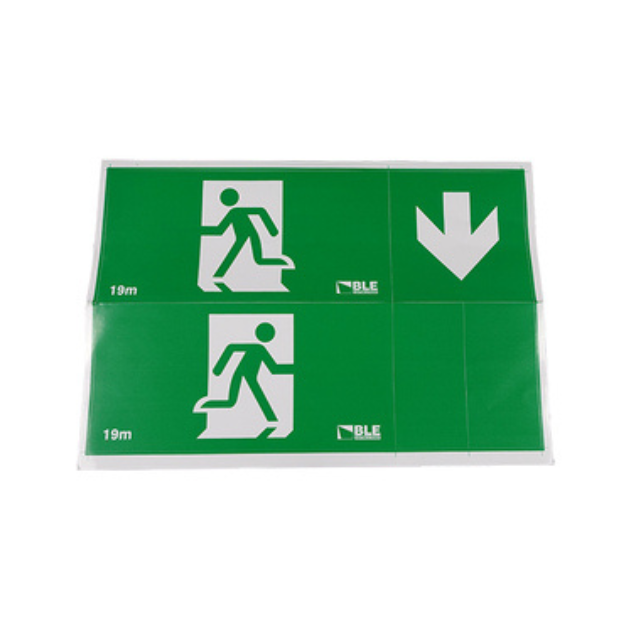

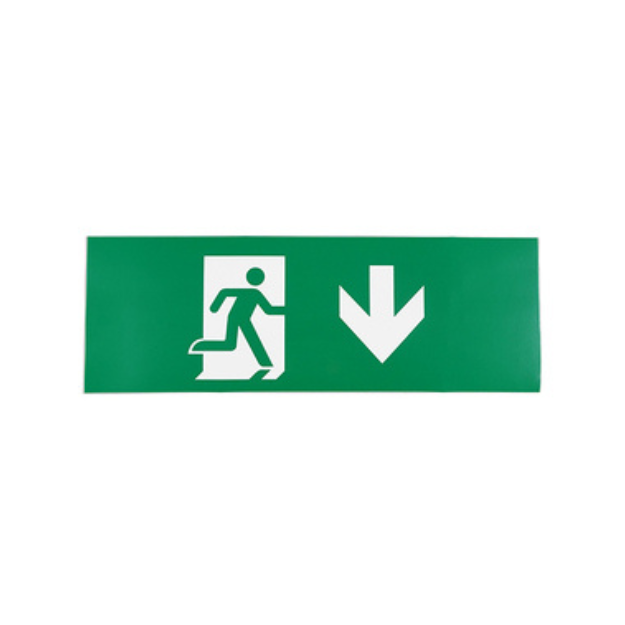

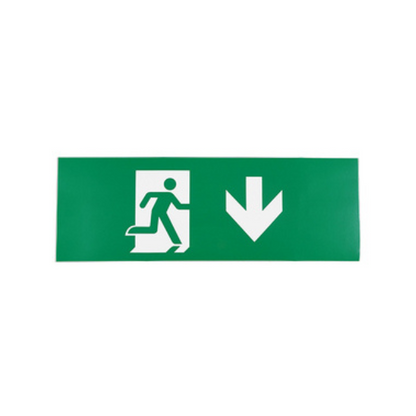

Supplied with self adhesive BS EN ISO 7010 exit legend pack: For added convenience and safety, the NORFOLK Emergency Bulkhead comes supplied with a self-adhesive BS EN ISO 7010 exit legend pack, ensuring clear and visible exit signs, even in low-light situations. Invest in the NORFOLK Emergency Bulkhead for unparalleled reliability, ease of installation, and efficient emergency lighting. Secure your surroundings with this essential emergency lighting fixture today!
Ideal Application:
-
Retrofit Projects: Traditional design for various retrofit applications. Quick and easy installation with hinged gear tray.
-
Commercial and Retail: Ceiling or wall installations for safety in offices and shops. Energy-efficient with low power consumption.
-
Residential and Public Spaces: Classic design suits homes and public areas. Self-adhesive exit legend pack for clear signage.
-
Education and Healthcare: Easy retrofit in schools and healthcare settings. Long lifespan ensures reliable lighting.
-
Transportation Hubs: Ideal for retrofit projects in transit terminals. Prismatic diffuser for even light distribution.
Specification:
- Input voltage: 220 - 240v
- Wattage: 6w
- Operating Temperature: 0 to 40 degC
- Material: Polycarbonate
- CRI: 70 CRI
- Mode of Operation: Maintained / Non-Maintained
- Lumen Output: 356 lm
- Emergency Lumen Output: 112 lm
- Battery Type: LiFePO4 3.2v 1.5Ah

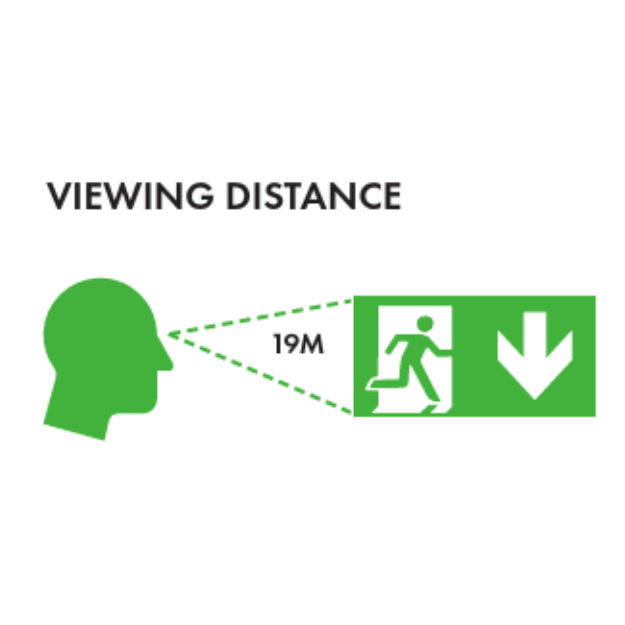

- Viewing Distance: 19m
- Battery Warranty: 5 Years
- Warranty: 5 Years
- Colour Temperature: 6500k
- IP Rating: IP65
- IK Rating: IK08
- LED Lifetime: 50,000 Hours
