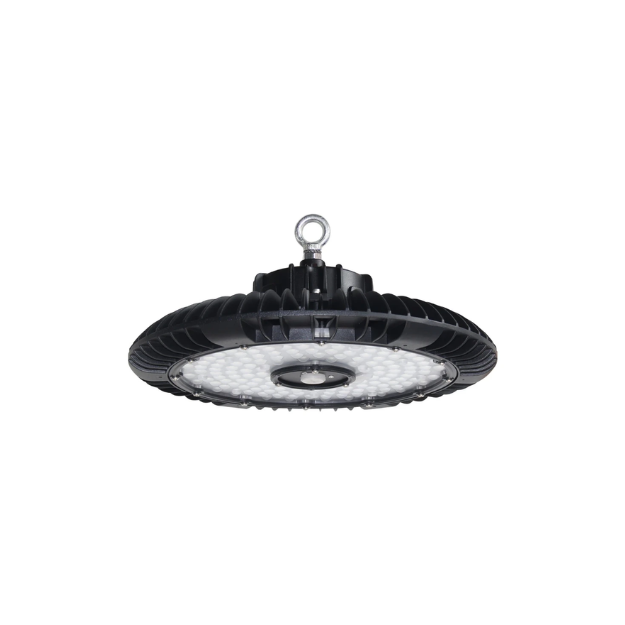

Brackenheath Dimmable DualBay LED Highbays - 150W/200W, IP65, IK08

Upgrade your warehouse, factory, or commercial space with the versatile DualBay! This high-performance LED highbay has a 60 degree beam angle and flicker-free driver that ensure even, comfortable light. IP65-rated for indoor use, with 2m flex and hanging loop.

150W and 200W models add dimmability & optional plug-n-play PIR sensor for enhanced efficiency and security:

Code Description Colour Temperature Wattage
BR3511 LED Highbay, Dimmable with plug in sensor 4000K 150W
BR3512 LED Highbay, Dimmable with plug in sensor 6500K 150W
BR3513 LED Highbay, Dimmable with plug in sensor 4000K 200W
BR3514 LED Highbay, Dimmable with plug in sensor 6500K 200W


Key Features:

  • Dimmable Magic (150W/200W): Forget fiddling with switches! Tailor light levels to match your tasks, whether it's a delicate assembly line or a forklift frenzy. Save energy and keep your crew comfortable, all with a simple dimmer twist.
  • Sensor Smarts and Remote Control (Optional): Ditch the ladder-climbing and bask in the glow of automation. Plug-in sensors and a handy remote control let you adjust lights on the fly, saving time, energy, and maybe even a few blisters.
  • Banish the Warehouse Gloom: Say goodbye to dim aisles and squinting colleagues! The DualBay's powerful punch of 19,500lm to 26,000lm floods even the narrowest walkways and vastest spaces with bright, crisp light. No more fumbling for stock or tripping over pallets in the dark.
  • Retrofit Revolution: Got tired of those dusty, outdated highbays? The DualBay's clever design slips seamlessly into place, breathing new life into your warehouse without a major overhaul. Upgrade your lighting, not your budget!
  • Weatherproof Warrior: Rain, hail, or shine, the DualBay takes it all in stride. Its IP65 rating means dust and water jets are no match for this industrial lighting champ. Keep your operations running smoothly, come what may.

Ideal Application:

  • Warehouses: Transform dimly lit aisles into well-lit pathways for efficient picking, packing, and shipping.
  • Production and Assembly Lines: Provide precise, adjustable lighting for detailed tasks, boosting accuracy and reducing errors.
  • Storage and Logistics Facilities: Illuminate large spaces with ease, ensuring clear visibility for inventory management and forklift operations.
  • Sports Halls and Gymnasiums: Adjust light levels for various activities, from high-intensity workouts to casual badminton matches.
  • Exhibition and Event Venues: Create the perfect ambience for conferences, trade shows, and other events with flexible, dimmable lighting.


  • Voltage: 220V-240V
  • Frequency: 50-60Hz
  • Power Factor: ≤0.9
  • Colour Temperature:
    • 231-8133 4000K
    • 231-8134 6500K
  • Beam Angle: 60 Degrees
  • Dimmable: 150W / 200W Yes
  • Construction: Aluminium Body and Polycarbonate Diffuser
  • IP Rating: IP65
  • IK rating: IK08
  • Lifespan: 50,000hrs
  • Light Source: Non-replaceable LED - 150W / 200W Osram chips
  • Luminous Flux: 150W 19,500Lm / 200W 26,000Lm
  • Light Source Luminous Efficacy: 150W / 200W 130lm/W
  • Standards: EN IEC 61000-3- 2:2019 EN IEC 60598-1
