Brackenheath LED CCT3 Circular Bulkheads - IP54, IK10, 220V-240V

Brackenheath LED CCT3 Circular Bulkheads are robust luminaires withadjustable colour temperature, advanced features, and long-lasting performance.

Offers adjustable colour temperature, robust features, and smart options to suit any need. You can choose from the options available:

Code  Description Dimensions

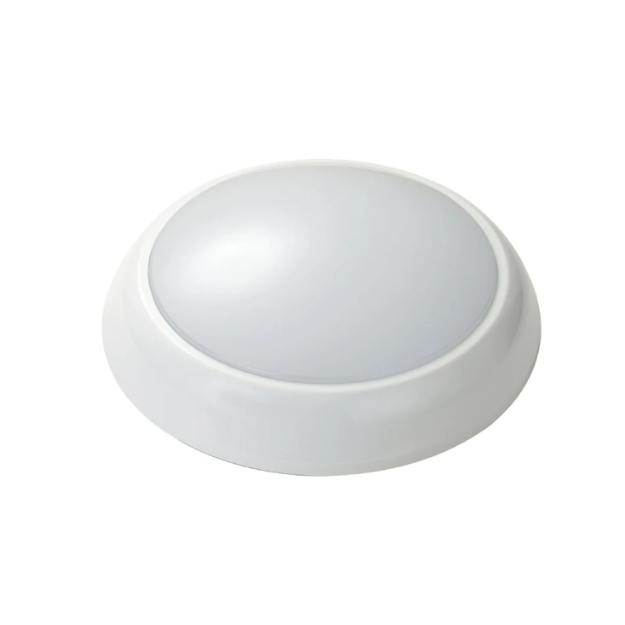

E9700 CCT Circular LED Bulkhead 325mm x 109mm

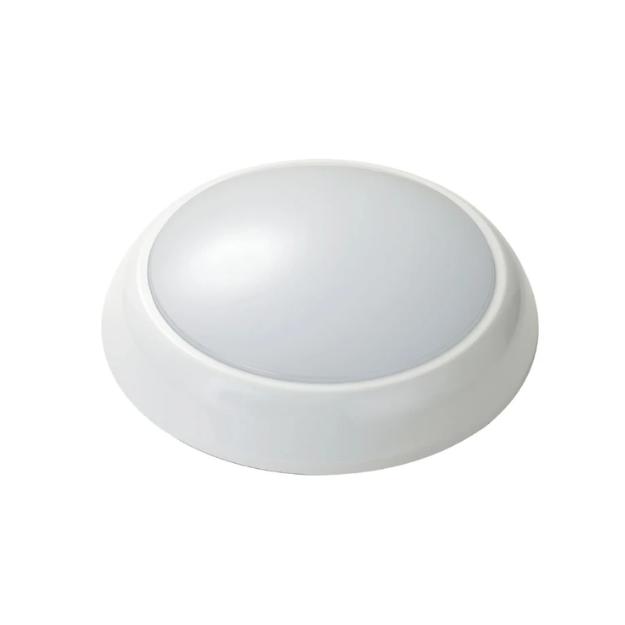

E9701 CCT Circular LED Bulkhead with Microwave Sensor 325mm x 109mm
E9702 CCT Circular LED Bulkhead with Emergency 325mm x 109mm

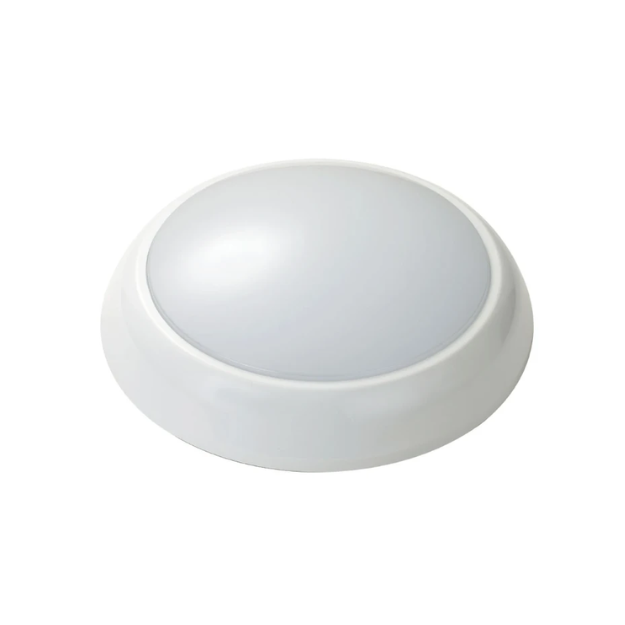

E9703 CCT Circular LED Bulkhead with Emergency and Microwave Sensor 325mm x 109mm


Key Features:

  • Tailor Your Ambiance: Switch between Warm White, Cool White, and Daylight White instantly with DIP switches (no remote required).
  • Built to Last: ENEC-approved driver and flame-retardant polycarbonate construction ensure long-lasting performance and safety.
  • Secure and Tamper-Proof: Ideal for high-traffic areas with robust build quality.
  • Smart Functionality:
    • Microwave Sensor: Enjoy automatic lighting and reduced energy costs (E9701).
    • Emergency Backup: Stay illuminated for 3 hours during outages with a 3W battery pack (E9702, E9703).
  • 360 Degree Detection and Adjustable Settings: Customize sensor range, hold time, and sensitivity for optimal control (E9701, E9703).
  • Easy Installation and Compact Design: Mount easily on ceilings or walls with minimal space required.

    Ideal Application:

    • Offices and Corridors: Create a well-lit and inviting atmosphere in office spaces and corridors, enhancing productivity and providing a comfortable environment for employees and visitors.
    • Shops and Retail Spaces: Highlight merchandise and create an appealing shopping experience with strategic lighting, drawing attention to products and contributing to a vibrant retail ambience.
    • Hospitality and Leisure Venues: Illuminate hospitality settings such as hotels, restaurants, and leisure venues, enhancing the overall atmosphere for guests and patrons, creating a welcoming and enjoyable environment.
    • Kitchens and Utility Rooms: Ensure optimal visibility and functionality in kitchens and utility rooms with focused lighting, making tasks more efficient and creating a well-lit workspace.
    • Garages and Workshops: Illuminate work areas in garages and workshops, providing ample light for detailed tasks and repairs, ensuring a safe and well-lit working environment.
    • Any Indoor Space with Moisture: Extend lighting solutions to spaces prone to moisture, such as bathrooms or areas with high humidity, with fixtures designed to withstand such conditions, ensuring durability and longevity.


    • Voltage: 220V-240V
    • Frequency: 50-60Hz
    • Power Factor: ≤0.9
    • Colour Temperature:
      • 3000K Warm White
      • 4000K Cool White
      • 6000K Daylight White
    • Construction: Polycarbonate
    • IP Rating: IP54
    • IK Rating: IK10
    • Dimmable: No
    • Light Source: Non-replaceable LED
    • Lifespan: 30,000hrs
    • Luminous Flux: 1350 lm
    • Luminous Efficacy: 75 lm/W
    • Standards: BS EN 60598-1
