Brackenheath LED CCT3 Panels - IP20, 220V-240V, 110 Degree Beam Angle

Brackenheath LED CCT3 Panels are modern luminaires effortlessly blend adjustable colour temperature, uniform illumination, and top-notch functionality, making them perfect for any commercial setting.

You can choose from the options available to best suit your needs:

Code  Description Watts Lumens

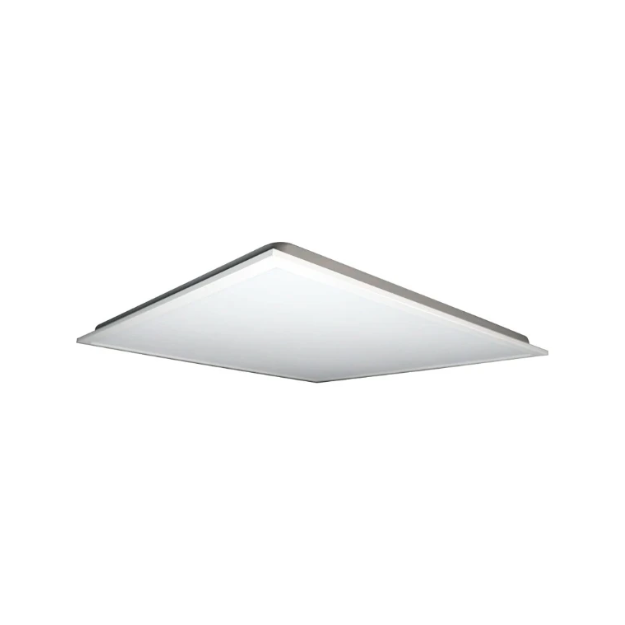

BR1113  LED Panel CCT3 600x600 32W 3500LM

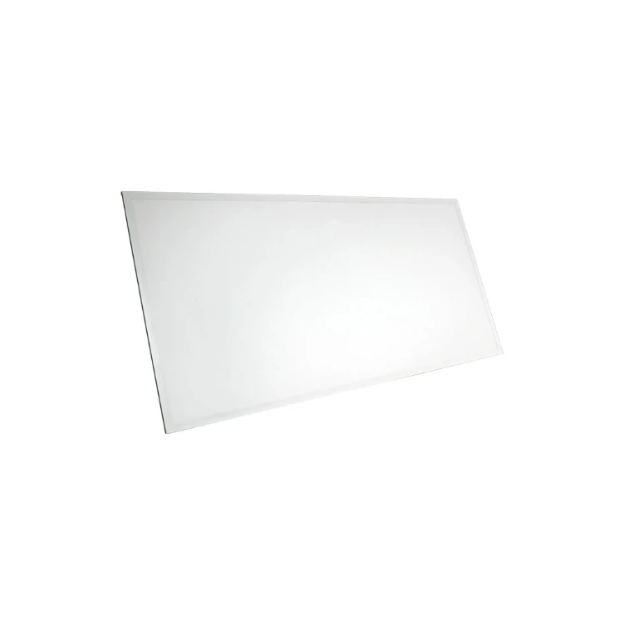

BR1123 LED Panel CCT3 1200x600 50W 5500LM

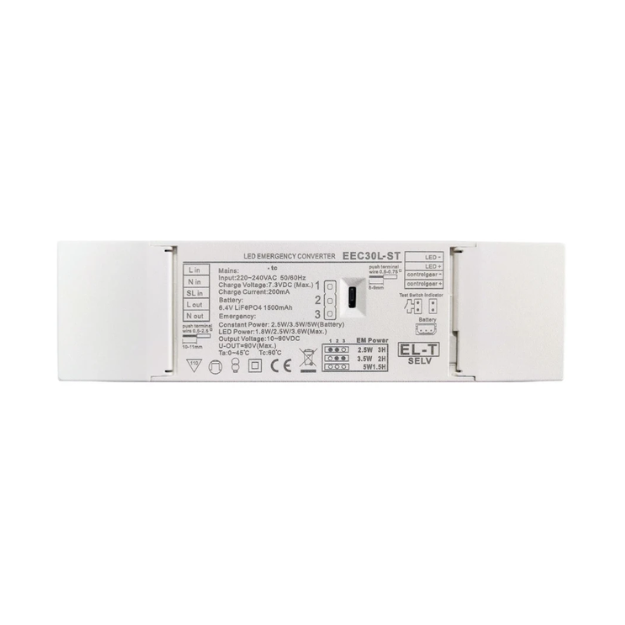

BR1129 LED Panel Remote 3Hr Self-test Emergency Pack 3W -

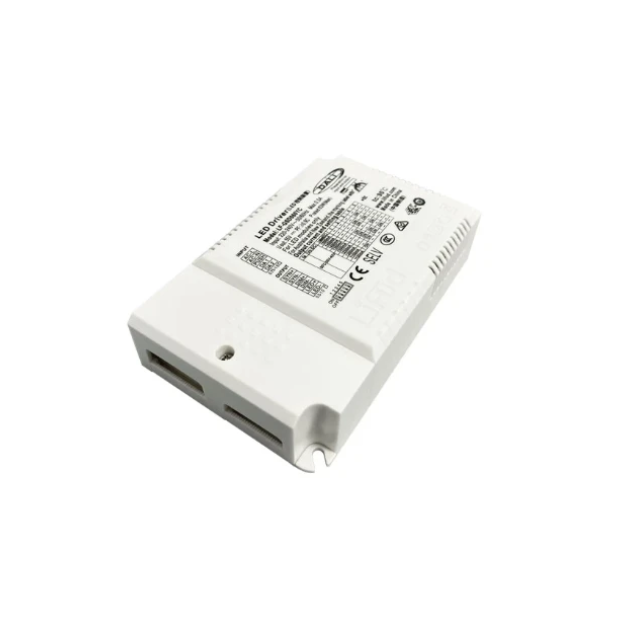

BR1196 Remote DALI Dimmable Driver 60W -



Key Features:

  • Seamless integration: TP(b) rated for suspended ceilings (600x600mm, 1200x600mm, and stylish round options).
  • Tailored ambience: Choose from Cool White (4000K), Neutral White (5000K), or Daylight (6000K) via a convenient dip switch.
  • Energy-conscious brilliance: Backlit LED design boosts brightness while slashing electricity bills.
  • Reliable performance: ENEC-approved LED drivers guarantee peace of mind.
  • Comfortable workspace: UGR˂19 (for 600x600/1200x600) and UGR˂21 (for round panels) ensure reduced glare and enhanced productivity (BS EN12464-4 compliant).
  • Ample options: Select from various wattages and light outputs to perfectly match your needs (32W-50W, 3500Lm-5500Lm).
  • Enhanced control (optional): DALI-dimmable driver and emergency pack available (sold separately).
  • Built to last: Durable polycarbonate construction, IP20 rating, and 5-year panel guarantee for enduring value.

Ideal Application:

  • Offices and Workspaces: Illuminate workspaces for productivity and comfort, fostering an environment that enhances focus.
  • Shops and Retail Spaces: Elevate the shopping experience with strategic lighting to highlight products and create an inviting atmosphere.
  • Showrooms and Exhibitions: Transform spaces into captivating environments, accentuating featured products and leaving a lasting impression.
  • Corridors and Public Areas: Enhance safety and navigation with well-lit pathways, creating a welcoming atmosphere in public spaces.
  • Hospitals and Healthcare Facilities: Prioritize patient well-being with carefully planned lighting, contributing to a positive healing environment.
  • Educational Institutions: Foster optimal learning environments with well-lit classrooms and common areas to enhance focus and concentration.

Specifications:

  • Voltage: 220-240V
  • Frequency: 50-60Hz
  • Wattage: As per range
  • Power Factor: ≤0.9
  • Colour Temperature: 4000/5000/ 6000K
  • Construction: Polycarbonate
  • Light Output:
    • BR1113 - 3500Lm 110Lm/W
    • BR1123 - 5500Lm 110 Lm/W
    • BR1251 - 450Lm 75 Lm/W
    • BR1252 - 630Lm 70 Lm/W
    • BR1253 - 840Lm 70 Lm/W
    • BR1254 -1500Lm 80 Lm/W
  • Low glare: 600x600/600x1200 UGR˂19 / Round UGR˂21
  • Beam Angle: 110 Degrees
  • IP Rating: IP20
  • Dimmable: via dimmable DALI driver available separately, item code BR1196
  • Light Source: Non-replaceable LED
  • Lifespan: 30,000hrs
  • Standards: BS EN 60598-1
  • Warranty: 5-Year Guarantee
