Brackenheath LED CCT3 Round Panels - IP20, 220-240V, UGR<21

Upgrade your commercial lighting with the sleek and versatile Brackenheath LED CCT3 Round Panels! These energy-efficient luminaires offer uniform, high-quality illumination for offices, shops, showrooms, and more.

Choose from the available options to match your needs:

Code Description Lumens Wattage

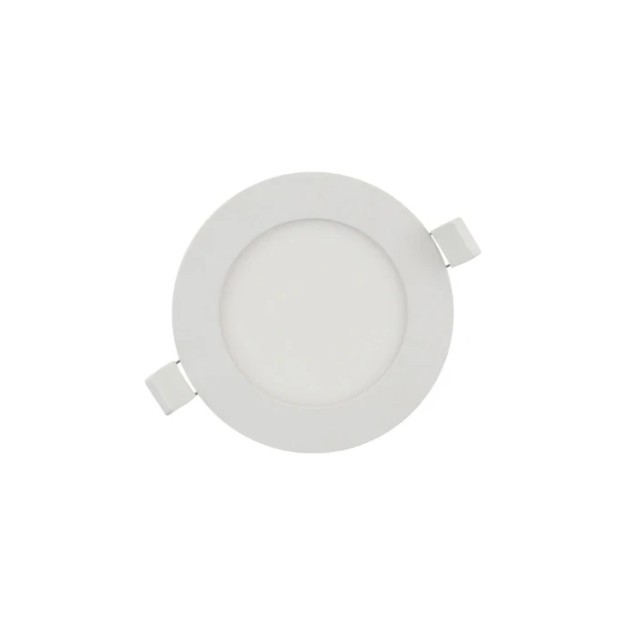

BR1251 LED Round Panel CCT3 120mm 450Lm 6W

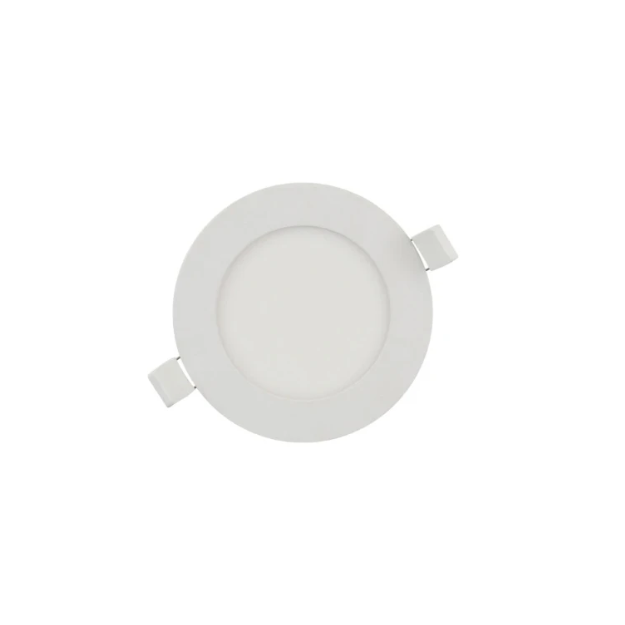

BR1252 LED Round Panel CCT3 150mm 630Lm 9W

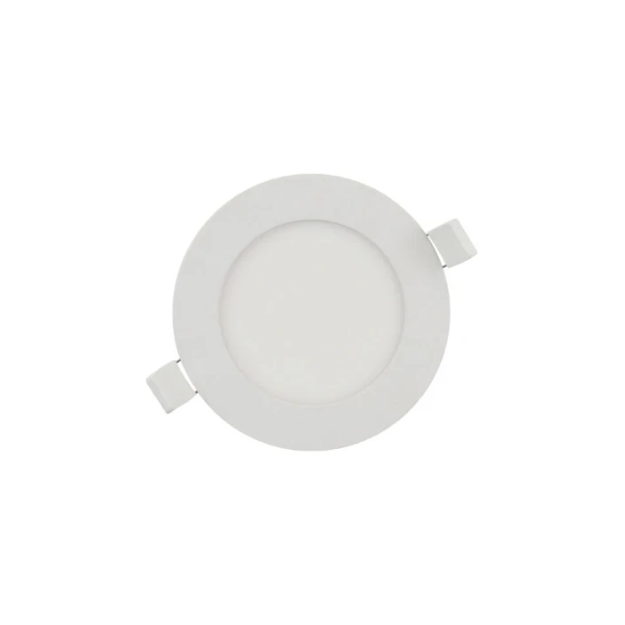

BR1253 LED Round Panel CCT3 170mm 840Lm 12W

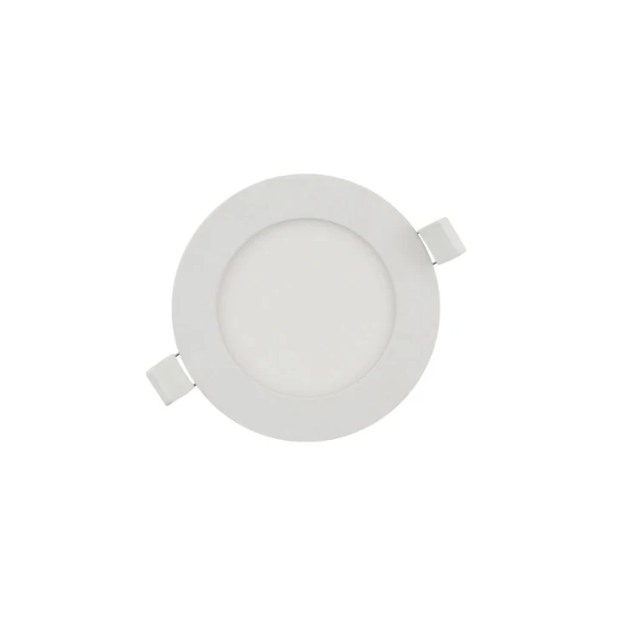

BR1254 LED Round Panel CCT3 220mm 1500Lm 18W


Key Features:

  • TP(b) Rated Diffuser: Seamlessly integrates with suspended ceilings of various sizes, including 600x600mm, 1200x600mm, and round designs.
  • Adjustable Colour Temperature (CCT3): Easily switch between Cool White (4000K), Neutral White (5000K), and Daylight (6000K) options using a convenient dip switch, offering versatile lighting solutions.
  • High-Efficiency Backlit Design: Maximizes light output while minimizing energy consumption, ensuring a cost-effective and environmentally friendly lighting solution.
  • ENEC Approved LED Driver: The LED driver is approved by ENEC, guaranteeing quality and reliability for long-lasting performance.
  • Low Glare: Designed to provide comfortable lighting, compliant with BS EN12464-4 standards, contributing to improved visual well-being.
  • Durable and Versatile: Rated IP20 for indoor use, ensuring durability, and versatility, backed by a 5-year panel guarantee for added peace of mind.


Code Description Diameter Depth
BR1251 LED Round Panel CCT3 120mm 120mm 10mm
BR1252 LED Round Panel CCT3 150mm 150mm 10mm
BR1253 LED Round Panel CCT3 170mm 170mm 10mm
BR1254 LED Round Panel CCT3 220mm 225mm 10mm


Ideal Application:

  • Offices: Boost productivity and employee comfort with bright, flicker-free illumination.
  • Shops and Retail: Showcase products in their best light and attract customers.
  • Showrooms and Exhibitions: Enhance exhibits and impress visitors with elegant, adjustable lighting.
  • Corridors and Public Areas: Ensure safe navigation and a welcoming atmosphere.
  • Restaurants and Bars: Create the perfect ambience for every occasion with adjustable colour temperature.


  • Voltage: 220-240V
  • Frequency: 50-60Hz
  • Power Factor: ≤0.9
  • Colour Temperature: 4000/5000/ 6000K
  • Construction: Polycarbonate
  • Low glare: 600x600/600x1200 - UGR˂19 /Round - UGR˂21
  • Beam Angle: 110 Degrees
  • IP Rating: IP20
  • Dimmable: via dimmable DALI driver available separately, item code BR1196
  • Light Source: Non-replaceable LED
  • Lifespan: 30,000hrs
  • Standards: BS EN 60598-1
  • Light Output Lumens:
    • BR1113 - 3500Lm 110Lm/W
    • BR1123 - 5500Lm 110 Lm/W
    • BR1251 - 450Lm 75 Lm/W
    • BR1252 - 630Lm 70 Lm/W
    • BR1253 - 840Lm 70 Lm/W
    • BR1254 - 1500Lm 80 Lm/W
