Brackenheath LED Panel Tp(B) - IP20, IK02, 120 Degree Angle, 220V-240V

Enhance your commercial lighting with the Brackenheath LED Panel Tp(B)! This modern backlit panel provides consistent, premium illumination suitable for offices, shops, showrooms, and beyond.

Choose from the available options to match your needs:

Code Description Colour Temperature Wattage

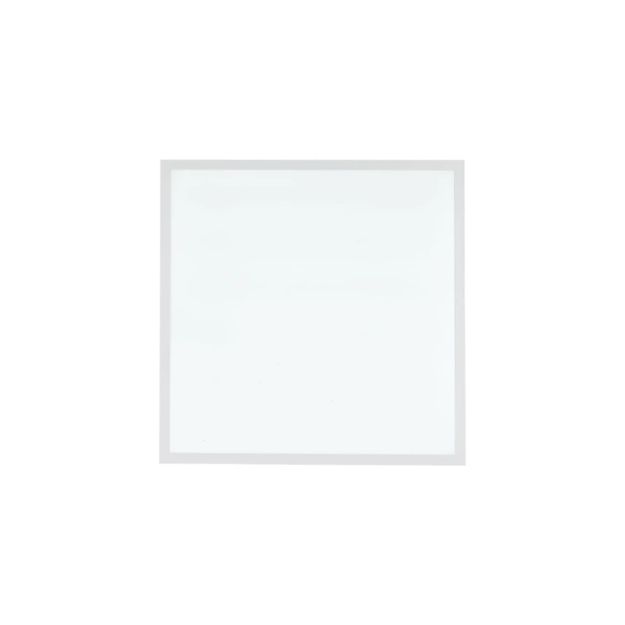

BR1114 LED Panel 3500LM 4000K 32W

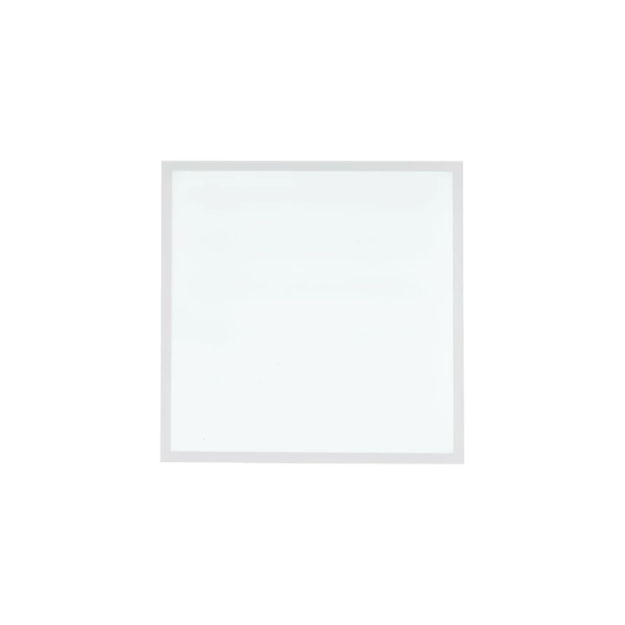

BR1115 LED Panel 3500LM 6500K 32W

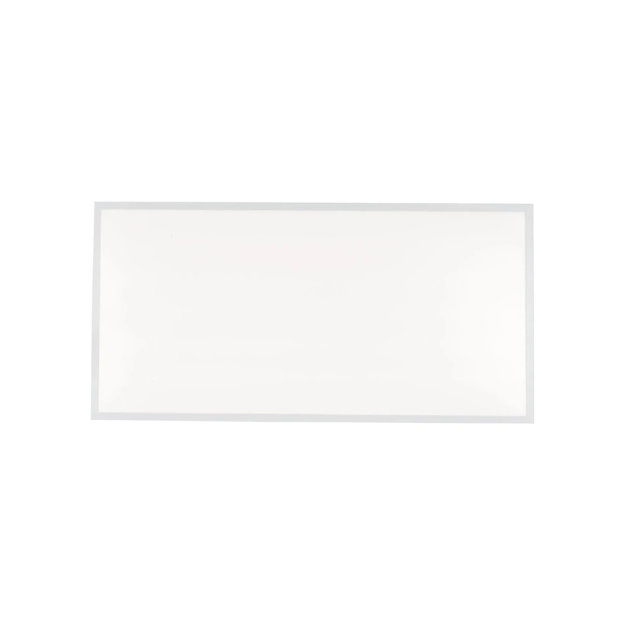

BR1124 LED Panel 4950LM 4000K 45W

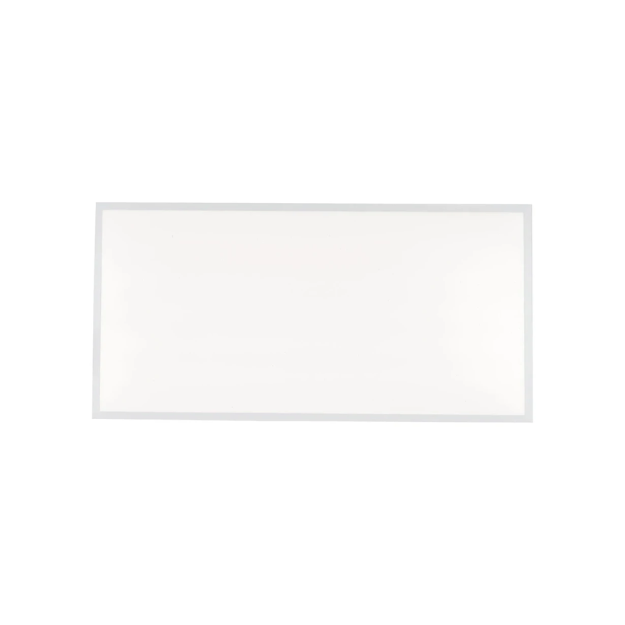

BR1125 LED Panel 4950LM 6000K 45W
BR1191  Remote 3 Hour Emergency Pack - -
BR1131 Surface Mounting Kit for 600x600 Panel - -
BR1132 Surface Mounting Kit for 1200x600 Panel - -
BR1130 Wire Suspension Kit - -


Key Features:

  • TP(b) rated: Meets fire safety regulations for most suspended ceiling applications in UK buildings.
  • Flexible sizes: Choose from 600x600mm or 1200x600mm panels to match your ceiling grid.
  • Cool White or Daylight: Select the ideal colour temperature (4000K or 6000K) for your needs.
  • Backlit design: Provides even, glare-free lighting with high lumen efficacy (up to 110lm/W).
  • ENEC approved driver: Ensures reliable performance and easy loop-in loop-out installation.

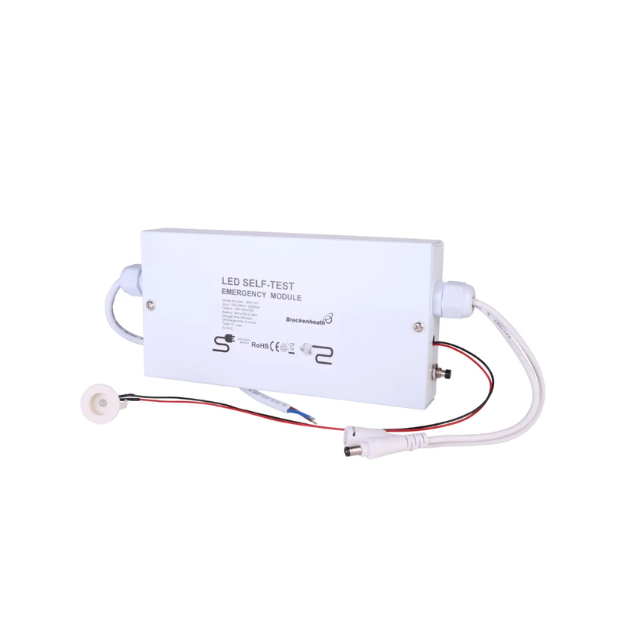

  • Optional emergency pack: Add peace of mind with a plug-in 3-hour emergency pack (BR1191).
  • Mounting versatility: Surface mount or suspend your panels using optional kits (BR1131, BR1132, BR1130).
  • UGR < 21: Compliant with BS EN12464-4 standards for comfortable visual comfort.
  • 5-year guarantee: Enjoy long-lasting performance and quality backed by a strong warranty.


Code Description Dimensions
BR1114 32W LED Panel 4000K 595mm x 595mm x 34mm
BR1115 32W LED Panel 6000K 595mm x 595mm x 34mm
BR1124 45W LED Panel 4000K 1195mm x 595mm x 34mm
BR1125 45W LED Panel Panel 6000K 1195mm x 595mm x 34mm
BR1131 Surface Mounting Kit for 600x600 Panel 605mm x 605mm x 65mm
BR1132 Surface Mounting Kit for 1200x600 Panel 1205mm x 605mm x 65mm



Ideal Application:

  • Offices: Create a bright, productive workspace with uniform illumination that reduces eye strain and enhances focus. Ideal for meetings and focused tasks.
  • Shops and Retail Spaces: Showcase products in their truest colours with high-quality, glare-free lighting that accurately renders product details. Reduce energy costs compared to traditional fluorescent lighting, boosting profitability.
  • Showrooms and Exhibitions: Enhance the visual appeal of products and exhibits with uniform, shadow-free illumination. Ensure comfortable viewing experiences for guests with low-glare lighting that minimizes eye fatigue.
  • Corridors and Public Areas: Provide clear, safe navigation in hospitals, schools, and offices with bright, even lighting. Comply with UK building regulations and safety standards with the TP(b) rating and UGR˂21 compliance.
  • Hospitals and Healthcare Facilities: Support patient care and staff wellbeing with comfortable, flicker-free lighting that promotes relaxation and reduces stress. Enhance visibility for medical procedures and examinations with high-quality illumination.
  • Educational Institutions: Foster focused learning environments with bright, uniform lighting that reduces eye strain and improves concentration. Create adaptable spaces for different activities by adjusting light levels with optional dimming controls (if available in your model).


  • Voltage: 220V-240V
  • Frequency: 50-60Hz
  • Power Factor: ≤0.9
  • Colour Temperature: 4000K and 6000K option
  • Beam Angle: 120 Degrees
  • Construction: Aluminium Body / PC Diffuser
  • IP Rating: IP20
  • IK Rating: IK02
  • Dimmable: No
  • Light Source: Non-replaceable LED
  • Lifespan: 50,000hrs
  • Luminous Flux: 32W - 3500 Lm / 45W - 4950 Lm
  • Luminous Efficacy: 32W - 110 Lm/W and 45W - 110 Lm/W
  • Operating Temperature: -20 Celsius to +40 Celsius
  • Standards: BS EN 60598-1
  • Warranty: 5-Year Guarantee
