FLEXEL Self Regulating Cable for Pipe Freezing Protection - ELSR

Flexel's ELSR Self Regulating 230v heating cables offer a practical and cost-effective solution for preventing water pipes from freezing.

These cables are suitable for use on both metal and plastic pipes, making them versatile for various applications.

Where would you typically install ELSR Pipe Freeze Protection?

To safeguard pipes from freezing, the ELSR cables can be easily secured along the bottom of the pipe using our PFP tape.

For plastic pipes, it is advisable to use our aluminium foil tape, as it enhances heat dispersion. To ensure optimum protection, it is recommended to insulate trace heated pipes.

Common uses include protecting boiler condensate pipes, exposed water pipes in residential settings, farm buildings, stables, garages, lofts, and many other scenarios where pipe freeze protection is necessary.

What's in the box?

We currently supply the ELSR cables in kits based on the most popular length requests.

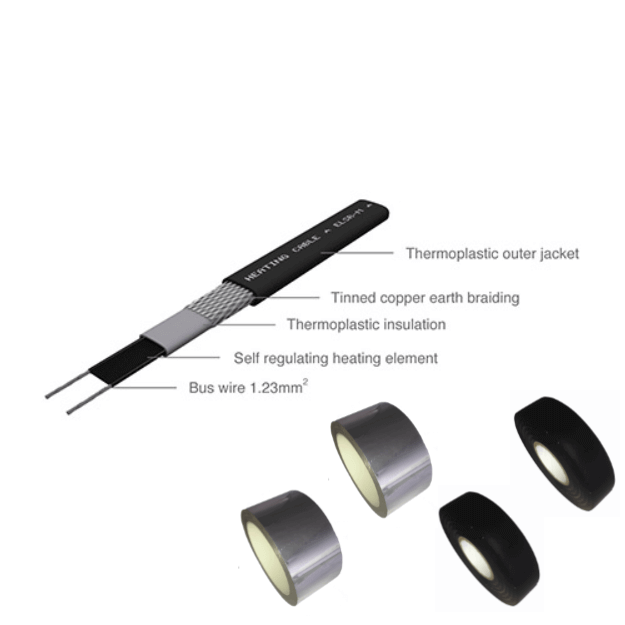

The Kits Contain:

• Fixed length ELSR Cable (2m, 3m, 4m, 6m, 10m, 14m, 21m, 30m, 42m)
• Roll(s) of PFP Fixing Tape (33m x 18mm)
• Roll(s) of Aluminium Tape (45m x 50mm)
• Connection and Termination Kit

If you require a specific cable length for a project, please get in touch for a quotation.

Features and Benefits.

The trace heating cables are designed to eliminate dangerous hot spots, even when cables are in contact or overlapping.

The two power outputs available within the range can be utilized on pipes with diameters ranging from 15mm to 150mm.  This ensures efficient and safe freeze protection for a wide range of pipe sizes.

For each circuit, a connection kit utilizing crimps and heat shrink insulation (kit 4) will be necessary. This kit contains all the essential components to establish a cold tail connection to the trace cable and seal the end, guaranteeing a reliable and efficient solution for pipe freeze protection.

Technical Details.

• With easy termination, ELSR Cable is a time saving, economical solution for the prevention of burst pipes.
• Suitable for both metal and plastic pipe up to 150mm diameter.
• Self-regulating, Two power outputs: 10W/lm and 20W/lm
• Can be cut to length on-site
• Moisture-proof with full-length earth braid
• Outer jacket: TPE-O
• Bus wire: nickel plated copper
• Construction: protective braid and a thermoplastic outer jacket
• Nominal Voltage: 230V
• Bend radius: 25mm (min)


Lead times.

Flexel's ELSR Self Regulating Cable Kits are normally shipped within 1 working day, but as always, if there are any issues we'll keep you up to date.
