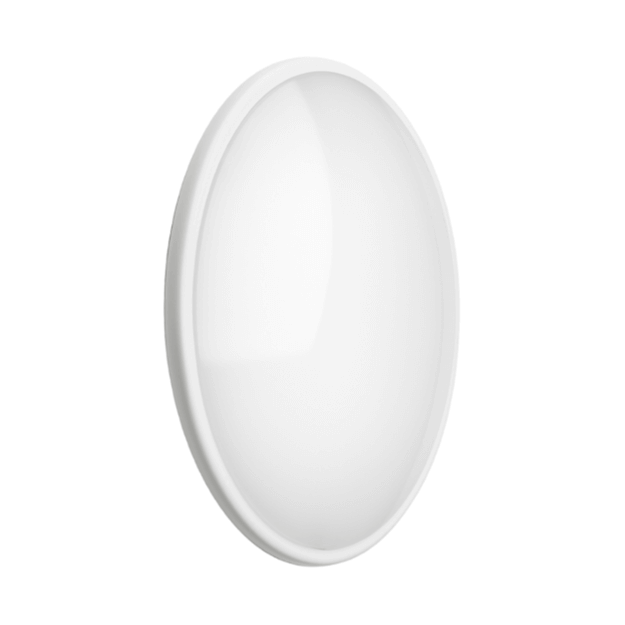

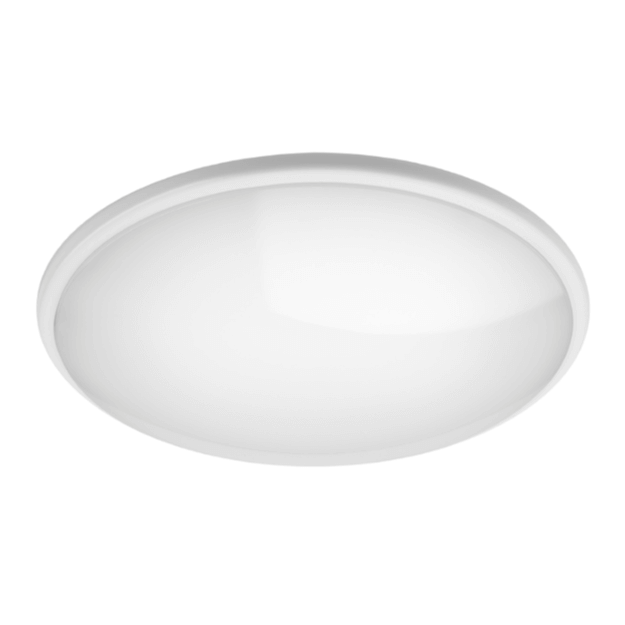

Red Arrow 25W LED Wilson X Slim Bulkhead Opal Diffuser 4000K WLX25

Red Arrow's 25W LED Wilson X fitting (WLX25) is the ideal solution for commercial applications, particularly stairwell lighting and circulation area lighting.

Upgrade your commercial spaces with the efficient 25W LED Wilson X Slimline Bulkhead.

Key Features:

  • 25W LED fitting
  • Opal diffuser for uniform, glare-free light output
  • 40% increase in lumen output (2600lm)
  • Improved emergency lighting output (150lm)

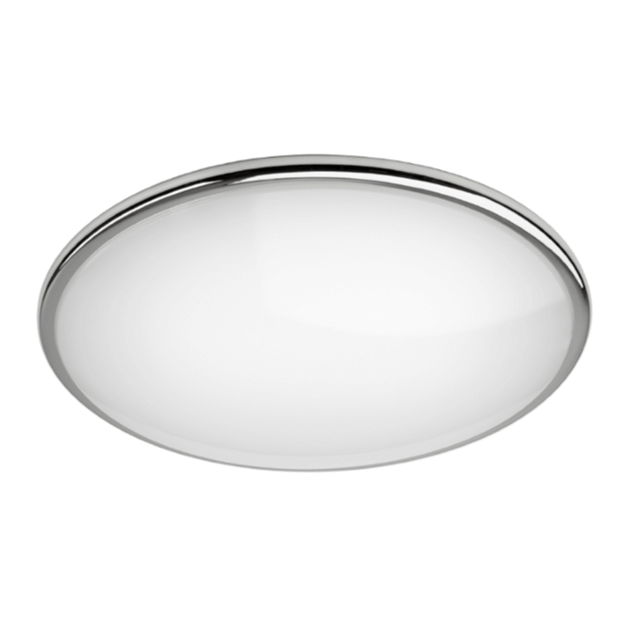

  • Available in white RAL9010 or chrome trim
  • Microwave sensor option
  • 3hr emergency option
  • 3-year guarantee

Tailored for commercial use, this fitting excels in stairwells and circulation areas. The Red Arrow 25W 4000K Round Wilson X fittings (WLX25) stand out with their sleek profile and opal diffuser. Notably, the redesign boasts a substantial 40% increase in lumen output (2600lm) and a heightened emergency lighting output (150lm).

Customize your setup with a choice between the White RAL9010 or Chrome Trim finishes, and consider adding the Microwave Sensor for intelligent lighting control or the 3-hour Emergency Option for enhanced safety.

With a solid 3-year guarantee, these LED fittings are a dependable choice. Elevate your commercial lighting with the Red Arrow 25W LED Wilson X Slim Bulkhead Opal Diffuser 4000K WLX25 – a fusion of efficiency and practicality.

Carriage costs and Leadtime:

For orders surpassing £250, we offer free 1 to 2 working day Express Shipping. Otherwise, for orders under £250, there is a shipping fee of £10 +VAT.

Technical Details:

 Model

Power

(W)

Lumen

Output

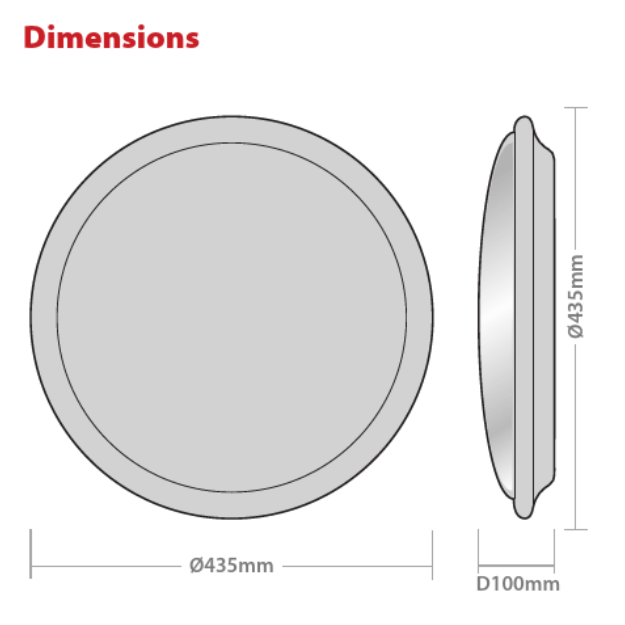

Dimensions

LxWxD mm

WLX25 25w
2600lm 435x100mm
WLX25E 25w 2600lm (150lm EM) 435x100mm
WLX25/MS 25w 2600lm 435x100mm
WLX25E/MS 25w 2600lm (150lm EM) 435x100mm

    Specification:

    • Input Voltage: 220 - 240v
    • Lumen Output: 2600lm (150lm in Emergency Mode)
    • Colour Temp: 4000k
    • 3 Year Guarantee
    • 30,000 Hrs Life Expectancy
    • Working Temperature: -20 degC to 40 degC (0 degC to 40 degC on Emergency Options)
    • Power Factor 0.75 to 0.9
    • CRI >80
    • IP20 Rating
    • IK04 Rating
    • White Trim Finish as standard (Optional Chrome Trim)

    Frequently Asked Questions (FAQs):

    1. What is the Red Arrow 25W LED Wilson X Slim Bulkhead Opal Diffuser 4000K (WLX25)? The WLX25 is a 25W LED commercial lighting fixture designed for applications such as stairwells and circulation areas. It features an opal diffuser for uniform and glare-free light output.

    2. What are the key features of the WLX25 LED fitting? The key features include a 25W LED fitting with a 40% increase in lumen output (2600lm) and improved emergency lighting output (150lm). It's available in white RAL9010 or chrome trim finishes and has options for a microwave sensor and a 3-hour emergency function.

    3. Where is the WLX25 best suited for installation? The WLX25 is tailored for commercial use, specifically in areas like stairwells and circulation areas. Its design is optimized for these applications.

    4. What benefits does the opal diffuser provide? The opal diffuser ensures that the light output is even and free from glare, creating a comfortable illumination in the area.

    5. What colour temperature does the WLX25 have? The WLX25 has a color temperature of 4000K, providing a neutral white light.

    6. Are there different finish options available for the WLX25? Yes, you can choose between the standard white RAL9010 trim finish or an optional chrome trim finish to suit your aesthetic preferences.

    7. What is the significance of the Microwave Sensor option? The Microwave Sensor adds intelligent lighting control to the fixture, allowing it to respond to movement and adjust lighting accordingly, potentially enhancing energy efficiency.

    8. What is the 3-hour Emergency Option? The 3-hour Emergency Option provides extended emergency lighting functionality for enhanced safety during power outages, ensuring continued illumination.

    9. What is the warranty period for the WLX25 LED fixture? The WLX25 comes with a solid 3-year guarantee, offering reliability and peace of mind to customers.

    10. What are the technical specifications of the WLX25? The WLX25 operates at an input voltage of 220 - 240v, has a lumen output of 2600lm (150lm in Emergency Mode), and a colour temperature of 4000K. It has a life expectancy of 30,000 hours, operates within a temperature range of -20°C to 40°C (0°C to 40°C for Emergency Options), and has an IP20 and IK04 rating for protection. The power factor is between 0.75 and 0.9, and the CRI is >80.
