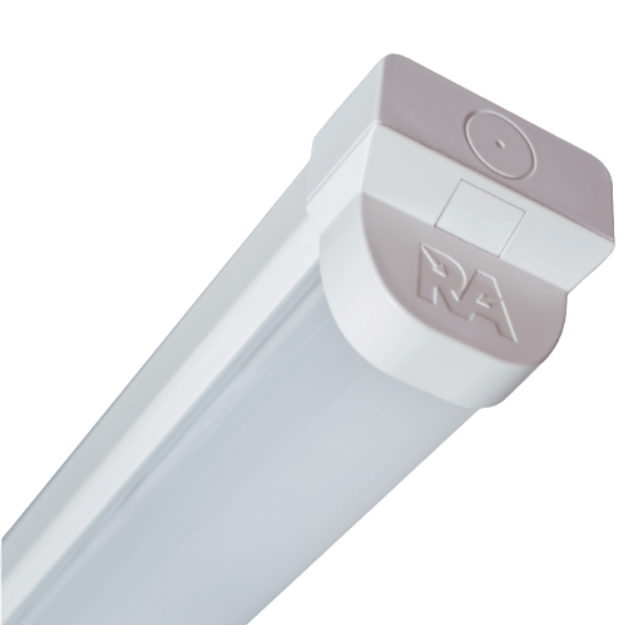

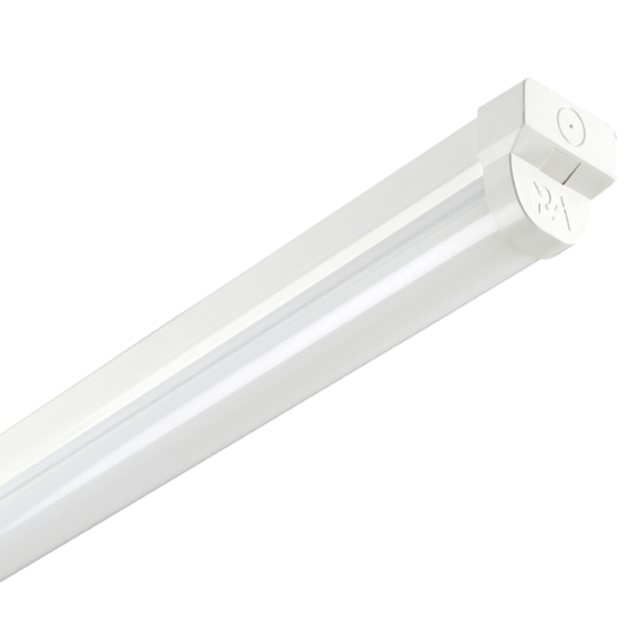

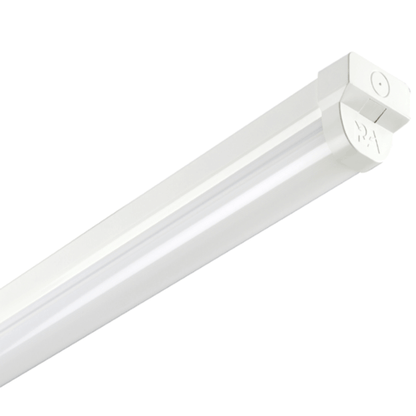

Red Arrow LED SABRE CCT Selectable Batten Fittings

Red Arrow's SABRE CCT Selectable Batten – Lighting Reinvented for Versatility.

Introducing a new luminaire era with SABRE CCT SELECTABLE BATTEN. This batten luminaire not only sets new efficacy standards but also redefines convenience with its selectable CCT feature. Designed for your specific needs, SABRE CCT makes a statement with its sleek design.

Highlighted Features:

  • Sleek and distinctive design that stands out
  • Select your preferred colour temperature: 3000K, 4000K, or 6000K
  • Achieves high efficacy, delivering 130 lm/W
  • Installation is a breeze with BESA fixings and tool-free diffuser removal
  • Choose from standard or integral 3hr emergency versions
  • Microwave sensor conversions available on request.

Quality Materials:

  • Body: Steel
  • Diffuser: Polycarbonate

Customize Your Lighting:

  • Selectable Color Temperature: 3000K/4000K/6000K
  • Crisp White RAL9016 finish
  • CRI: Ra>80
  • LED Lifetime: L70B50 – 50,000 Hours

Engineered for Durability:

  • IP Rating: IP20
  • IK Rating: IK06
  • Operating Temperature: -20°C to 45°C (Emergency: 0°C to 45°C)
  • High Power Factor: >0.9
  • Emergency Battery Type: LiFePO4
  • Electrical Class: Class I

Confidence Assured:

  • Guarantee: 5 Years (Emergency batteries: 2 years)
  • 2 Years On-Site Replacement Warranty

SABRE CCT SELECTABLE BATTEN is your lighting revolution, offering not just illumination but adaptability and style. Discover lighting that's as unique as your needs – versatile, efficient, and purposeful.

Whether it's for kitchens, under cabinet lighting, wardrobes, closets, corridors, or commercial spaces, these luminaires deliver the perfect blend of functionality and style for modern illumination.

There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.

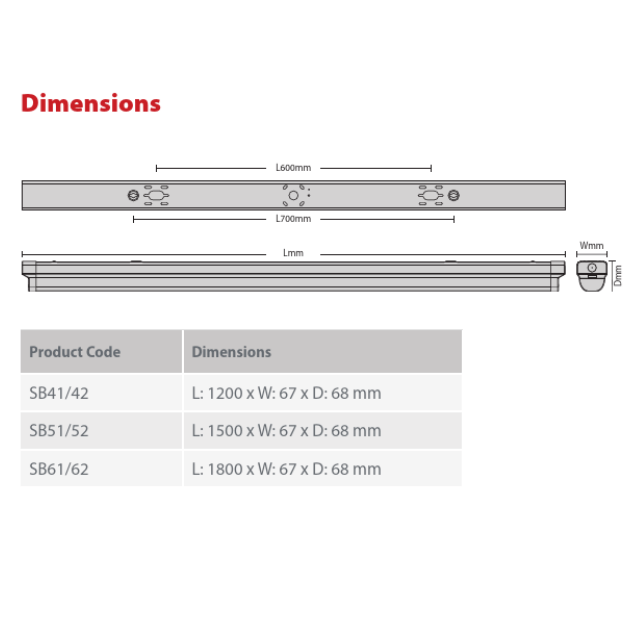

Technical Details: LED SABRE CCT Fittings

 Model

Power

(W)

Lumen

Output

Emergency

Lumen Output

Weight

kg

Dimensions

LxWxD mm

SB41-CCT 20w 2600lm
1.3
L1200xW67xD68
SB41E-CCT 20w 2600lm 260lm 1.55 L1200xW67xD68
SB42-CCT 40w 5200lm
1.3 L1200xW67xD68
SB42E-CCT 40w 5200lm 260lm 1.55 L1200xW67xD68
SB51-CCT 37w 4800lm
1.6 L1500xW67xD68
SB51E-CCT 37w 4800lm 260lm 1.85 L1500xW67xD68
SB52-CCT 55w 7150lm
1.6 L1500xW67xD68
SB52E-CCT 55w 7150lm 260lm 1.85 L1500xW67xD68
SB61-CCT 50w 6500lm
1.95 L1800xW67xD68
SB61E-CCT 50w 6500lm 260lm 3 L1800xW67xD68
SB62-CCT 75w 9750lm
1.95 L1800xW67xD68
SB62E-CCT 75w 9750lm 260lm 3 L1800xW67xD68

    Key Features:

    • Body Material: Steel
    • Diffuser Material: Polycarbonate
    • Colour Temp: Selectable, 3000K, 4000K or 6000K
    • Colour Finish: White RAL 9016
    • CRI: Ra>80
    • LED Lifetime: L70B50 50,000 Hours
    • IP Rating: IP20
    • IK Rating: IK06
    • Working Temperature: -20 degC to 45 degC (Emergency 0 degC to 45 degC)
    • Power Factor: >0.9
    • Emergency Battery Type: LiFePO4
    • Electrical Class: Class 1, Earth connection required.
    • Guarantee: 5 Years
    • On Site Replacement Warranty: 2 Year
    • Input Voltage: 230v
