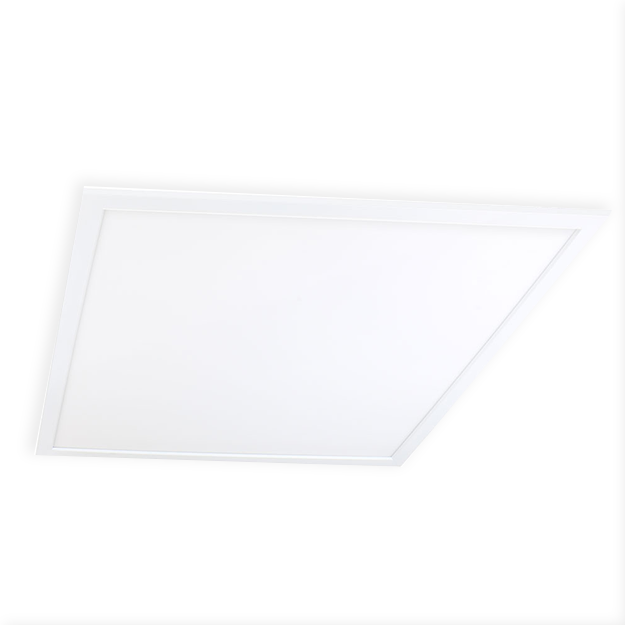

The Red Arrow Razor Edge-Lit LED Panels (RZR), features a unique patent-protected structure that accommodates heat expansion without compromising LED integrity. These ultra-thin panels, measuring only 10mm deep, deliver even illumination and are available in various sizes to suit your needs.
Explore advanced LED lighting solutions with RAZOR EDGE-LIT TP(b) PANELS, known for efficient heat dissipation and versatile functionality. Our LED panels are available in various sizes, wattages, and colour temperatures.
| Product Code |
Size |
Wattage |
Colour Temperature |
Lumen Output |
| RZR6636-30 |
595x595mm |
36W |
3000K |
3600 lm |
| RZR6636-40 |
595x595mm |
36W |
4000K |
3600 lm |
| RZR6636-60 |
595x595mm |
36W |
6000K |
3600 lm |
| RZR12336-30 |
1195x295mm |
36W |
3000K |
3600 lm |
| RZR12336-40 |
1195x295mm |
36W |
4000K |
3600 lm |
| RZR12336-60 |
1195x295mm |
36W |
6000K |
3600 lm |
| RZR12650-30 |
1195x595mm |
50W |
3000K |
6000 lm |
| RZR12650-40 |
1195x595mm |
50W |
4000K |
6000 lm |
| RZR12650-60 |
1195x595mm |
50W |
6000K |
6000 lm |
| RZR6326-30 |
595x295mm |
26W |
3000K |
2600 lm |
| RZR6326-40 |
595x295mm |
26W |
4000K |
2600 lm |
| RZR6326-60 |
595x295mm |
26W |
6000K |
2600 lm |
Key Features:
-
Patented Heat-Resistant Design: The RAZOR panels' innovative design seamlessly manages heat dissipation, preventing LED damage and extending the panel's lifespan.
-
Exceptional Efficiency: Achieve remarkable energy savings with an efficacy of up to 120lm/W, significantly reducing electricity consumption and lowering operating costs.
-
Versatile Applications: Available in a range of sizes – 300 x 1200mm, 600 x 1200mm, 600 x 600mm, and 300 x 600mm – the RAZOR panels cater to a wide spectrum of applications, from offices and classrooms to commercial spaces and industrial settings.
-
Uniform Illumination: The TP(b) diffuser ensures consistent and evenly distributed light, eliminating glare and creating a comfortable visual environment.
-
Dimmable Options: Enhance control over your lighting with optional dimmable drivers, enabling you to adjust brightness to suit your specific needs.
-
Emergency Conversion Kits: Elevate safety with optional emergency conversion kits, ensuring uninterrupted illumination during power outages.
Specification
-
Material: Body: Aluminium
-
Light Guide: PMMA
-
Diffuser: TP(b) PS
-
Colour Temperature: 3000K / 4000K / 6000K
-
Colour Finish: RAL9016 White
-
CRI: Ra>80
-
LED Lifetime: L80B50 82,000 Hrs
-
IP Rating: IP20
-
IK Rating: IK03
-
Working Temperature: -20 Celsius to 40 Celsius
-
Power Factor: 0.9
-
Electrical Class: Class II
-

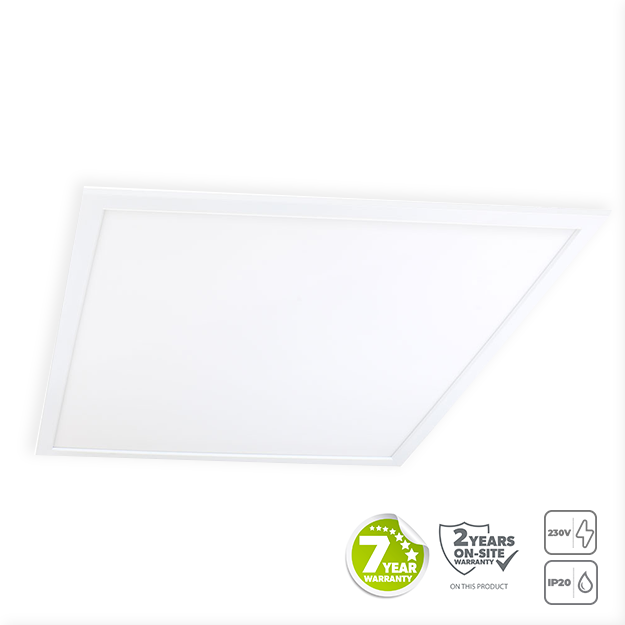

Guarantee: 7 Years
-
On-Site Warranty: 2 Years
Unparalleled Benefits:
-
Extended LED Lifespan: The patented heat dissipation design ensures long-lasting performance and reduces the need for frequent replacements.
-
Aesthetic Appeal: The slim profile and sleek design complement various interior styles and add a touch of elegance to any space.
-
Environmentally Friendly: The exceptional energy efficiency contributes to a smaller carbon footprint and reduces your environmental impact.
Ideal Applications:
- Commercial Offices
- Retail Spaces
- Educational Institutions
- Healthcare Facilities
- Residential Spaces
