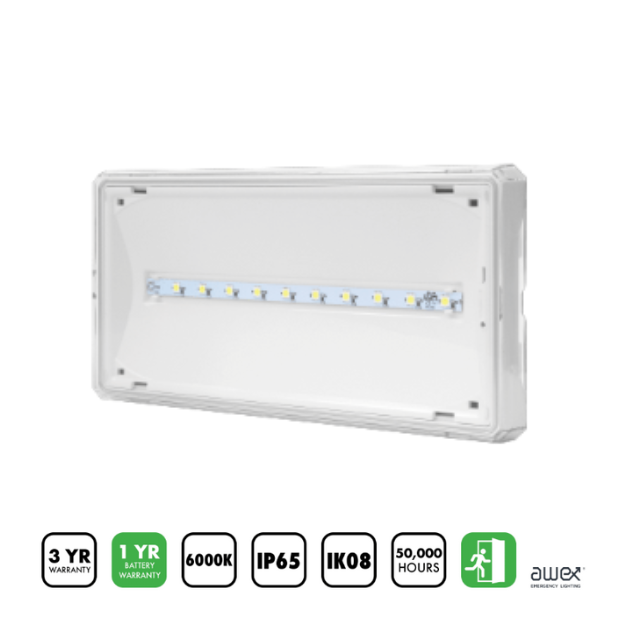

• BLE Glen LED Emergency Bulkhead Product Warranty

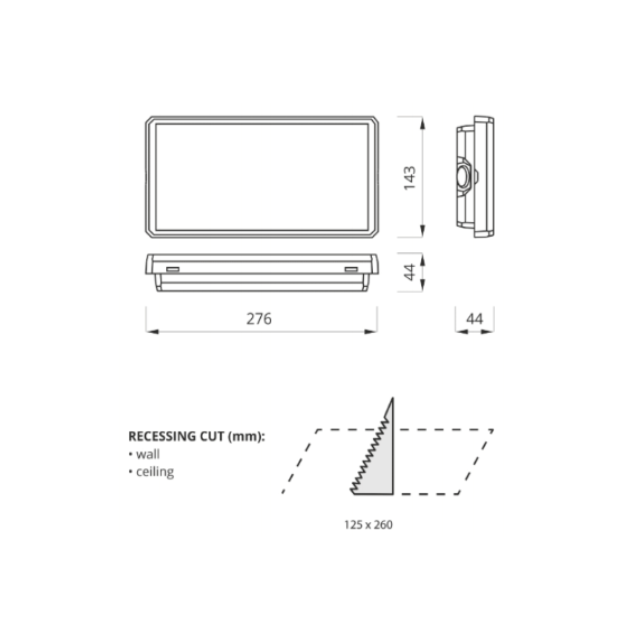

  • BLE Glen LED Emergency Bulkhead Product Dimension

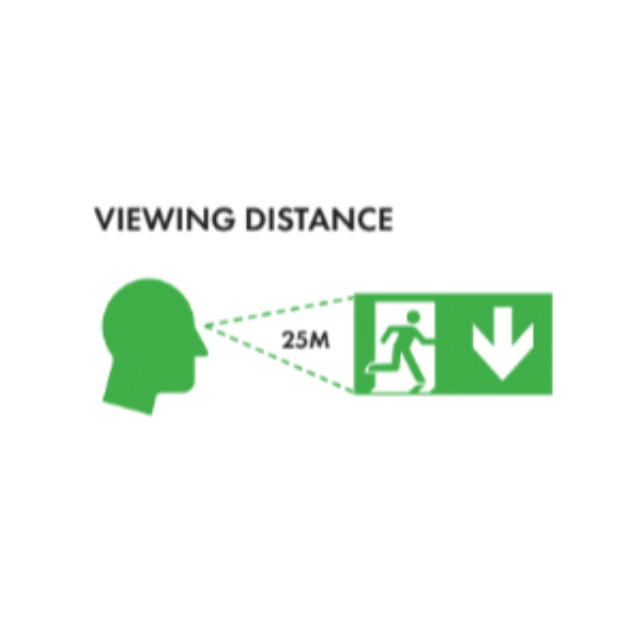

  • BLE Glen LED Emergency Bulkhead Viewing Distance

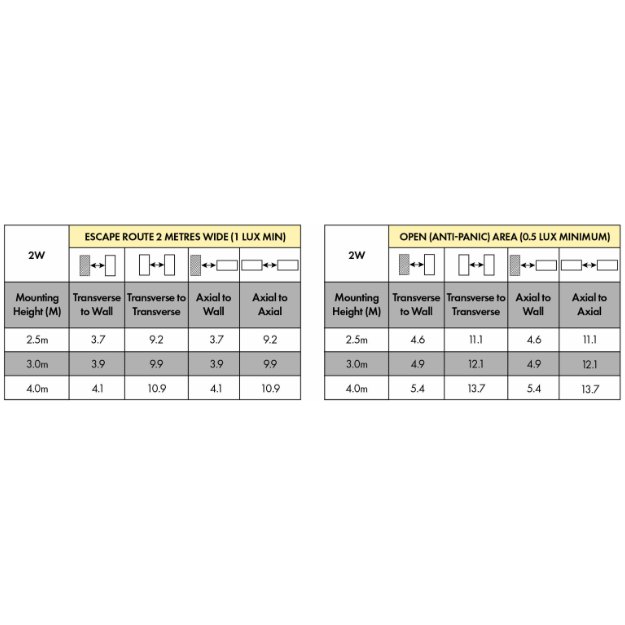

  • BLE Glen LED Emergency Bulkhead (110502) Spacing Table

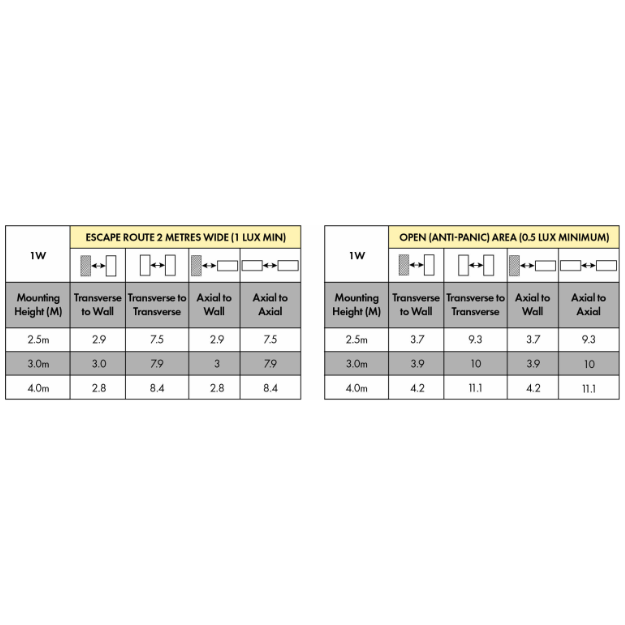

  • BLE Glen LED Emergency Bulkhead (EL-110503-24, EL-110503-50, EL-110503-230) Spacing Table

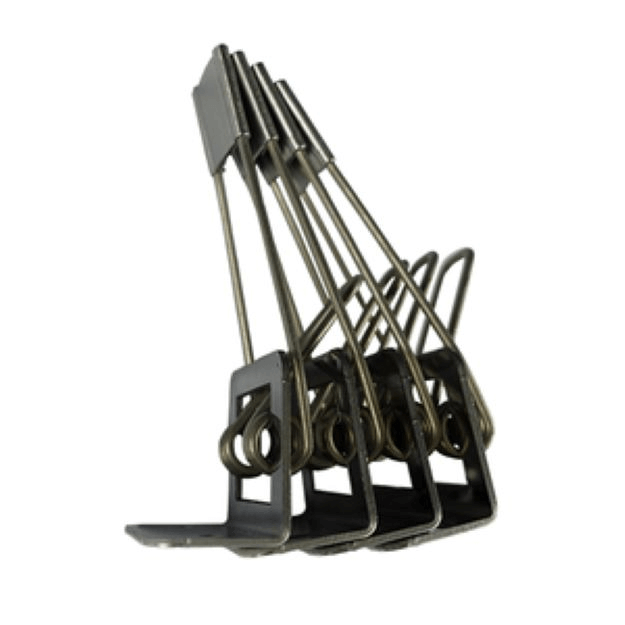

  • BLE Glen LED Emergency Bulkhead Product Image Close-up
1 6

BLE Lighting

BLE Glen LED Emergency Bulkhead IP65 Maintained / CBU Options

BLE Glen LED Emergency Bulkhead IP65 Maintained / CBU Options

£52.00
£52.00
Sale Sold out
Taxes included.
Model

LED emergency bulkhead with maintained and non-maintained operation, designed for safe evacuation lighting in commercial and public buildings.

Available in mains and central battery system (CBU) versions with pictogram set included (EL-110501–EL-110505).

BLE Glen LED Emergency Bulkhead IP65

The BLE Glen emergency bulkhead provides reliable emergency lighting with a modern, low-profile design. Suitable for a wide range of applications, it supports both maintained and non-maintained operation and is available in multiple voltage configurations.

Each unit is supplied with a pictogram set and offers up to 3 hours emergency duration, ensuring compliance with safety lighting requirements.

Available Options

Code Description Wattage Voltage
EL-110501 Emergency Bulkhead Maintained / Non-Maintained 1W 230V
EL-110502 Emergency Bulkhead Maintained / Non-Maintained 2W 230V
EL-110503-110 CBU Slave Emergency Bulkhead 1W 110V CBU
EL-110503-230 CBU Slave Emergency Bulkhead 1W 230V CBU
EL-110503-24 CBU Slave Emergency Bulkhead 1W 24V CBU
EL-110503-50 CBU Slave Emergency Bulkhead 1W 50V CBU

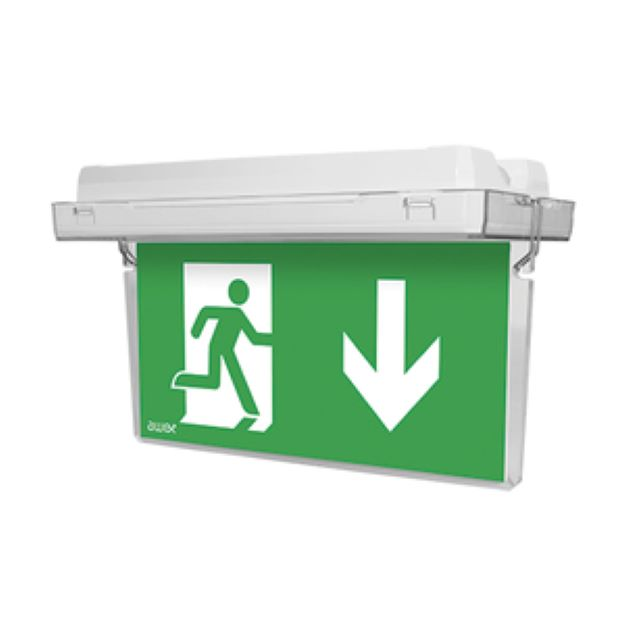

EL-110504 Drop Legend Kit - -

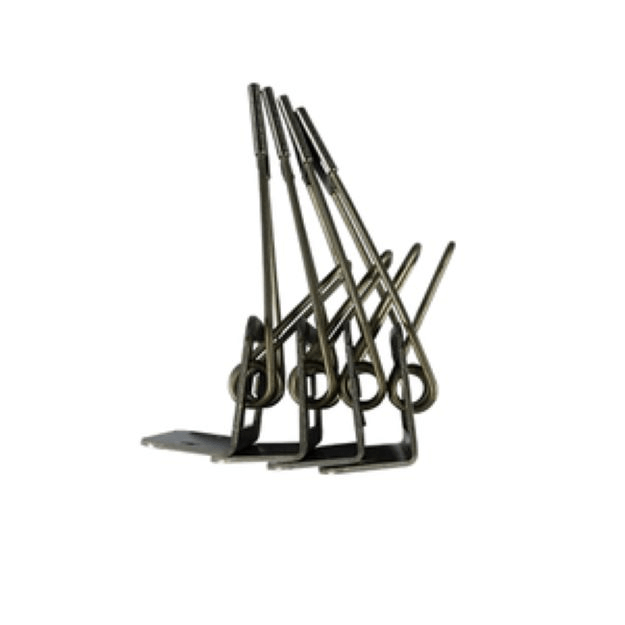

EL-110505 Recessing Kit - -

Key Features

  • Maintained & Non-Maintained: Flexible operation depending on installation requirements.
  • CBU Compatible: Versions available for central battery systems.
  • 3-Hour Emergency Duration: Reliable backup lighting in power failure.
  • IP65 Rated: Suitable for indoor and outdoor use.
  • LED Technology: Low energy consumption with long lifespan.
  • Pictogram Set Included: Ready for exit signage applications.
  • Durable Construction: Polycarbonate housing for impact resistance.
  • Surface Mount Installation: Simple and versatile fitting.
  • Optional Accessories: Recessing kit and drop legend available.
  • 3-Year Warranty: Reliable long-term performance.

Ideal Applications

  • Commercial Buildings: Offices, retail and public spaces.
  • Education & Healthcare: Schools, hospitals and care facilities.
  • Industrial Units: Warehouses and factories.
  • Hospitality: Hotels, restaurants and leisure venues.
  • Public Buildings: Corridors, stairwells and escape routes.

Specifications

  • Wattage: 1W / 2W
  • Voltage: 230V and CBU options (24V / 50V / 110V / 230V)
  • Emergency Duration: 3 hours
  • Battery: NiCd
  • Lumen Output: 175 lm
  • Colour Temperature: 6000K
  • IP Rating: IP65
  • IK Rating: IK08
  • Material: Polycarbonate
  • Mounting: Surface
  • Viewing Distance: 25m
  • Standards: BS EN ISO7010 compliant
  • Operating Temperature: 0°C to +40°C

Delivery Information

UK mainland delivery is typically 1–2 working days from order confirmation.
