DETA 1142 Carbon Dioxide Monitor - CO2 Monitoring for Indoor Air Quality Control

£150 +VAT

The DETA CO2 Monitor (1142) is a mains powered Carbon Dioxide Monitor for Indoor Air Quality.

The Deta 1142 is a high-quality carbon dioxide monitor that is designed to accurately measure and display CO2 levels in indoor spaces. This mains-powered monitor is an essential tool for maintaining optimal indoor air quality and ensuring a healthy environment for the occupants of a building.

Compliant with the Scottish Technical Handbook, the DETA carbon dioxide monitor can be used in a variety of settings, including passive homes, offices, schools, and commercial buildings, to monitor CO2 levels and identify when ventilation and HVAC systems need to be adjusted.

With its advanced technology and easy-to-use interface, the Deta 1142 is an ideal choice for building managers and homeowners who are looking for a reliable and effective CO2 monitor.

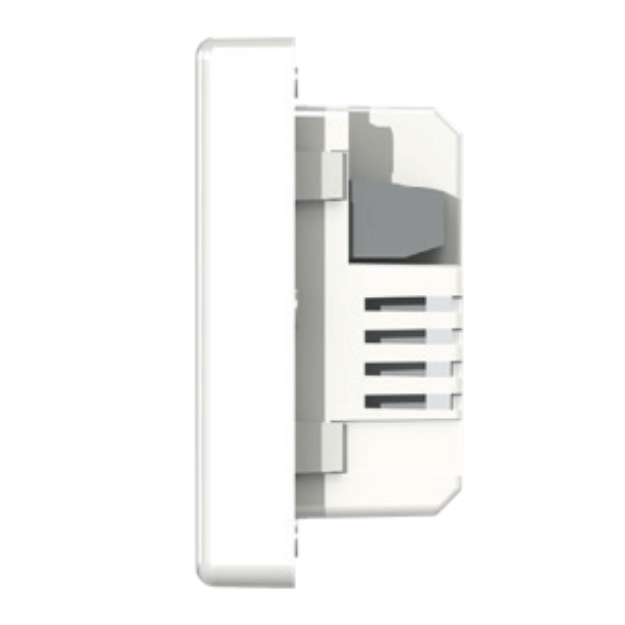

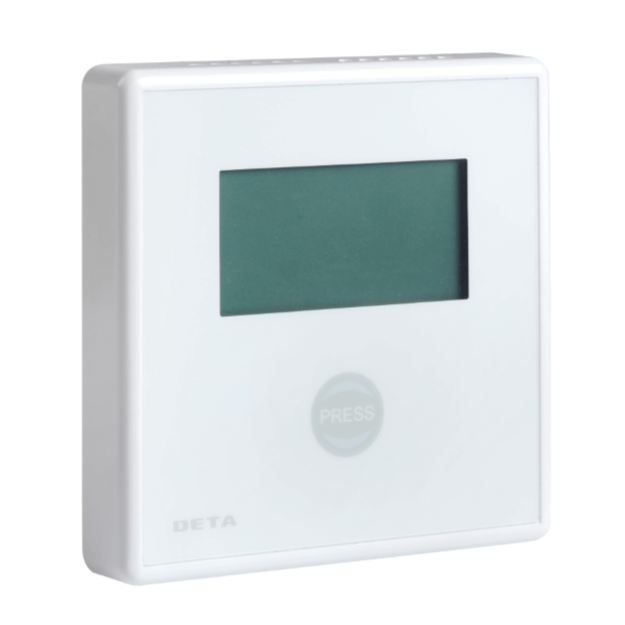

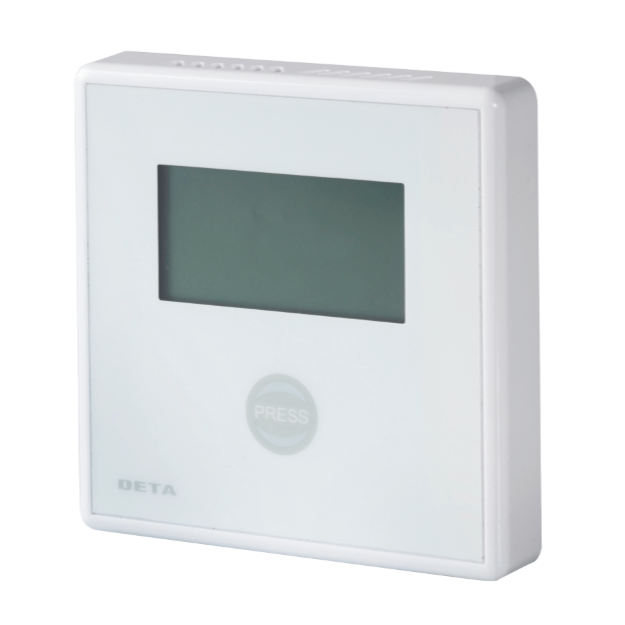

Cleverly manufactured to match the dimensions of a standard light switch, protruding only 15mm, the DETA 1142 blends in nicely with decor of any room. The monitor features a user-friendly display that shows real-time CO2 levels and Temperature.

Deta 1142 Carbon Dioxide Monitor Key Features.

  • Input Voltage: 240v Mains Powered
  • Display Features: Live CO2 Level (PPM) and Temperature (degC) readouts.
  • Monitoring Log: Monitors average CO2 Levels for the previous 8hrs (average) and 24hrs (average and peak) periods.
  • Visual Alarm Notification: The display uses a traffic light system to give indication CO2 Levels and whether further ventilation is required.

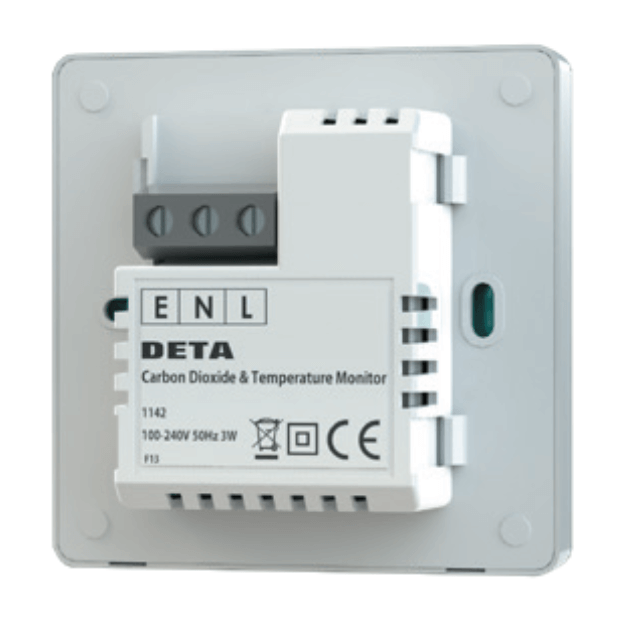

  • Installation: 28mm rear projection, suitable for installation within a 1 gang flush mounting back box at least 35mm deep.
  • Dimensions: 86mm wide x 86mm high x 28mm rear projection, 15mm front projection.
  • Guarantee: 2 Years
  • Compliance: LVD, EMC, RoHS

Why do I need a CO2 Monitor?

The modern day home is becoming increasingly airtight as housebuilders strive to improve energy efficiency within the home, driven by building regulation requirements. You require a CO2 monitor to ensure the air quality inside your home or building is safe and healthy for the occupants.

Carbon dioxide (CO2) is a colourless, odourless gas that is produced by the human body and by the burning of fossil fuels.

Elevated levels of CO2 in indoor spaces can be an indication of poor ventilation and a lack of fresh air. Prolonged exposure to high levels of CO2 can have negative effects on human health and well-being, such as headaches, fatigue, and difficulty concentrating.

How does the DETA 1142 (CO2) Monitor work?

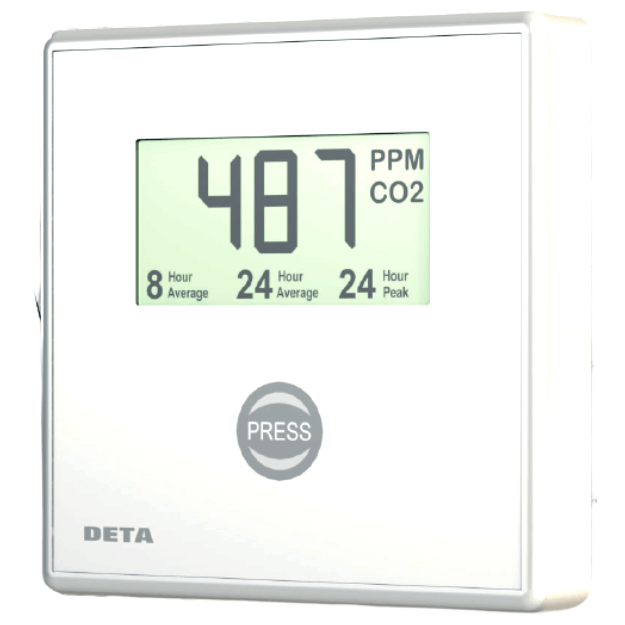

The DETA 1142 comes with a digital readout, alternating between live CO2 levels and temperature (degC) with CO2 Levels logged over a 24 hour period.

Readings for 8 hour and 24 hour average as well as 24 hour peak are logged along with traffic light style indicators giving occupants a concise indication of CO2 levels and whether to take further action to reduce levels of CO2 within the home.

The DETA 1142 complies with the Scottish Technical Handbook October 2015 requirements for CO2 monitoring within domestic dwellings. CE Approved.

Where should I install the CO2 Monitor?

Easily installed within a 35mm flush backbox with two part assembly. The monitor head is easily clipped onto the mounting plate.

With no setup required, this mains powered CO2 Carbon Dioxide Monitor is generally fitted in the Master Bedroom of airtight, energy efficient homes.

What are typical CO2 levels?

  • 250-350ppm Normal background level in outdoor ambient air.
  • 350-1,000ppm Concentrations typical of occupied indoor spaces with good air exchange.
  • 1,000-2,000ppm Complaints of drowsiness and poor air.
  • 2,000-5,000 ppm Stale, stuffy air. Headaches, sleepiness and stagnant, poor concentration, loss of attention, and slight nausea may also be present

DETA 1142 Top 10 Frequently Asked Questions (FAQs)

1. What is the DETA 1142 Carbon Dioxide monitor?

The DETA 1142 Carbon Dioxide monitor is a mains-powered CO2 monitor that accurately measures and displays carbon dioxide levels in indoor air. It is designed to help you improve the air quality in your home or workplace by providing you with real-time feedback on CO2 levels.

2. What are the benefits of using a CO2 monitor?

There are many benefits to using a CO2 monitor, including:

  • Improved air quality: CO2 monitors can help you identify areas where the air quality is poor and take steps to improve it. This can help to reduce respiratory problems, headaches, and fatigue.
  • Increased productivity: Studies have shown that people are more productive in environments with good air quality. By improving the air quality in your home or workplace, you can help your employees be more productive.
  • Reduced energy costs: CO2 monitors can help you identify areas where the ventilation system is not working properly. This can help you save money on energy costs by reducing the amount of energy that is wasted on ventilating areas with good air quality.

3. How does the DETA 1142 CO2 monitor work?

The DETA 1142 CO2 monitor uses an infrared sensor to measure carbon dioxide levels in the air. The sensor is calibrated to provide accurate readings within a range of 0 to 9999 ppm. The monitor also has a traffic light system that indicates the CO2 levels and whether improved ventilation is required.

4. What are the accuracy and precision specifications of the DETA 1142 CO2 monitor?

The DETA 1142 CO2 monitor has an accuracy of ±40 ppm and a precision of ±20 ppm. This means that the readings from the monitor are within ±40 ppm of the actual CO2 levels in the air and within ±20 ppm of each other.

5. What are the CO2 alarm thresholds for the DETA 1142 CO2 monitor?

The DETA 1142 CO2 monitor has three alarm thresholds:

  • Green: CO2 levels are good (0 to 600 ppm)
  • Amber: CO2 levels are moderate (601 to 1000 ppm)
  • Red: CO2 levels are high (1001 to 9999 ppm)

The alarm thresholds can be customized to meet your specific needs.

6. How do I install the DETA 1142 CO2 monitor?

The DETA 1142 CO2 monitor is easy to install. Simply fit the mounting plate to the wall using the screws provided. Then, snap the monitor head onto the mounting plate. The monitor is powered by mains electricity, so it will need to be hard wired.

7. How do I maintain the DETA 1142 CO2 monitor?

The DETA 1142 CO2 monitor is low-maintenance. You should clean the monitor head with a damp cloth every few months.

8. What are the troubleshooting tips for the DETA 1142 CO2 monitor?

If you are having problems with the DETA 1142 CO2 monitor, here are a few troubleshooting tips:

  • Make sure that the monitor is properly installed and that it is connected to a power outlet.
  • Clean the monitor head with a damp cloth.
  • Try resetting the monitor by pressing and holding the reset button for 10 seconds.
  • If you are still having problems, contact the manufacturer for assistance.

9. What is the warranty for the DETA 1142 CO2 monitor?

The DETA 1142 CO2 monitor comes with a two-year warranty. This warranty covers defects in materials and workmanship.

10. Where can I buy the DETA 1142 CO2 monitor?

You can buy the DETA 1142 CO2 monitor on our website via this link as well as various other outlets.
