25W LED Wilson X Fitting Opal Diffuser 4000K - Red Arrow WLX25

25W LED Wilson X Fitting Opal Diffuser 4000K - Red Arrow WLX25


25w LED Wilson X fitting is ideal for commercial applications,  particularly stairwell light and circulation areas.

The 25w 4000K Round Wilson X fittings (WLX25) from Red Arrow have a shallow profile and opal diffuser. The new design has a 40% increase in lumen output (2600lm) and improved emergency lighting output (150lm).

The fitting is available with White RAL9010 or Chrome Trim, Microwave Sensor and 3hr Emergency Option.

These great quality LED fittings are supported by a 3 year guarantee.

There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.

Technical Details:







LxWxD mm

WLX25 25w

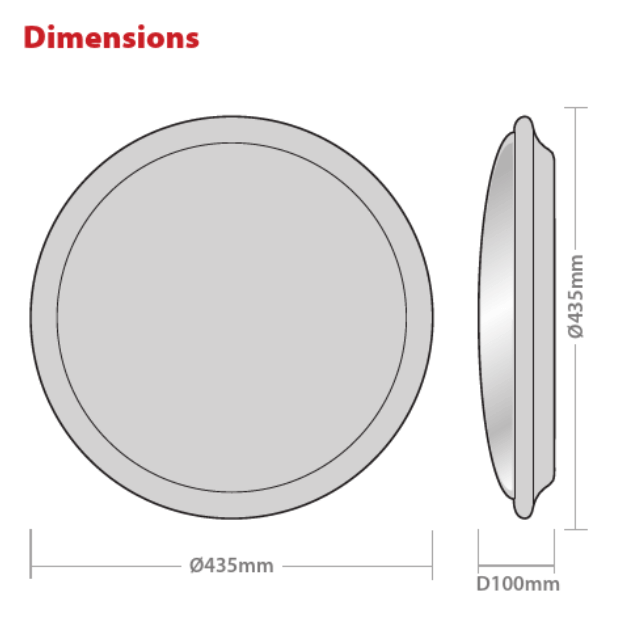

2600lm 435x100mm
WLX25E 25w 2600lm (150lm EM) 435x100mm
WLX25/MS 25w 2600lm 435x100mm
WLX25E/MS 25w 2600lm (150lm EM) 435x100mm

    Key Features:

    • Input Voltage: 220 - 240v
    • Lumen Output: 2600lm (150lm in Emergency Mode)
    • Colour Temp: 4000k
    • 3 Year Guarantee
    • 30,000 Hrs Life Expectancy
    • Working Temperature: -20 degC to 40 degC (0 degC to 40 degC on Emergency Options)
    • Power Factor 0.75 to 0.9
    • CRI >80
    • IP20 Rating
    • IK04 Rating
    • White Trim Finish as standard (Optional Chrome Trim)
