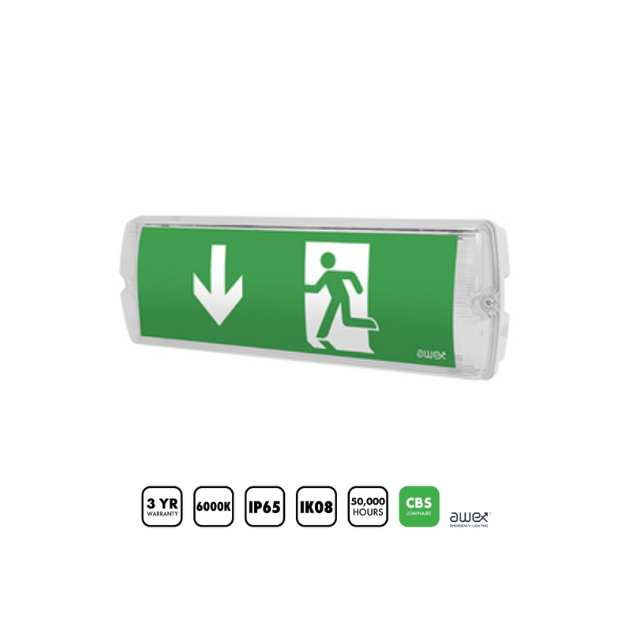

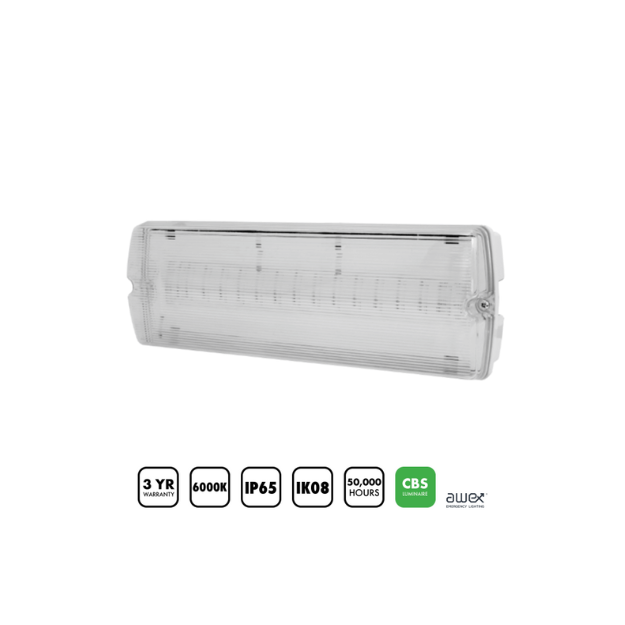

BLE Crookes LED Emergency Slave Bulkhead (EL-110301) is a timeless design seamlessly integrates into existing Central Battery infrastructure while delivering modern LED performance and reliable safety.
Upgrade your existing emergency lighting CBU system with the BLE Crookes LED Slave Bulkhead.
| Code |
Description |
Voltage |

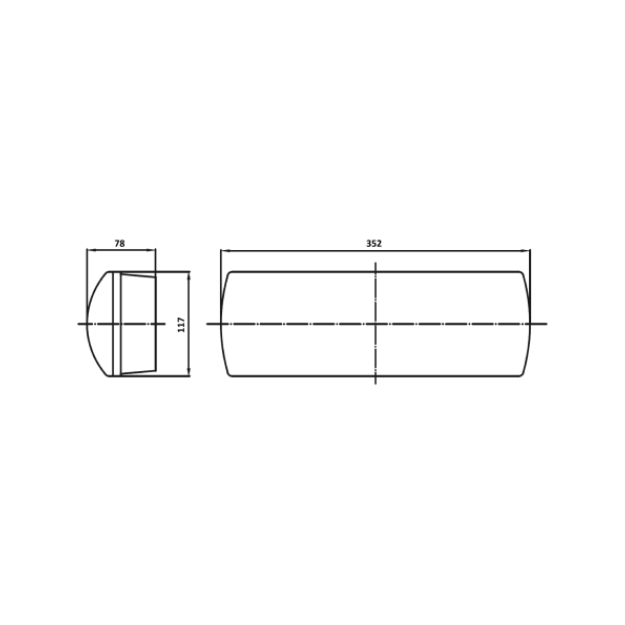

Dimension
|
EL-110301-110
|
Emergency Bulkhead 1W IP65 Slave Supplied with Exit Sign Pictogram |
110V |
352mm x 117mm x 78mm |
EL-110301-230
|
Emergency Bulkhead 1W IP65 Slave Supplied with Exit Sign Pictogram |
230V |
352mm x 117mm x 78mm
|
EL-110301-24
|
Emergency Bulkhead 1W IP65 Slave Supplied with Exit Sign Pictogram |
24V |
352mm x 117mm x 78mm
|
EL-110301-50
|
Emergency Bulkhead 1W IP65 Slave Supplied with Exit Sign Pictogram |
50V |
352mm x 117mm x 78mm
|
Key Features:
-
Classic design: Blends seamlessly with existing architecture, ideal for retrofit applications.
-
Durable polycarbonate construction: Withstands harsh weather and everyday wear and tear, with an IK08 impact rating.
-
IP65 weatherproof: Resists dust, water jets, and even low-pressure water streams.
-
Bright 6000K cool white LEDs: Provides clear illumination and enhances alertness during emergencies.
-
Prismatic diffuser with Fresnel Optics: Distributes light evenly, reduces glare, and improves visibility.
-

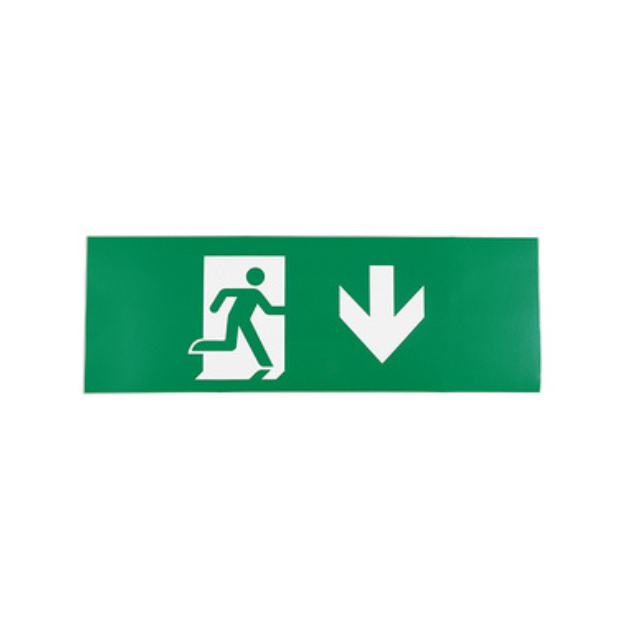

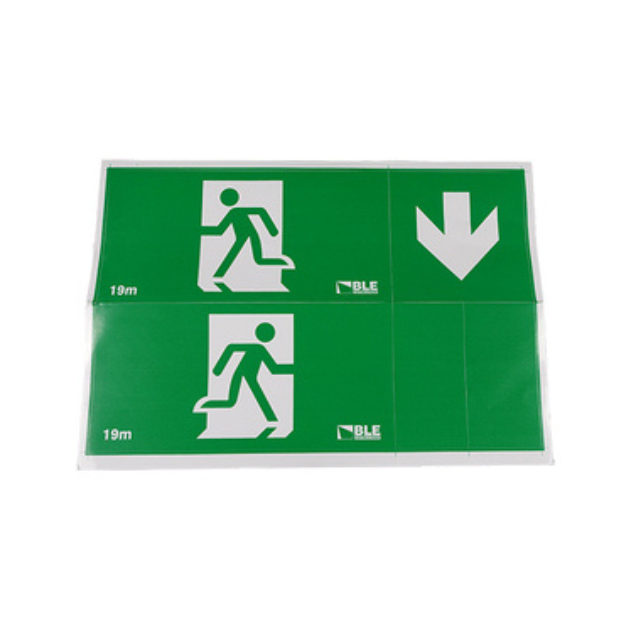

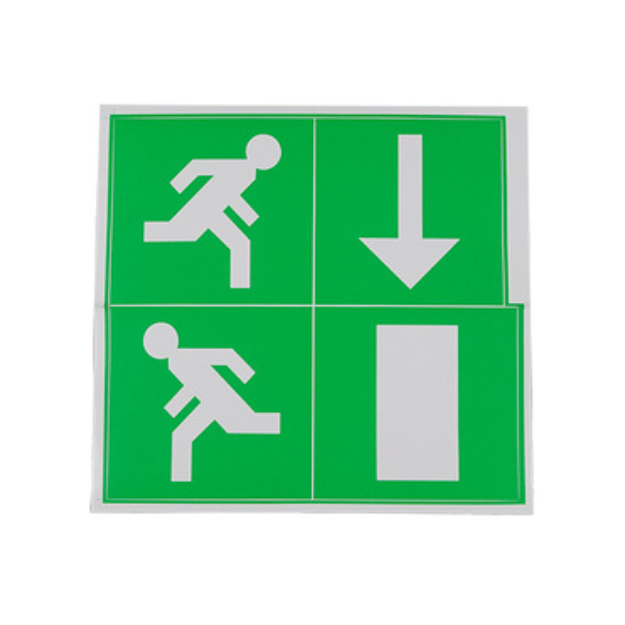

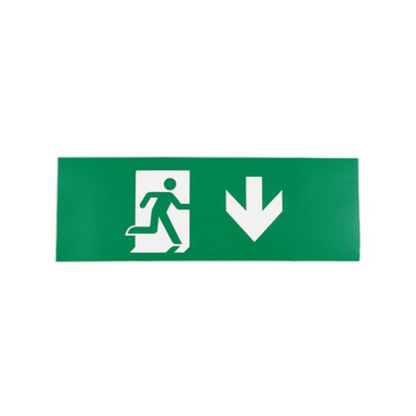

Supplied with BS EN ISO7010 compliant exit legend sticker: Ensures clear and recognizable exit signage.
-
Central battery system compatible: Connects easily to existing emergency power systems.
-
Low energy consumption: LED technology minimizes operating costs.
-
European manufacture: High-quality construction for lasting performance.
- Compliant with UK safety standards (BS EN 60598-1).
- 3-year warranty on both fitting and LED module for reliable service.
Ideal Application:
-
Central Battery Systems: Designed for centralized emergency lighting. Perfect for use with central battery systems.
-
Retrofit-Friendly: Traditional design ideal for retrofit projects. Efficient prismatic diffuser with Fresnel Optics.
-
Versatile Use: Suitable for commercial and industrial spaces. Robust IK08 construction for durability.
-
Energy-Efficient: Low power consumption for sustainability. Extended 50,000-hour lifespan.
-
European Quality: Precision crafted in European facilities. Meets high-quality standards.
-
Safety and Compliance: Exit legend sticker in BS EN ISO7010 Format. Manufactured in accordance with BS EN 60598-1.
-
Environmentally Friendly: Operates in temperatures of 0 Celsius to +40 Celsius. WEEE symbol compliant for environmental responsibility.
Specification:
-
Light Source: LED
-
Light Source Replaceable: No
-
Colour/Finish: White
-
Material: Polycarbonate
-
Diffuser Type: Prismatic
-
Diffuser Material: Polycarbonate
-
IP Rating: IP65
-
IK Rating: IK08
-
Mounting Type: Surface
-
Warranty: 3 Years
-
Life Time Hours: 50000
-
Input Voltage: 220-240V
-
Input Frequency: 50Hz
-
Classification: Class II
-
Power Factor: 0.55
-
Operating Temperature: 0 Celsius to +40 Celsius
