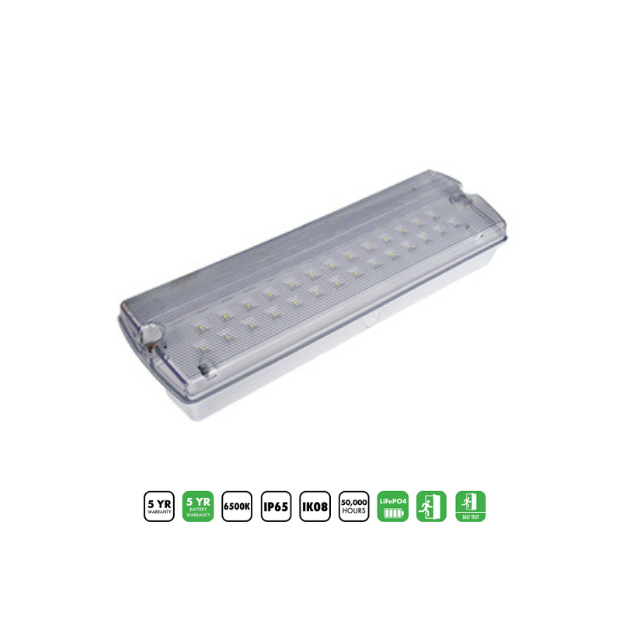

BLE Crooksmoor LED Emergency Bulkhead with Self Test - IP65, IK08, EL-110250

BLE Crooksmoor LED Emergency Bulkhead (EL-110250) with Self Test is a classic beauty packed with energy-saving features and effortless maintenance.

This versatile fitting seamlessly blends with any décor while ensuring reliable illumination even in power outages.

Code Description
Dimension
EL-110250

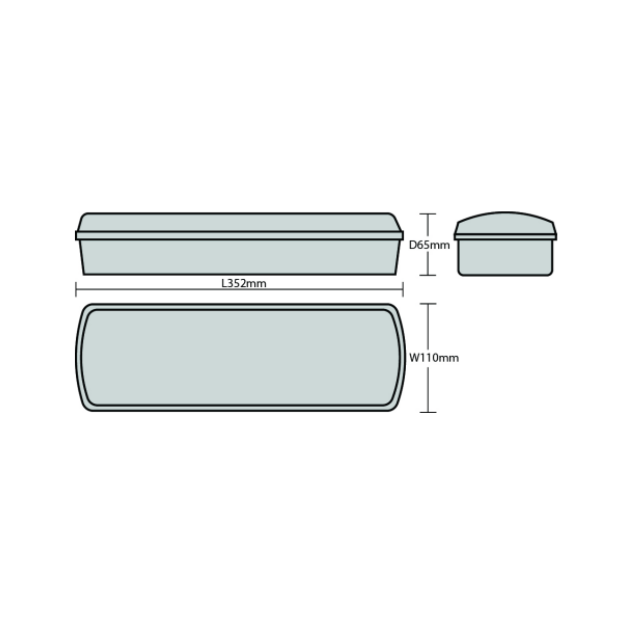

Emergency Bulkhead Maintained/Non-maintained LiFePO4 352mm x 110mm x 65mm

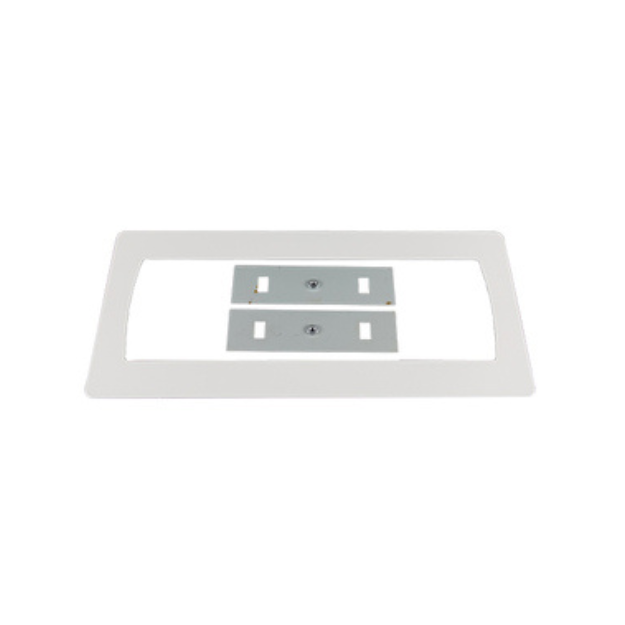

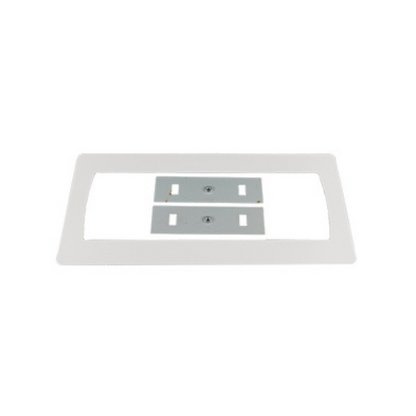

EL-194504 Semi-Recessing Kit 394mm x 166mm x 2mm



Key Features:

  • Traditional design: Blends seamlessly with existing architecture and complements any décor.
  • Energy-efficient LEDs: Minimizes energy consumption and reduces running costs.
  • Self-test function: Ensures your light is always ready without manual testing hassles.
  • Green LED healthy charge indicator: Monitor battery status for complete peace of mind.
  • Easy-install hinged gear tray: Makes installation and maintenance a breeze.
  • Durable polycarbonate construction: Withstands harsh weather and everyday wear and tear, with an IK08 impact rating.
  • IP65 weatherproof: Resists dust, water jets, and even low-pressure water streams.
  • Bright 6500K cool white LEDs: Provides clear illumination and enhances alertness during emergencies.
  • Prismatic diffuser: Distributes light evenly and reduces glare for comfortable viewing.
  • Maintained or non-maintained operation: Choose constant illumination or automatic activation in power cuts.
  • Compliant with UK safety standards (BS EN 60598-1, BS EN 60598-2-22, BS EN 50172).
  • 5-year warranty on both fitting and LiFePO4 battery for exceptional reliability.

Ideal Application:

  • Efficient and Easy: Low power consumption with traditional design. Quick and hassle-free installation with a self-test feature.

  • Visual Monitoring: Green LED charge indicator for status checks. Ideal for diverse environments with IP65 and IK08 ratings.

  • Long-Lasting Performance: Extended 50,000-hour lifespan for durability. LiFePO4 battery with 1.5Ah capacity, replaceable for longevity.

  • Compliant and Accredited: Manufactured to meet BS EN 60598-1, BS EN 60598-2-22, BS EN 50172 standards. Holds CE Mark and UKCA Mark for regulatory adherence.

  • Flexible Operation: Maintained and non-maintained modes for adaptability. Suitable for varied environmental conditions (0 Celsius to +40 Celsius).

Specification:

  • Light Source: LED
  • Light Source Replaceable: No
  • Colour/Finish: White
  • Material: Polycarbonate
  • Diffuser Type: Prismatic
  • Diffuser Material: Polycarbonate
  • IP Rating: IP65
  • IK Rating: IK08
  • Mounting Type: Surface
  • Warranty: 5 Years
  • Life Time Hours: 50000
  • Input Voltage: 220-240V
  • Input Frequency: 50Hz
  • Wattage: 5W
  • Classification: Class I
  • Power Factor: 0.34
  • Colour Temperature: 6500
  • CRI: 70
  • Beam Angle: 117 degrees
  • Lumen Output Mains: 350lm

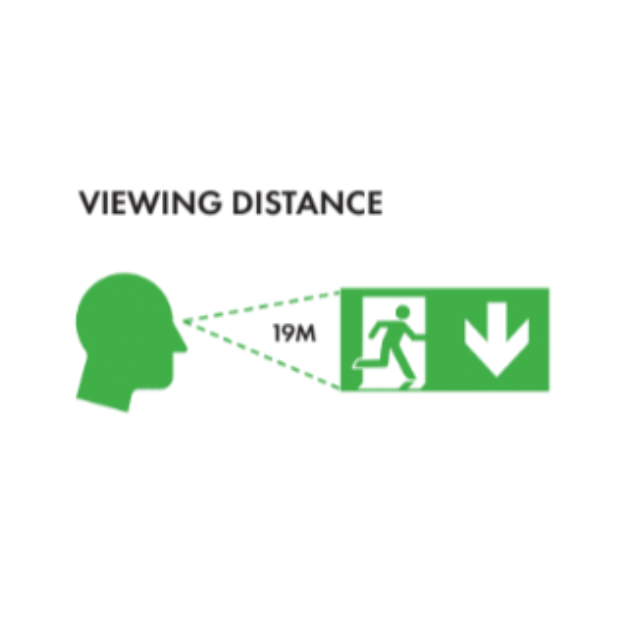

  • Viewing Distance: 19M
  • Test Procedure: Self Test
  • Battery Type: LiFePO4 18650 3.2V
  • Battery Capacity: 1.5Ah
  • Battery Warranty: 5 Years
  • Recharge Time: 24 hours
  • Battery Replaceable: Yes
  • Emergency Duration: 3 hours
  • Lumen Output Emergency: 138lm
  • Mode Of Operation: Maintained / Non-maintained
  • Operating Temperature: 0 Celsius to +40 Celsius
  • Replaces:Old NiCD Version, (B4L/LED/M3/SG and EL-110201)
