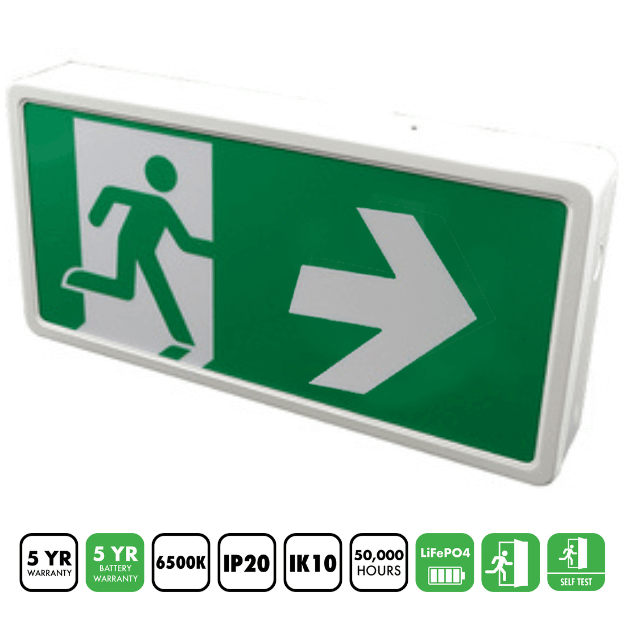

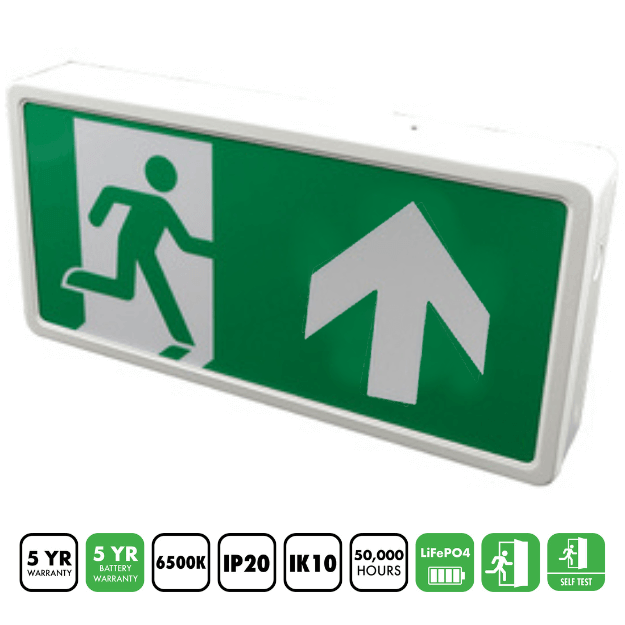

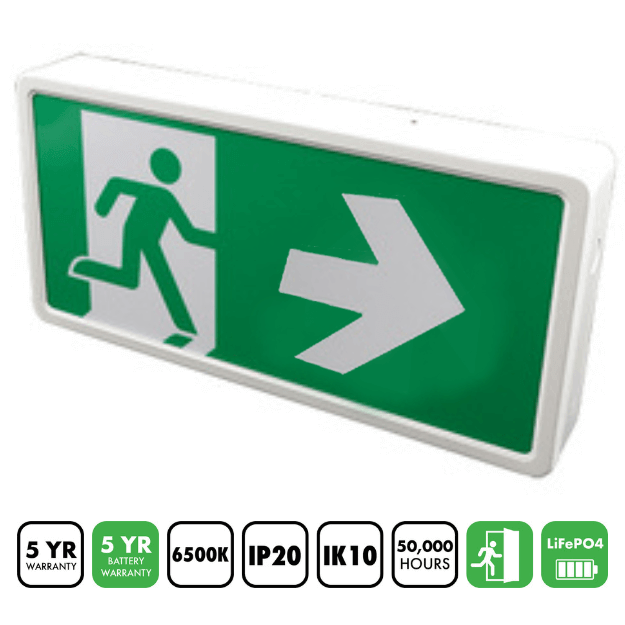

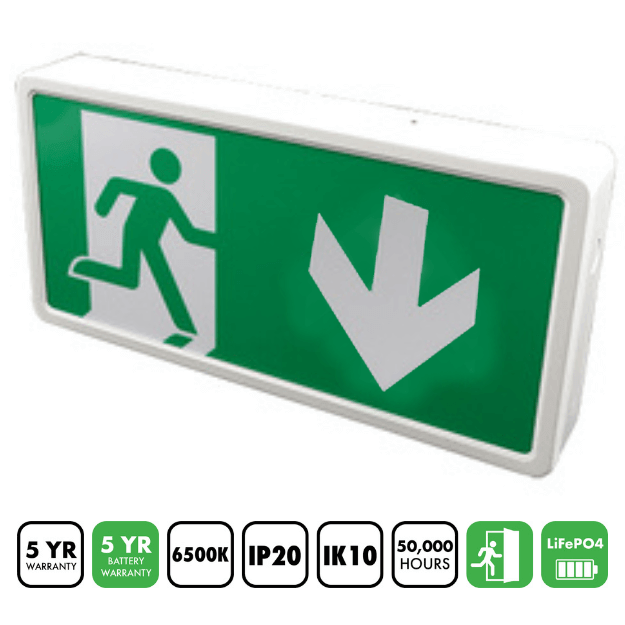

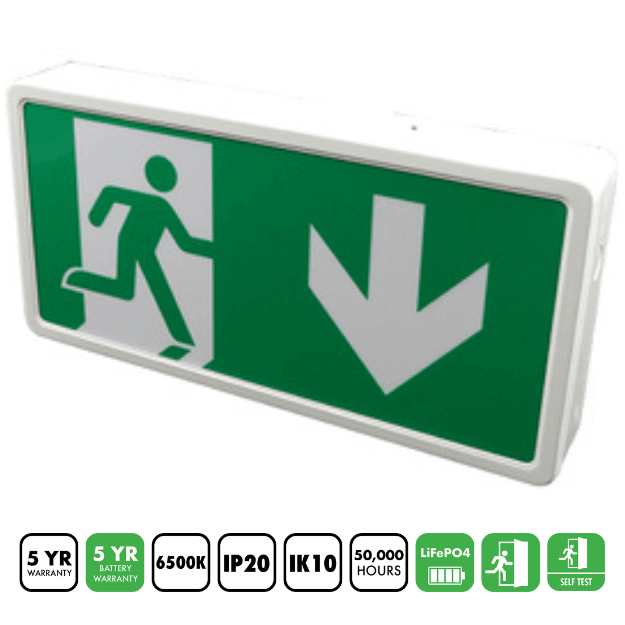

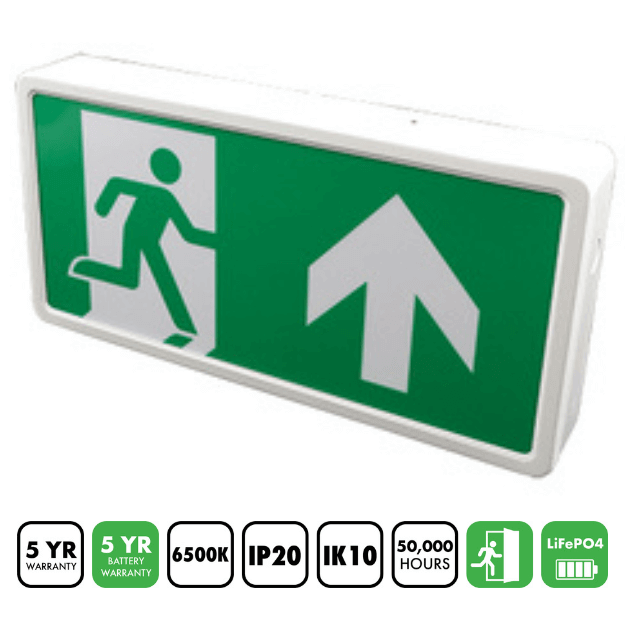

BLE Thorncliffe LED Emergency Exit Box - IP20, EL-131350, EL-131351

£36.00

Sale Sold out

Taxes included.

Model Self Test - Emergency Exit Box Manual Test - Emergency Exit Box

Arrow Legend Up Arrow Legend Down Arrow Legend Left/Right Arrow Legend

Bezel Colour White Bezel Brushed Chrome Bezel Brass Bezel Chrome Bezel

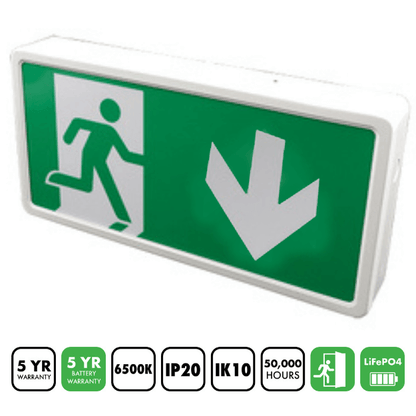

BLE Thorncliffe LED Emergency Exit Box

The BLE Thorncliffe LED Exit Box provides reliable emergency lighting with a durable, impact-resistant design. Combining traditional styling with modern LED performance, it ensures clear evacuation guidance during power outages.

Available in both self-test and manual versions, this fitting is suitable for a wide range of commercial, industrial and public environments.

Available Options

Code	Description	Voltage	Test Type
EL-131350	Self-Test Emergency Exit Box	230V	Self Test
EL-131351	Emergency Exit Box	230V	Manual Test

Key Features

Self-Test Option: Automatic testing ensures system readiness without manual checks.
Manual Test Version Available: Flexible choice to suit installation requirements.
IK10 Impact Resistance: Designed for high-traffic and vandal-prone environments.
Maintained & Non-Maintained: Suitable for different emergency lighting setups.
High Visibility Output: 6500K LEDs with up to 33m viewing distance.
LED Charge Indicator: Visual status indicator for battery health.
Energy Efficient LED: Low running costs with long lifespan.
Durable Construction: Metal and polycarbonate housing for long-term reliability.
Standards Compliant: Meets BS EN 60598-1 and BS EN 60598-2-22.
5-Year Warranty: Covers both fitting and battery.

Ideal Applications

Commercial & Retail: Offices, shops and public buildings.
Education & Healthcare: Schools, hospitals and care facilities.
Hospitality & Transport: Hotels, venues and transport hubs.
Industrial Sites: Factories, warehouses and production areas.
Public Buildings: Government and cultural facilities.

Specifications

Wattage: 3.8W
Voltage: 220–240V
Light Source: LED (Non-replaceable)
Colour Temperature: 6500K
CRI: 70
Lumen Output: 22 lm

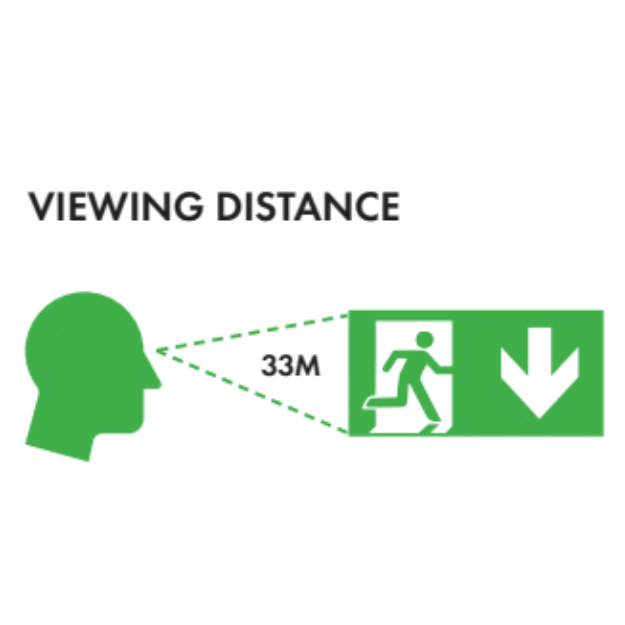

Viewing Distance: 33m
Battery Type: LiFePO4 3.2V
Battery Capacity: 1.5Ah
IP Rating: IP20
IK Rating: IK10
Material: Metal and Polycarbonate
Mounting Type: Surface
Operating Temperature: 0°C to +40°C
Lifespan: 50,000 hours
Warranty: 5 Years
