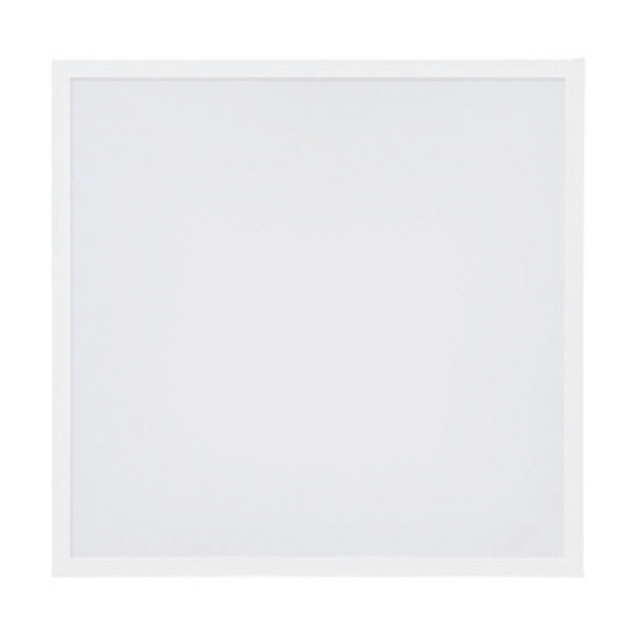

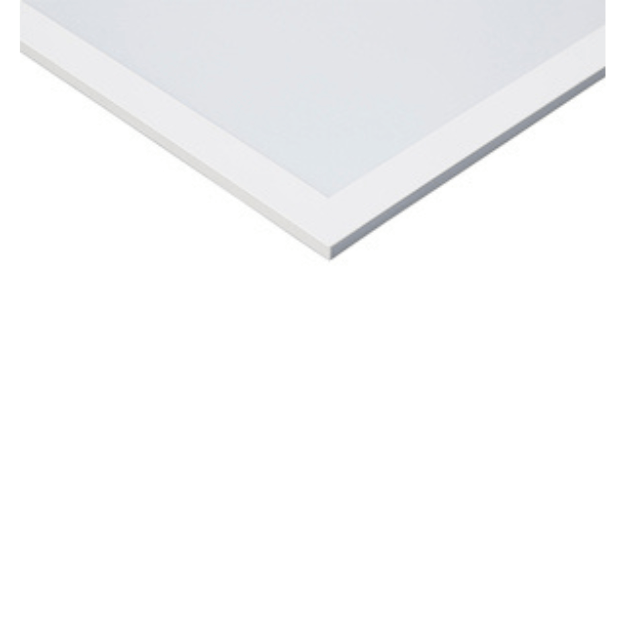

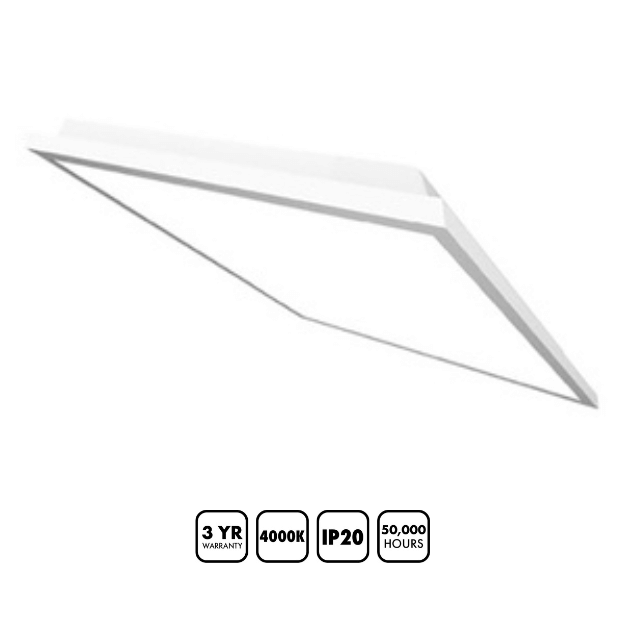

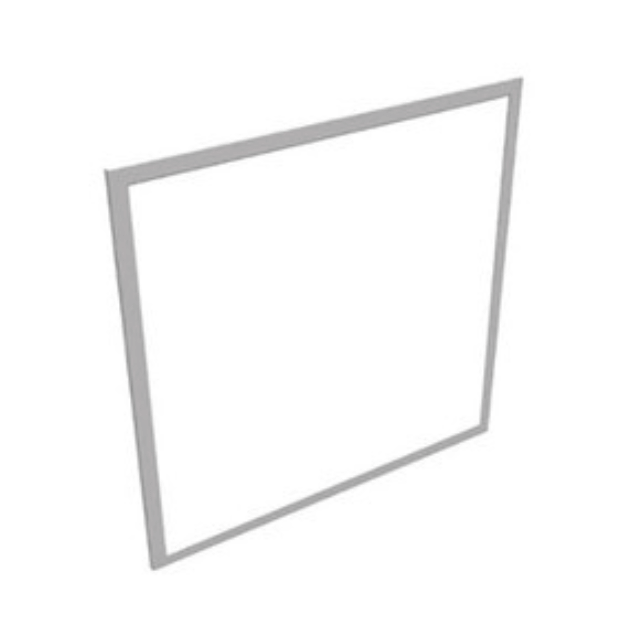

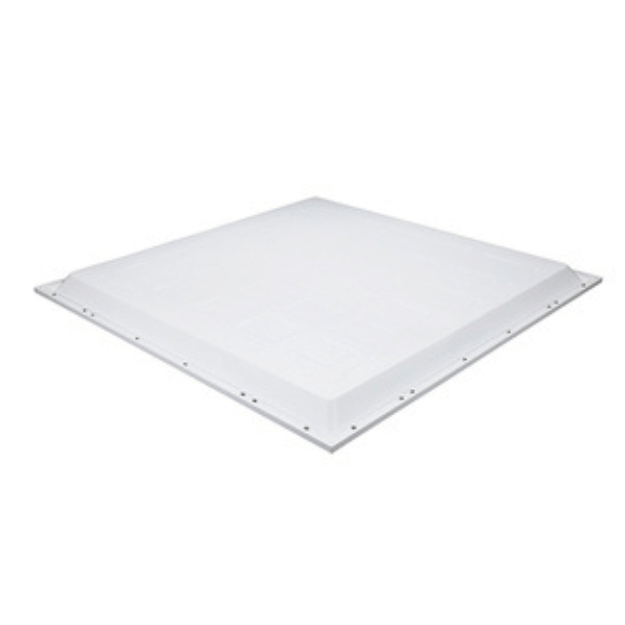

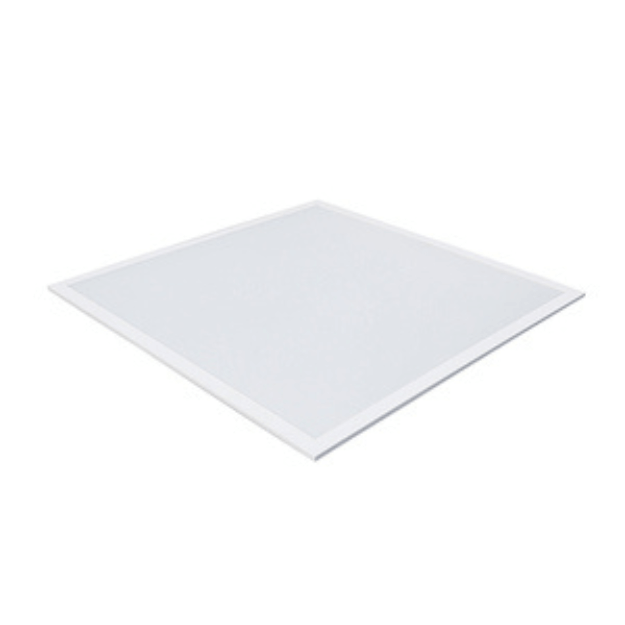

BLE Westwood LED Back-Lit Panel - 36W, IP20, IK02, 4000K, EL-162501

BLE's WESTWOOD LED Back-Lit Panel (EL-162501) offers a Seamless Lighting experience. The perfect blend of style, efficiency, and affordability.

Choose the WESTWOOD LED Back-Lit Panel for uniform and efficient illumination.

This cost-saving backlit panel features a white powder-coated frame, ensuring a sleek and modern aesthetic.

With high efficiency (up to 100lm/w) and even light distribution for various applications, this panel delivers flicker-free performance.

The lightweight design and easy installation make it a hassle-free choice. Benefit from over-voltage and short-circuit protection for added durability.

 Code Description Wattage CCT

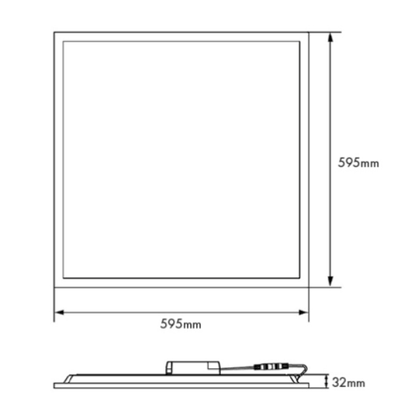

EL-162501 230V LED Back-Lit LED Panel 595x595mm 36W 4000k

Key Features:

  • Uniform and Even Illumination: Experience glare-free, shadow-free lighting across the entire panel, ideal for offices, classrooms, and retail spaces.
  • Cost-Effective Solution: Enjoy superior energy efficiency with up to 100lm/w, significantly reducing your electricity bills compared to traditional light sources.
  • Effortless Installation: The lightweight design and simple mounting system ensure a quick and hassle-free installation process.
  • Flicker-Free Comfort: Protect your eyes and well-being with flicker-free operation, preventing headaches and fatigue.
  • Low Maintenance and Long Life: Benefit from minimal maintenance and a 50,000-hour lifespan, minimizing replacement costs and disruptions.
  • Built-in Safety Features: Over voltage and short circuit protection provide peace of mind and ensure reliable performance.

Ideal Application:

  • Office and Retail Spaces: Illuminate offices and retail areas with cost-saving Westwood Panels. Even light distribution enhances productivity and showcases merchandise.

  • Education and Healthcare: Optimal lighting for classrooms and healthcare settings. Low maintenance, instant light, and added safety features.

  • Commercial and Residential: Enhance lighting in commercial and residential spaces. Modern recessed mounting for a sleek appearance.

  • Art Galleries and Hospitality: Showcase art with flicker-free and CRI 80 Westwood Panels. Create inviting atmospheres in hotels and restaurants.

  • Architectural Projects: Ideal for architectural lighting projects with compliance to standards. Efficient, durable, and stylish for various applications.


  • Light Source: SMD LED
  • Light Source Replaceable: No
  • Colour/Finish: White
  • Material: Steel
  • Diffuser Type: Opal
  • Diffuser Material: Polycarbonate
  • IP Rating: IP20
  • IK Rating: IK02
  • Mounting Type: Recessed
  • Warranty: 3 Years
  • Life Time Hours: 50,000
  • Input Voltage: 220-240V
  • Input Frequency: 50Hz
  • Wattage: 36W
  • Classification: Class II
  • Operating Temperature: -10 Celsius to +40 Celsius
  • Power Factor: 0.9
  • Colour Temperature: 4000K
  • CRI: 80
  • Beam Angle: 120 degrees
  • Lumen Output Mains: 3200lm
