BLE Westwood LED Back-Lit Panel - EL-162504 - IP20, 3CCT, 33W/36W/38W/40W

Experience complete lighting control with the BLE Westwood LED Back-Lit Panel (EL-162504) – easily select your ideal colour temperature and brightness while enjoying consistent, high-performance illumination for any environment.

This energy-efficient 600x600mm LED panel delivers outstanding light distribution through its advanced back-lit design and opal diffuser. With selectable wattage (33W/36W/38W/40W) and 3CCT colour options (3000K, 4000K, 6000K), it offers flexible lighting tailored to your specific environment.
The lightweight build allows for quick and easy installation, while features such as flicker-free operation, low maintenance requirements, and built-in over-voltage and short-circuit protection ensure long-term reliability and a lifespan of up to 50,000 hours.

Key Features:

• LED Back-Lit Panel: Provides uniform and efficient illumination.

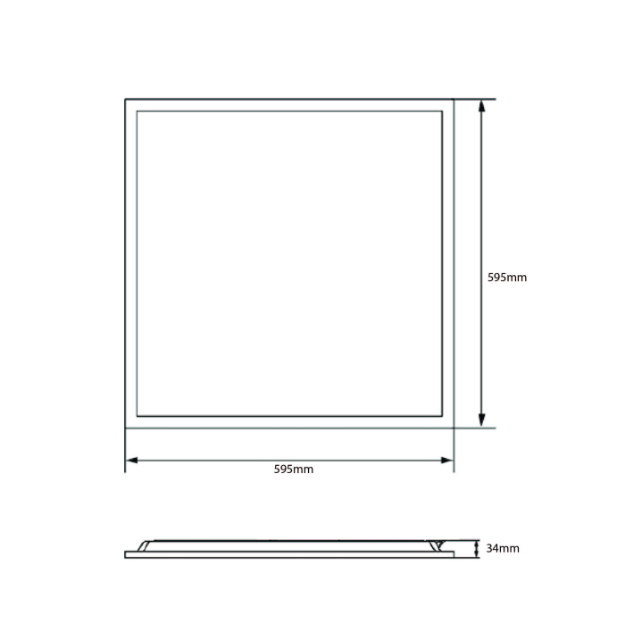

• 595x595 LED Panel: Standard size for easy replacement of traditional ceiling tiles.


• 3CCT Selectable (3000K/4000K/6000K): Choose your preferred colour temperature (Warm White, Cool White, Daylight White).


• Wattage Selectable: Adjust power consumption and light output.


• High Efficiency (up to 120lm/W): Energy-saving and cost-effective.


• Even Light Distribution: Ideal for various applications requiring consistent lighting.


• Flicker Free: Reduces eye strain and provides comfortable lighting.


• Low Maintenance: Long lifespan minimizes replacement costs.


• Instant Light Output: No warm-up time required.


• 50,000 Hour Average Life: Long-lasting and reliable performance.


• Over Voltage Protection: Protects the panel from power surges.


• Short Circuit Protection: Enhances safety and prevents damage.


• Lightweight and Simple to Fit: Easy installation in recessed ceilings.


• White Powder Coated Frame (RAL9003): Sleek and professional appearance.


• Opal Diffuser: Creates a soft and even light output.


• 5 Year Warranty: Provides peace of mind.


• UGR<19 (Implied): Suitable for office and commercial environments (though not explicitly stated in the provided data, back-lit panels often achieve this).


• TP(a) Rated (Implied): Suitable for commercial installations (though not explicitly stated).

Ideal Application:

• Offices and Workspaces – Provides even, flicker-free lighting for a comfortable work environment.

• Meeting Rooms and Conference Halls – Ensures uniform light distribution for enhanced visibility.

• Retail Stores and Showrooms – Creates a bright and inviting shopping experience.

• Educational Institutions – Ideal for classrooms, libraries, and study areas with energy-efficient illumination.

• Healthcare and Medical Facilities – Delivers high-quality lighting for patient care areas and staff workspaces.

• Hotels and Hospitality Spaces – Enhances ambiance in reception areas, lobbies, and corridors.

• Commercial Buildings – Suitable for hallways, common areas, and offices requiring reliable illumination.

• Public Buildings and Government Facilities – Cost-effective, low-maintenance lighting for large-scale applications.

• Gyms and Fitness Centres – Offers glare-free illumination for exercise areas and studios.

• Warehouses and Storage Areas – Ensures clear visibility for improved safety and efficiency.

Specification:

• Light Source: LED
• Light Source Replaceable: No
• Colour/Finish: White RAL9003
• Material: Aluminium alloy
• Diffuser Type: Opal
• Diffuser Material: Polycarbonate
• IP Rating: IP20
• Warranty: 5 Years
• Life Time Hours: 50,000
• Input Voltage: 220-240V
• Input Frequency: 50Hz
• Wattage: 33W/36W/38W/40W
• Classification: Class II
• Operating Temperature: -10 Celsius to +40 Celsius
• Power Factor: 0.9
• CRI: 80
