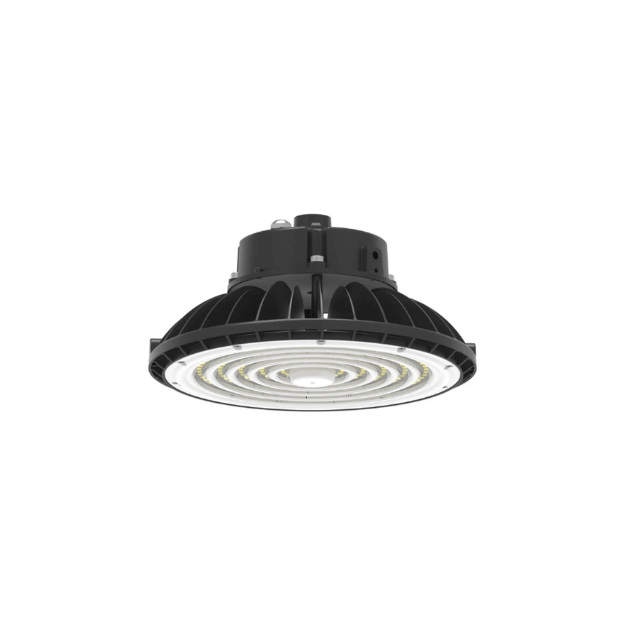

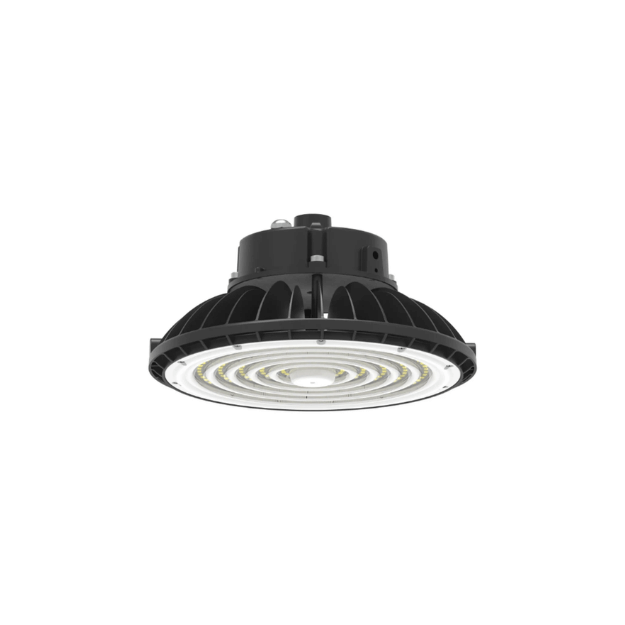

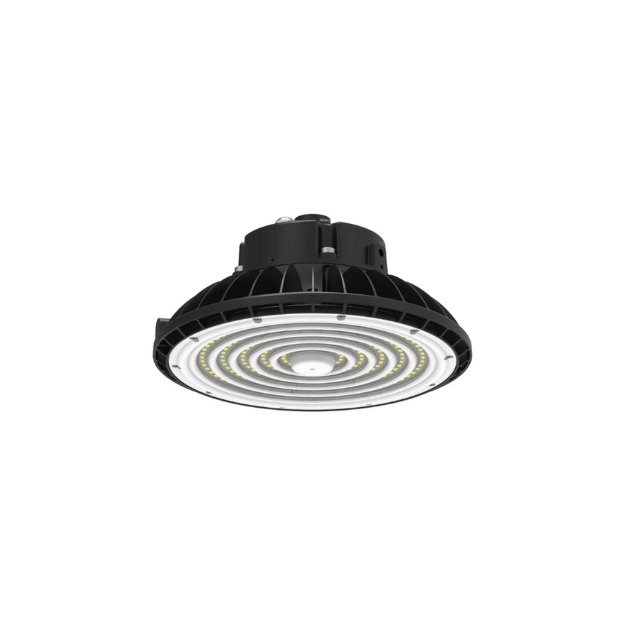

Brackenheath Non Dimmable LED High Bay - IP65, IK08, 90 Degree Angle

Embrace the power and efficiency of Brackenheath's Non-Dimmable HighBays. Unleash the power of LED efficiency and illuminate your UK warehouse, factory, or industrial facility with confidence!

Choose your preferred wattage and colour temperature:

Code Description Colour Temperature Wattage
BR3503 LED Highbay non-dimmable 4000K 100W
BR3504 LED Highbay non-dimmable 6500K 100W
BR3505 LED Highbay non-dimmable  4000K 150W
BR3506 LED Highbay non-dimmable  6500K 150W
BR3507 LED Highbay non-dimmable  4000K 200W
BR3508 LED Highbay non-dimmable  6500K 200W


Key Features:

  • Brighten Vast Spaces Efficiently: Choose from 100W, 150W, or 200W models with powerful LED technology and a broad 90 degree beam angle to illuminate warehouses, factories, and large spaces effectively.
  • Pick Your Perfect Glow: Opt for warm white (4000K) or cool white (6500K) colour temperature to create the desired ambience, from comfortable workspaces to vibrant production lines.
  • Flicker-Free and Effortless Setup: Enjoy smooth, eye-pleasing light with an integrated driver and hanging loop for quick and easy installation. Forget buzzing bulbs and tangled wires!
  • Built to Last, Weathered Proof: Robust die-cast aluminium body and polycarbonate lens withstand dust, dirt, and water jets (IP65), ideal for harsh industrial environments.
  • Peace of Mind Guarantee: Backed by a 5-year guarantee for worry-free operation, ensuring long-lasting performance and value for your investment.

Ideal Application:

  • Banish Warehouse Gloom: Say goodbye to shadowy aisles and dim corners! Flood your warehouse with powerful, uniform illumination that reaches every shelf and pallet. Watch productivity soar as workers enjoy clear visibility and a safer, more pleasant environment.
  • Weatherproof Warriors: Tackle any task, rain or shine! Equip loading bays, entrances, and outdoor workspaces with these durable, weatherproof lights. Forget fumbling in the dark – deliveries become hassle-free, day or night.
  • See Every Screw, Stitch, and Weld: Upgrade those factories, workshops, and assembly lines with high-quality LEDs. Imagine intricate tasks lit with crystal clarity, every screw, stitch, and weld visible as day. Safety and efficiency skyrocket when precision lighting meets your skilled workforce.
  • Ditch the Drafty Drains: Send those outdated fluorescent and halogen highbays packing! Embrace energy-efficient, high-output LED solutions that not only brighten your space but also slash your energy bills. Your wallet and the planet will thank you.
  • Transform the Big Boxes: From colossal retail spaces to grand sports facilities and dazzling exhibition halls, bring them to life with clear, glare-free illumination. Guide customers, showcase exhibits, and create the perfect atmosphere with lights that enhance every detail.


  • Voltage: 220V-240V
  • Frequency: 50-60Hz
  • Power Factor: ≥0.9
  • Protection Class: Class I
  • Colour Temperature:
    • BR3503/BR3505/BR3507 - 4000K
    • BR3504/BR3506/BR3508 - 6500K
  • CRI: ≥80
  • Beam Angle: 90 Degrees
  • Dimmable: No
  • Construction: Aluminium Body and Polycarbonate Diffuser
  • IP Rating: IP65
  • IK rating: IK08
  • Operating Temperature: -20 Celsius to +40 Celsius
  • Mounting Height: 8-10m
  • Lifespan: 25,000hrs
  • Light Source: Non-replaceable LED
  • Luminous Flux: 100W 14,000lm / 150W 21,000Lm / 200W 28,000Lm
  • Light Source Luminous Flux:
100W 15,450Lm
150W 21,870Lm
200W 30,030Lm

  • Light Source Luminous Efficacy:
100W 153Lm/W
150W 148Lm/W
200W 152Lm/W

  • Energy Efficiency Class: E
  • Standards: EN IEC 61000-3-2:2019 EN IEC 60598-1
