Brackenheath Spectra II LED Bulkhead IP65 CCT & Wattage Selectable

Versatile LED bulkhead with selectable wattage and colour temperature for complete lighting flexibility.

Available with microwave sensor and emergency options for energy-efficient and compliant installations.

Ideal for corridors, commercial spaces, outdoor areas and utility lighting.


Brackenheath Spectra II LED Bulkhead CCT & Power Selectable

The Brackenheath Spectra II LED Bulkhead is a slimline, high-performance fitting designed for both ceiling and wall mounting. With selectable wattage and colour temperature, it offers complete flexibility to suit a wide range of applications.

Available with optional microwave sensor and emergency backup, this bulkhead is ideal for commercial, industrial and residential installations.

Available Options

Code Description Dimensions

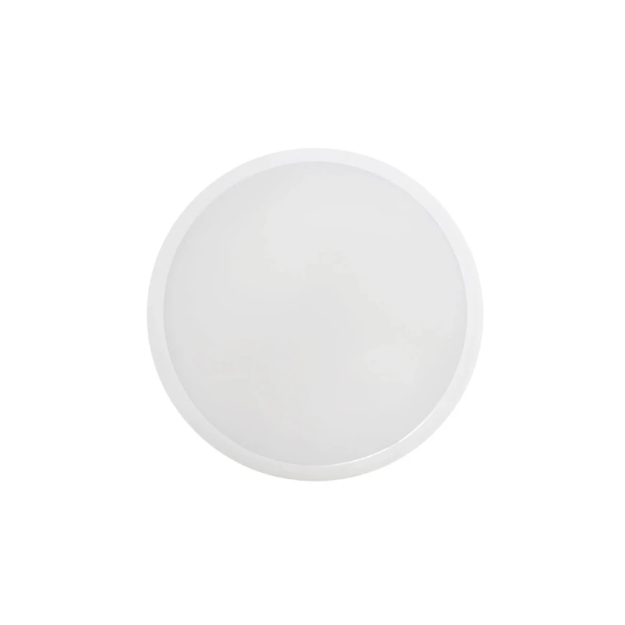

BR6112 Standard Bulkhead (CCT & Power Selectable) 320 x 78mm
BR6113 Bulkhead with Microwave Sensor 320 x 78mm
BR6114 Bulkhead with Emergency 320 x 78mm

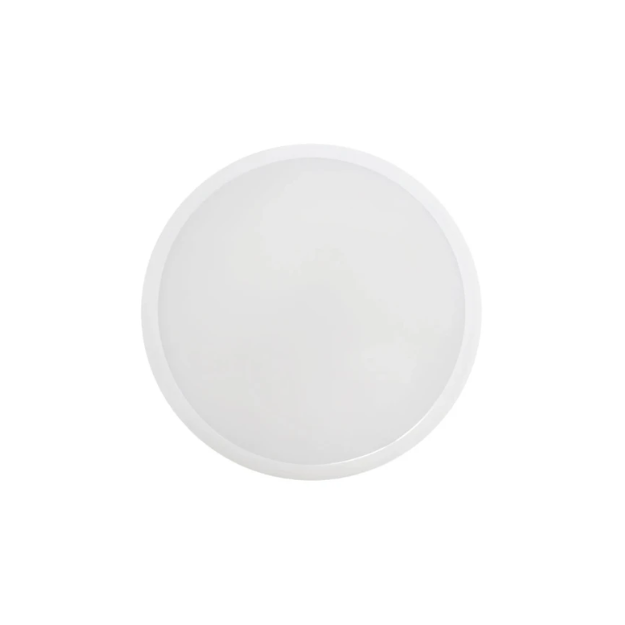

BR6115 Bulkhead with Sensor & Emergency 320 x 78mm

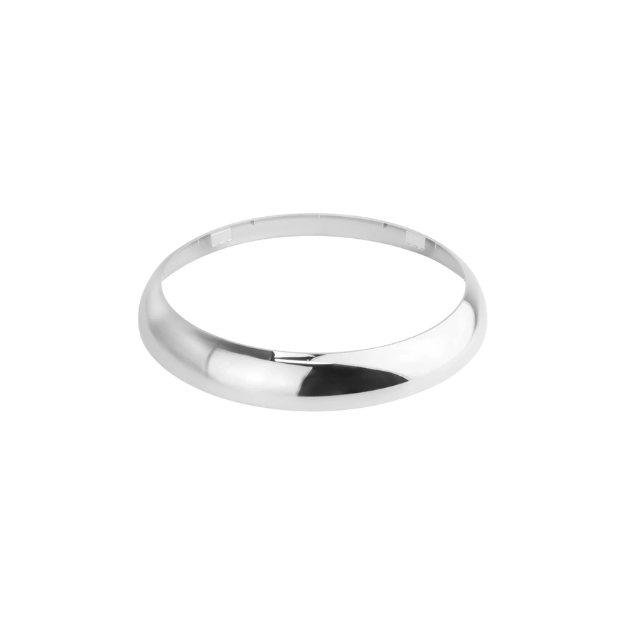

BR6120CH Optional Chrome Bezel 320 x 37mm

Key Features

  • CCT Selectable: Choose between 3000K, 4000K and 6000K.
  • Power Selectable: Adjustable wattage from 12W to 22W.
  • Microwave Sensor Option: Automatic lighting with corridor function.
  • Emergency Option: 3-hour backup for safety compliance.
  • IP65 Rated: Suitable for indoor and outdoor use.
  • IK10 Impact Rated: Highly durable for demanding environments.
  • Easy Installation: Hinged gear tray and plug-and-play design.
  • Slimline Design: Clean, modern appearance.
  • Optional Chrome Bezel: Upgrade aesthetic finish.
  • 3-Year Warranty: Reliable long-term performance.

Ideal Applications

  • Corridors & Stairwells: Sensor-controlled lighting for energy savings.
  • Commercial Buildings: Offices, communal areas and entrances.
  • External Areas: Walkways, entrances and covered outdoor spaces.
  • Industrial Settings: Warehouses and utility areas.
  • Residential Developments: Flats, hallways and shared spaces.

Specifications

  • Voltage: 220–240V
  • Frequency: 50–60Hz
  • Wattage: 12W / 15W / 18W / 22W Selectable
  • Lumen Output: 1200 – 2200 lm
  • Colour Temperature: 3000K / 4000K / 6000K
  • CRI: ≥80
  • Beam Angle: 120°
  • Power Factor: ≥0.8
  • IP Rating: IP65
  • IK Rating: IK10
  • Construction: Polycarbonate
  • Operating Temperature: -20°C to +50°C (0°C to +50°C Emergency)
  • Lifespan: 30,000 hours
  • Luminous Efficacy: 120 lm/W
  • Electrical Class: Class II
  • Dimmable: No
  • Standards: BS EN 60598-1

Delivery Information

UK mainland delivery is typically 1–2 working days from order confirmation.
