FLEXEL Premium ECOFLOOR Underfloor Heating Cable Mat Kit

FLEXEL's Premium ECOFLOOR Underfloor Heating Cable Mat Kit is Designed for fast installation, giving you everything you need for an even heat distribution across the whole floor.

This premium high quality Cable Mat is manufactured in Europe, ensuring one of the best value for money underfloor heating solutions on the market today.

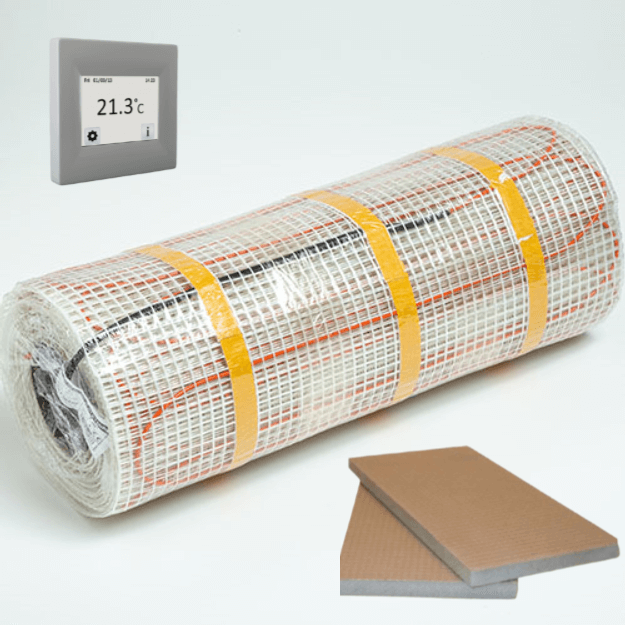

Kit contains:

  • Premium ECOFLOOR Mat
  • 10mm Thick Thermal Insulation Boards
  • Choice of either Flexel Touch Thermostat or Flexel WiFi Thermostat

Flexel's ECOFLOOR Heat Mats are designed to make installation easy.

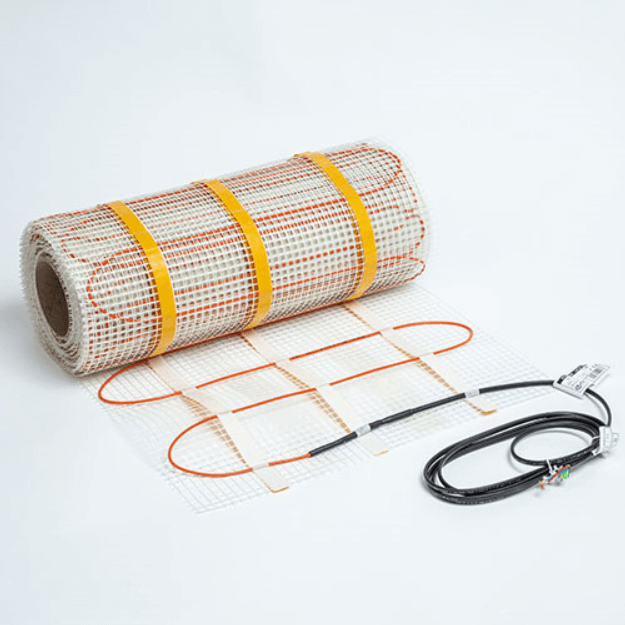

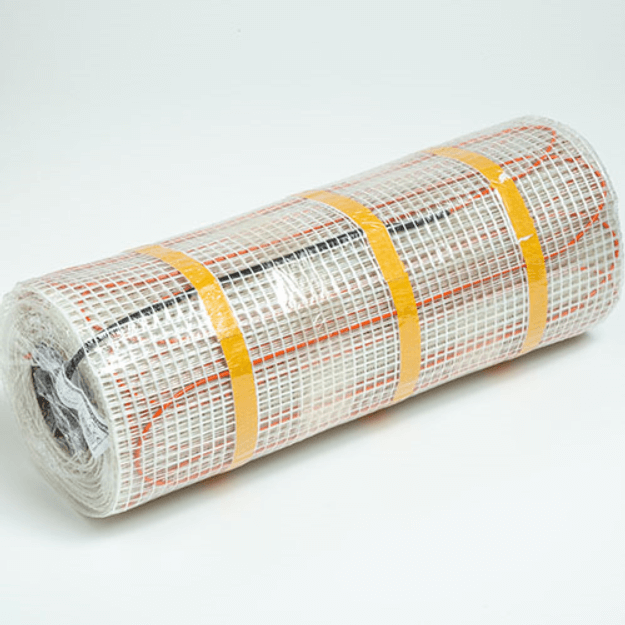

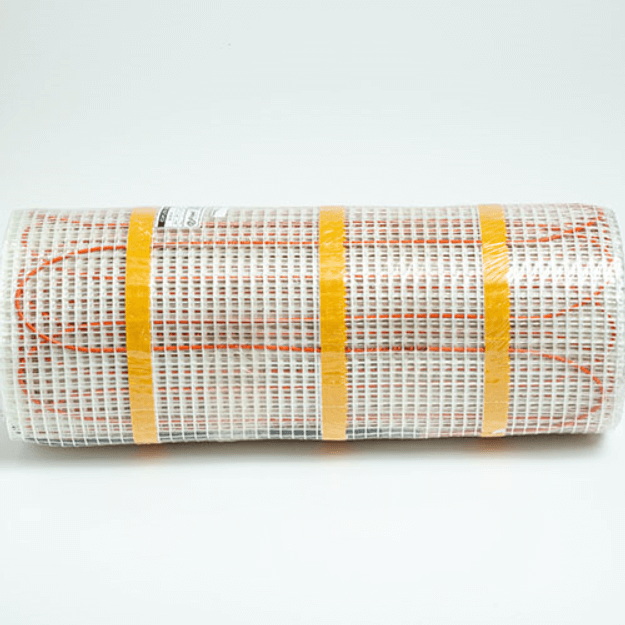

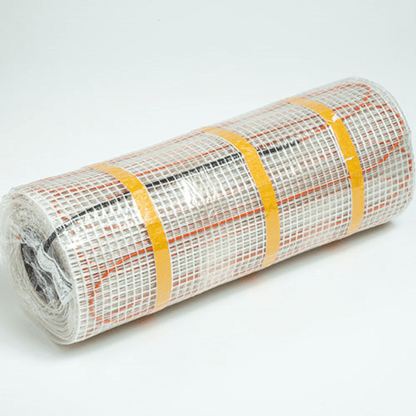

Made of a heating cable attached to a fibreglass mesh scrim, the mat can simply be rolled out onto the floor, making installation quick and easy.

The mats come complete with double sided tape on the underside so they can easily be fixed to any clean surface.

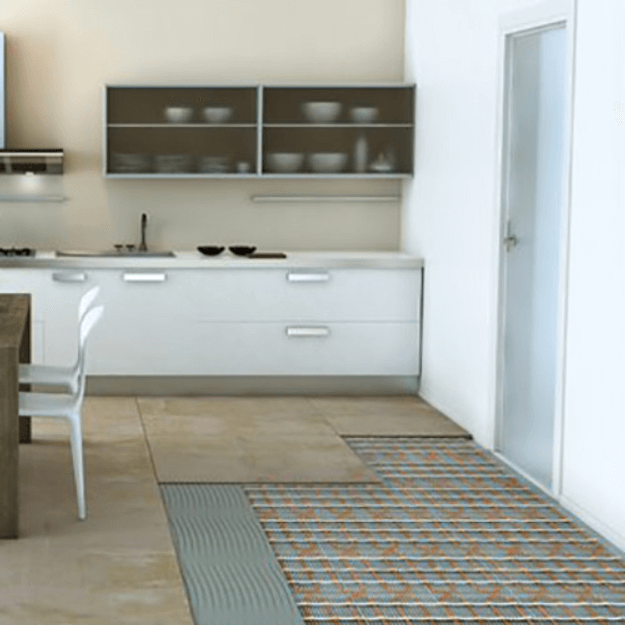

ECOFLOOR electric underfloor heating mats are available in two standard power ratings: 150 Watt mats for internal applications including kitchens and bathrooms and 200 Watt mats for conservatory use or areas where high heat losses can occur.

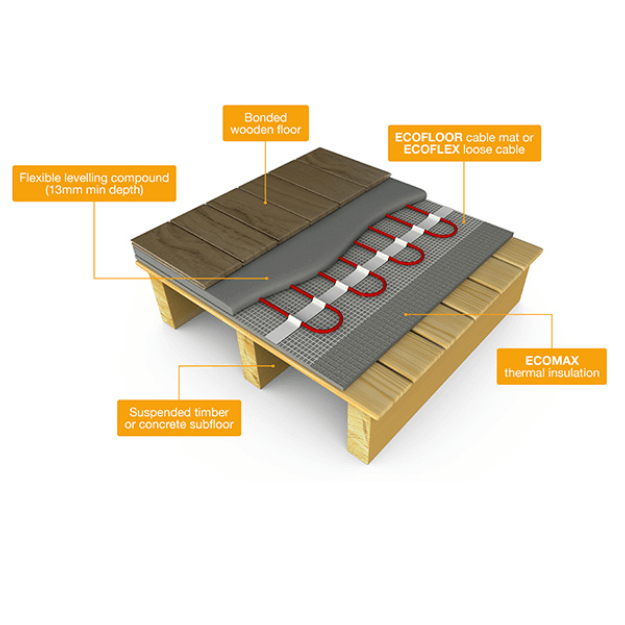

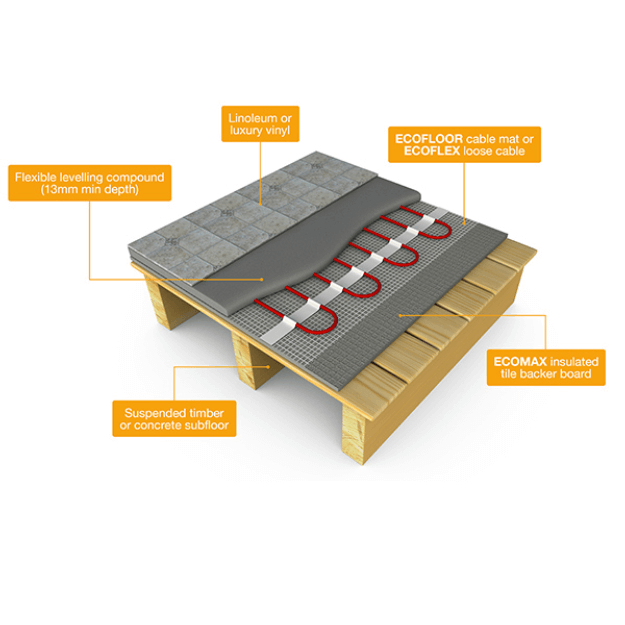

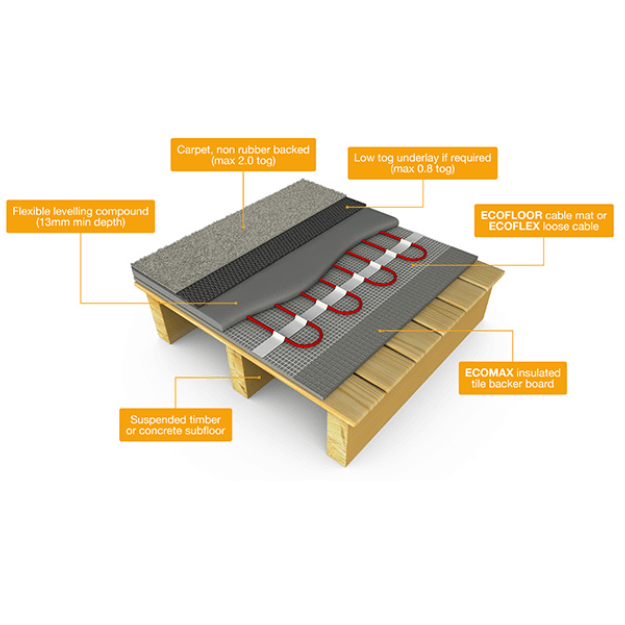

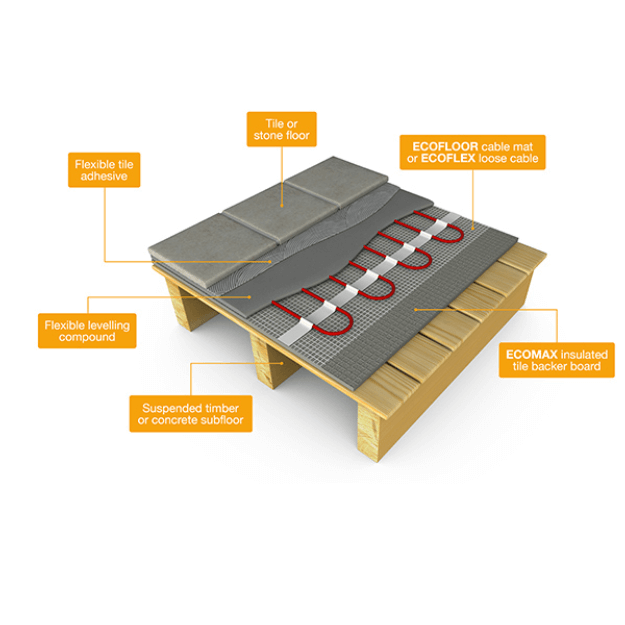

An underfloor heating system suitable for many floor types: tiles, stone, carpets, hardwood or laminate flooring.

Available in 500m widths and a wide range of lengths.

Lead times:

Our Cable Mats are normally shipped within 1 working day, but as always, if there are any issues we'll keep you up to date.

Additional Information:

  • Approved to EN60335-2-96 as required by the 18th Edition Wiring Regulations (BS7671:2008)
  • Two heat outputs – 150W/m2 and 200W/m2
  • Quick installation – Simply roll out the electric underfloor heating mat and fix to the floor
  • Suitable for tile, stone, slate and marble floor finishes
  • Continuous metallic earth screen to ensure electrical safety
  • Low build height – Minimal floor height build up
  • Suitable for use in wet areas
  • EMC Safe
FLEXEL ECOFLOOR 150W/m2 Cable Mat
Product Code Area Covered (m2) Output (W) Width (m) Length (m)
LDTS150-0.5 0.5 75 0.5 1.0
LDTS150-1.0 1.0 150 0.5 2.0
LDTS150-1.5 1.5
225 0.5 3.0
LDTS150-2.0 2.0 300 0.5 4.0
LDTS150-2.5 2.5 375 0.5 5.0
LDTS150-3.0 3.0 450 0.5 6.0
LDTS150-3.5 3.5 525 0.5 7.0
LDTS150-4.0 4.0 600 0.5 8.0
LDTS150-4.5 4.5 675 0.5 9.0
LDTS150-5.0 5.0 750 0.5 10.0
LDTS150-6.0 6.0 900 0.5 12.0
LDTS150-7.0 7.0 1050 0.5 14.0
LDTS150-8.0 8.0 1200 0.5 16.0
LDTS150-9.0 9.0 1350 0.5 18.0
LDTS150-10.0 10.0 1500 0.5 20.0
LDTS150-11.0 11.0 1650 0.5 22.0
LDTS150-12.0 12.0 1800 0.5 24.0
LDTS150-14.0 14.0 2100 0.5 28.0
LDTS150-16.0 16.0 2400 0.5 32.0



FLEXEL ECOFLOOR 200W/m2 Cable Mat
Product Code Area Covered (m2) Output (W) Width (m) Length (m)
LDTS200-0.5 0.5 75 0.5 1.0
LDTS150-1.0 1.0 150 0.5 2.0
LDTS150-1.5 1.5
225 0.5 3.0
LDTS150-2.0 2.0 300 0.5 4.0
LDTS150-2.5 2.5 375 0.5 5.0
LDTS150-3.0 3.0 450 0.5 6.0
LDTS150-3.5 3.5 525 0.5 7.0
LDTS150-4.0 4.0 600 0.5 8.0
LDTS150-4.5 4.5 675 0.5 9.0
LDTS150-5.0 5.0 750 0.5 10.0
LDTS150-6.0 6.0 900 0.5 12.0
LDTS150-7.0 7.0 1050 0.5 14.0
LDTS150-8.0 8.0 1200 0.5 16.0
LDTS150-9.0 9.0 1350 0.5 18.0
LDTS150-10.0 10.0 1500 0.5 20.0
LDTS150-11.0 11.0 1650 0.5 22.0
LDTS150-12.0 12.0 1800 0.5 24.0
LDTS150-14.0 14.0 2100 0.5 28.0
LDTS150-16.0 16.0 2400 0.5 32.0
