RED ARROW Fortress LED Non Corrosive Fittings - 2ft, 4ft, 5ft, 6ft - 24w to 80w - NCF - IP65
RED ARROW Fortress LED Non Corrosive Fittings - 2ft, 4ft, 5ft, 6ft - 24w to 80w - NCF - IP65
Regular price
£25.00
Regular price
£34.84
Sale price
£25.00
Taxes included.
Quantity
Couldn't load pickup availability

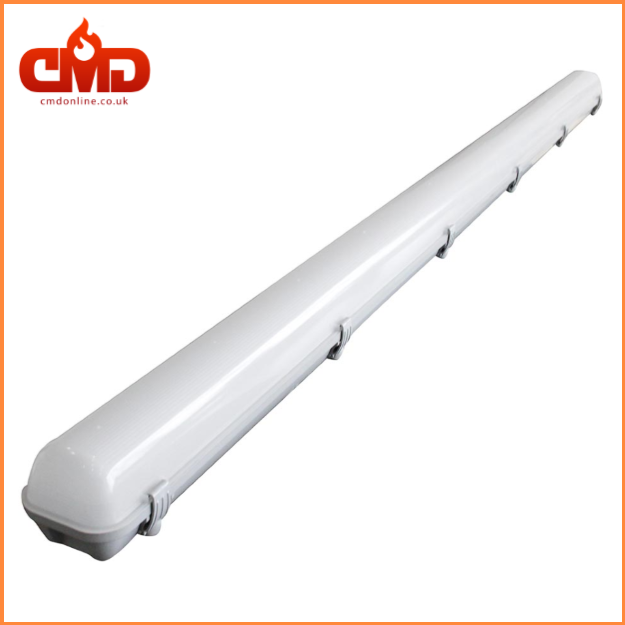

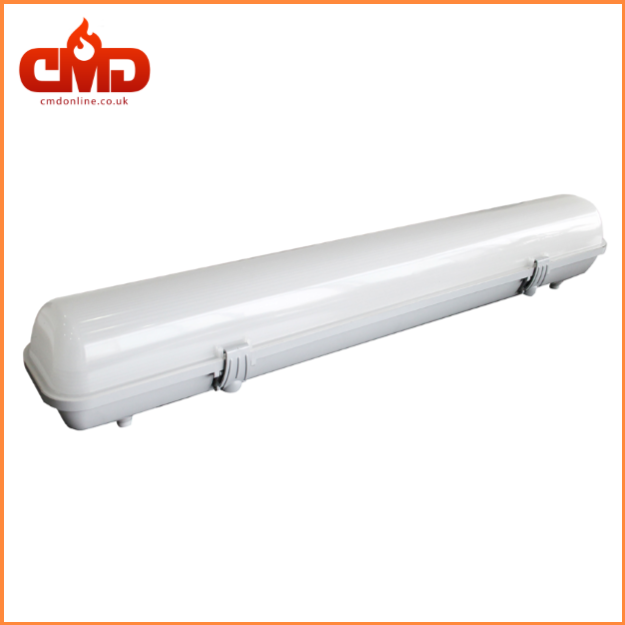

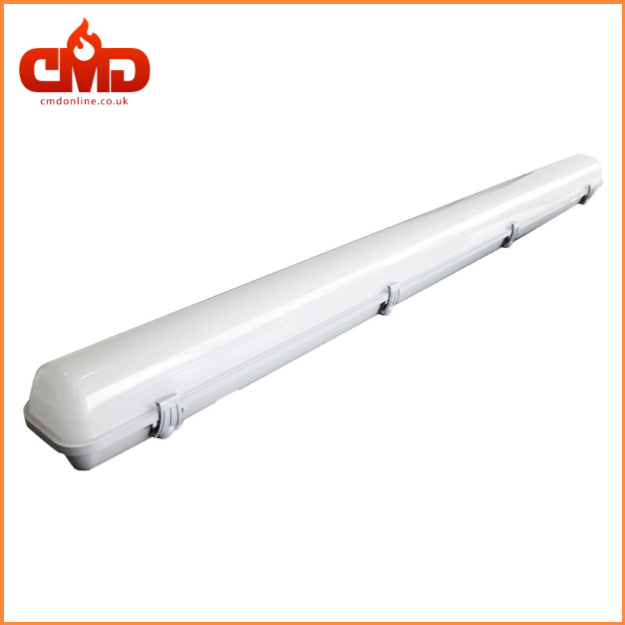

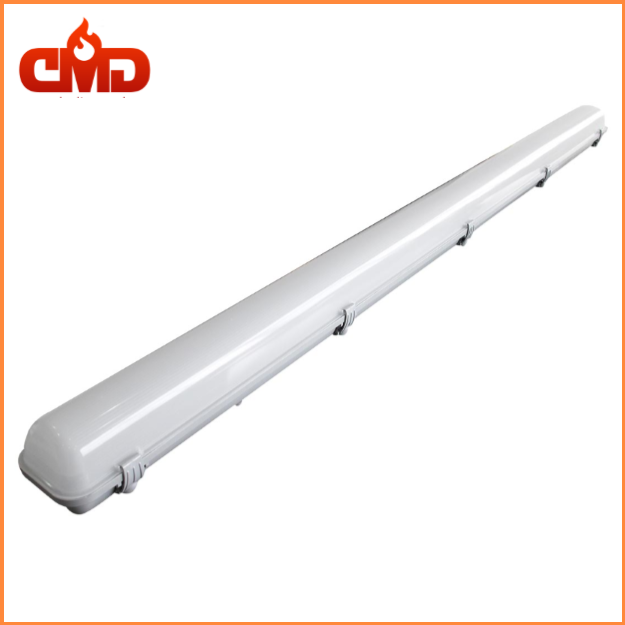

Red Arrow's Fortress LED Non Corrosive Fitting (NCFT) is available in four different physical sizes (2ft, 4ft, 5ft and 6ft) and seven wattages (24w, 25 or 50w, 35 or 70w, 40 or 80w) as shown in the table below.
Note that these fittings are part of Red Arrow's Clearance Stock, please check with us for live availability before ordering.
These great quality waterproof LED fittings come complete with Tridonic Driver and quick terminal connector. They are supported by a 5 year guarantee.
All fittings are available with optional 3hr Emergency Pack.
Metal Diffuser Clips are available on request.
Ideal for Commercial Kitchens, Commercial Sites and Factories.
There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.
Technical Details... Fortress NCF's
| Model |
Power (W) |
Lumen Output |
Emergency Output |
Dimensions LxWxD mm |
| NCFT224 | 24w | 2160lm | 655x105x110 | |
| NCFT224E | 24w | 2160lm | 180lm | 655x105x110 |
| NCFT425 | 25w | 2250lm | 1265x105x110 | |
| NCFT425E | 25w | 2250lm | 180lm | 1265x105x110 |
| NCFT450 | 50w | 4500lm | 1265x105x110 | |
| NCFT450E | 50w | 4500lm | 360lm | 1265x105x110 |
| NCFT535 | 35w | 3150lm | 1565x105x110 | |
| NCFT535E | 35w | 3150lm | 270lm | 1565x105x110 |
| NCFT570 | 70w | 6300lm | 1565x105x110 | |
| NCFT570E | 70w | 6300lm | 450lm | 1565x105x110 |
| NCFT640 | 40w | 3600lm | 1860x105x110 | |
| NCFT640E | 40w | 3600lm | 270lm | 1860x105x110 |
| NCFT680 | 80w | 7200lm | 1860x105x110 | |
| NCFT680E | 80w | 7200lm | 450lm | 1860x105x110 |
Key Features...
- LED 132 to 384pcs of 0.2w 2835 LED
- Colour Temp: 4000k
- 5 Year Guarantee
- 50,000 Hrs Life Expectancy
- Working Temperature: -20°C - 40°C / 0°C - 40°C for EM
- 120 deg Beam Angle
- IP65 Rating
- IK07 Rating
- Grey Finish
- Input Voltage: 220 to 240v
- 24w or 80w
- Supplied with Plastic Diffuser Clips.
- Optional Metal Clips
- Microwave Sensor available on request.
