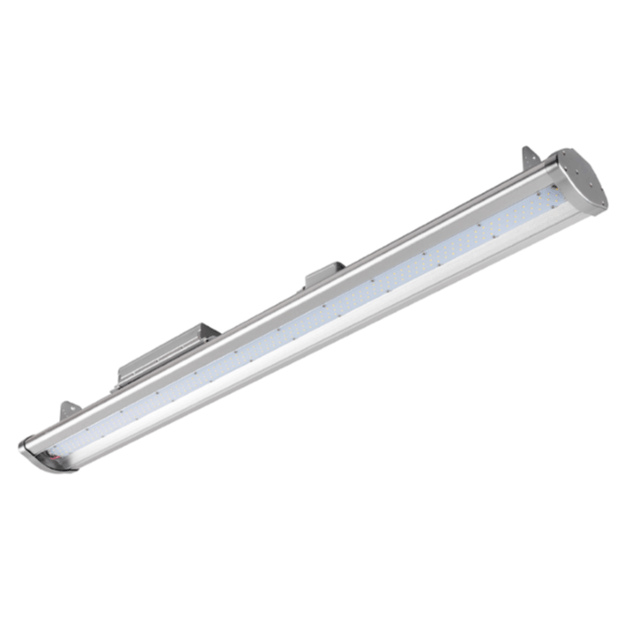

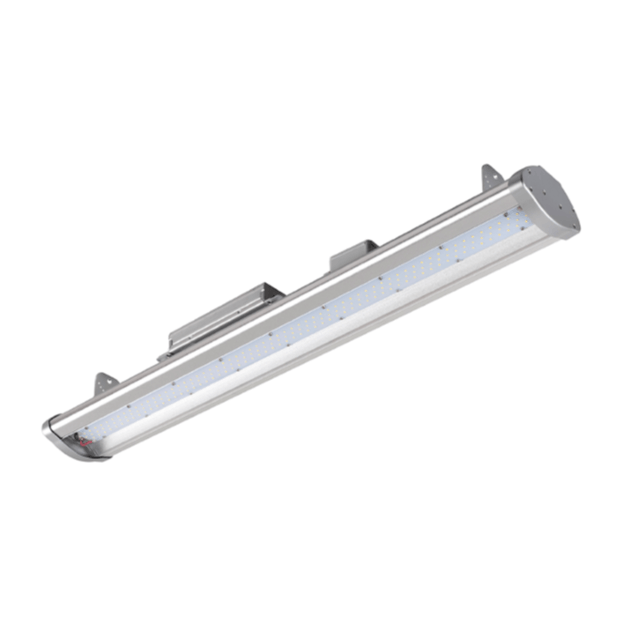

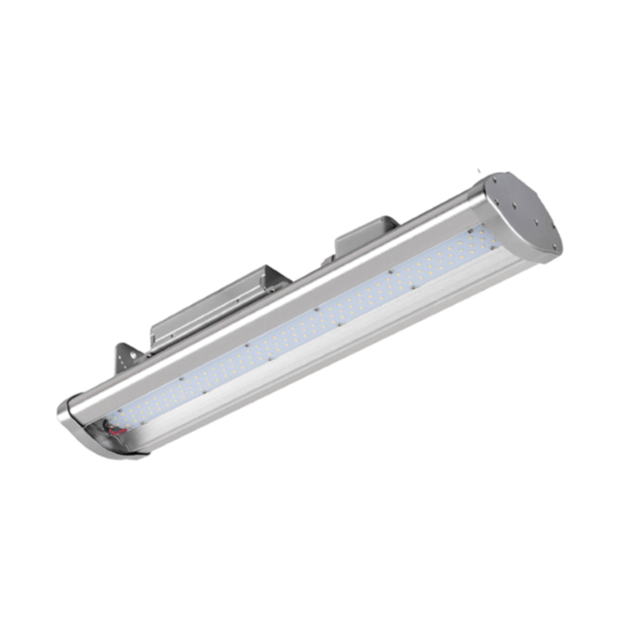

Hi-Lo Bay Linear High Output Luminaires 60w to 200w IP65

Red Arrow's LED Linear Hi-Lo Bay Fittings are a versatile solution for many factory, leisure and warehouse facilities.

The range of LED Linear HI Lo Bay Fittings are available in three different physical sizes (2ft, 3ft and 5ft) and four wattages (60w, 100w, 150w and 200w) as shown in the table below.

Fitted as standard with dimmable multi-voltage drivers and supplied with a wire suspension kit, the range offers significant energy saving benefits.

These great quality LED Linear Fittings are corrosion proof, waterproof and dustproof, suitable for factories, leisure centres and warehouse applications.

Key Features:

  • Versatile range for warehouses, factories and more.
  • Robust, waterproof and dustproof construction.
  • High efficacy, up to 148 lm/W
  • Optional opal diffusers, lighting controls and emergency conversion.
  • Polarity of dimming cables: Blue = + (pos), White = - (neg)
  • Suitable for installation at a height of 4 to 12m
  • Weight: 3.15kg (60w), 3.61kg (100w), 4.94kg (150w), 5.67kg (200w)

Supplied with 1 to 10v dimmable driver which of course helps significantly with energy saving when used with our sensor accessories.

The fittings are supported by a 5 year guarantee and 2 year on-site warranty.

Please do contact us if you require any of these additional features.

  • Can be supplied with an Opal Diffuser.
    • SKU: HLB2OPDIFF: 600mm Opal Diffuser
    • SKU: HLB3OPDIFF: 900mm Opal Diffuser
    • SKU: HLB4OPDIFF: 1200mm Opal Diffuser
  • SKU: HLBDS: Daylight Sensor 1-10v Control
  • SKU: HLBMS: Microwave Sensor c/w mounting bracket
  • SKU: HLBMS-RC: Remote Control for Microwave Sensor
  • TITAN/KIT: Emergency Conversion Kit

There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.

Technical Details

 Model

Power

(W)

Colour

Temperature

Lumen

Output

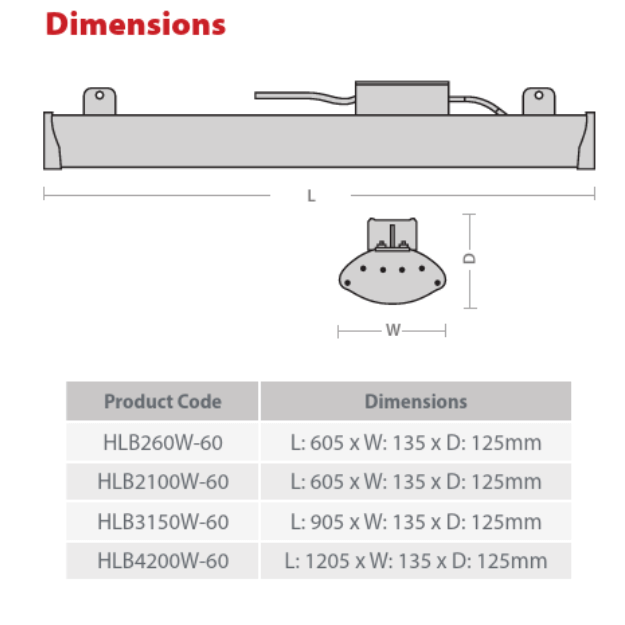

Dimensions

LxWxD mm

HLB260W-60 60w 6000K 8,865 lm 605x135x125
HLB2100W-60 100w 6000K 14,235 lm 605x135x125
HLB3150W-60 150w 6000K 20,450 lm 905x135x125
HLB4200W-60 200w 6000K 26,430 lm 1205x135x125

    Key Features:

    • Body Material: Aluminium
    • Cover Material: Polycarbonate
    • Colour Finish: Grey Body
    • Colour Temp: 6000K
    • 5 Year Guarantee
    • LED Lifetime: L70B50 50,000 Hrs
    • Working Temperature: -30 degC to 50 degC
    • 120 deg Beam Angle
    • IP65 Rating
    • IK10 Rating
    • Elictrical Class: Class 1
    • Power factor: >0.92
    • Input Voltage: 100 to 240v
