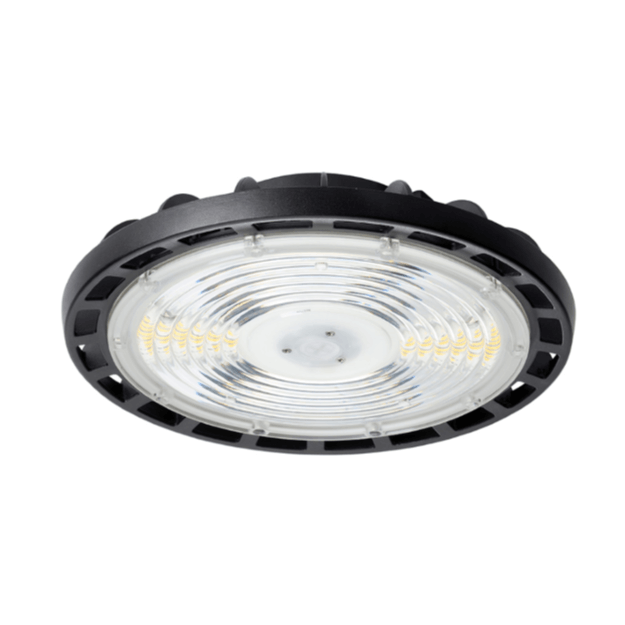

LED High Bays - Commando Plus - Selectable Wattage and CCT

Red Arrow's Commando Plus LED High Bay is available in two models, selectable 100 to 150w (COM150-CCT) and 120 to 200w (COM200-CCT).

These high performance Compact Dimmable High Bays are suitable for any high mounting application.

The Commando Plus features both selectable wattage and selectable colour appearance, offering great flexibility from just two products. Ideal for factory and warehouse areas.

The range delivers excellent efficacy of 140lm/W and is fully dimmable 0-10v for detailed control.

Accessories include plug in microwave sensors that are easily set up using a hand held remote control.

Key Features:

  • High efficacy 140lm/W as standard
  • Wattage and CCT selectable for optimum versatility

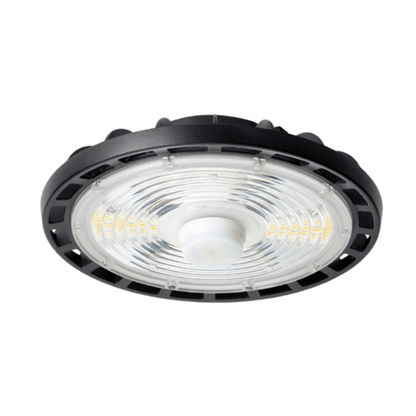

  • Quick and simple plug in microwave movement detectors, with remote control set up
  • 110 degree beam angle as standard – optional 90 degree lens
  • Wide range of refractor and reflector accessories
  • High output self test emergency kit option

High Bay Options

We've listed the (COM150-CCT) Commando Plus High Bay 100-150W and the (COM200-CCT) Commando Plus High Bay 120-200W

Please do contact us if you require any of these additional features.

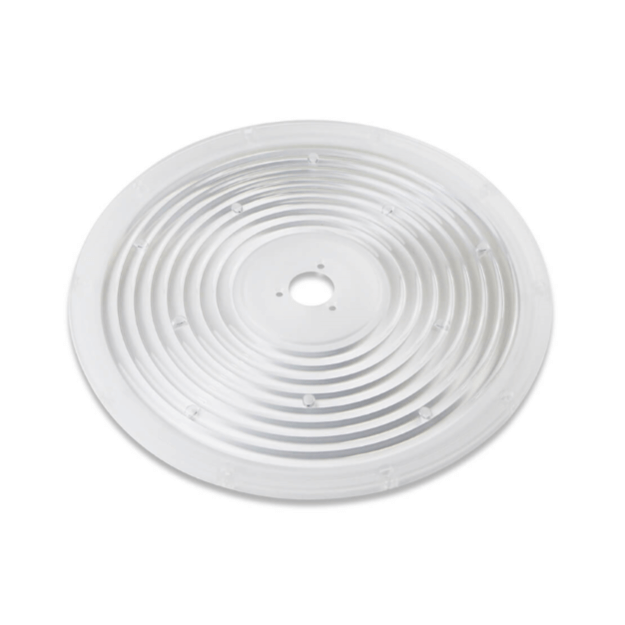

  • Retrofit Lens 90° Beam

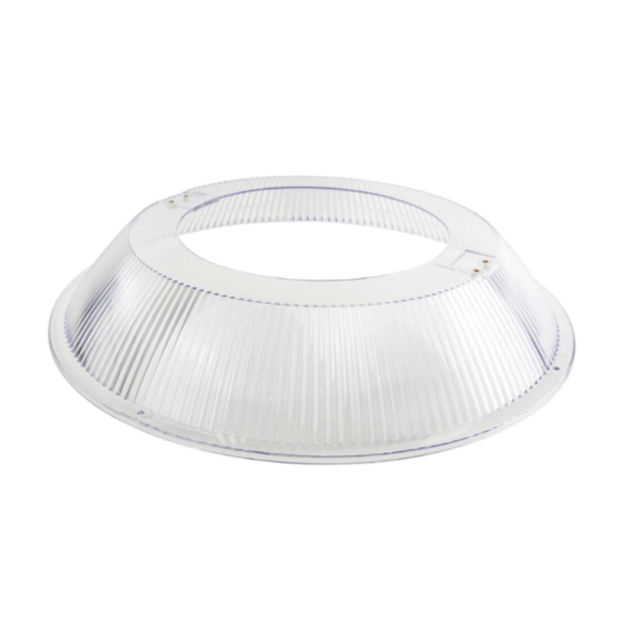

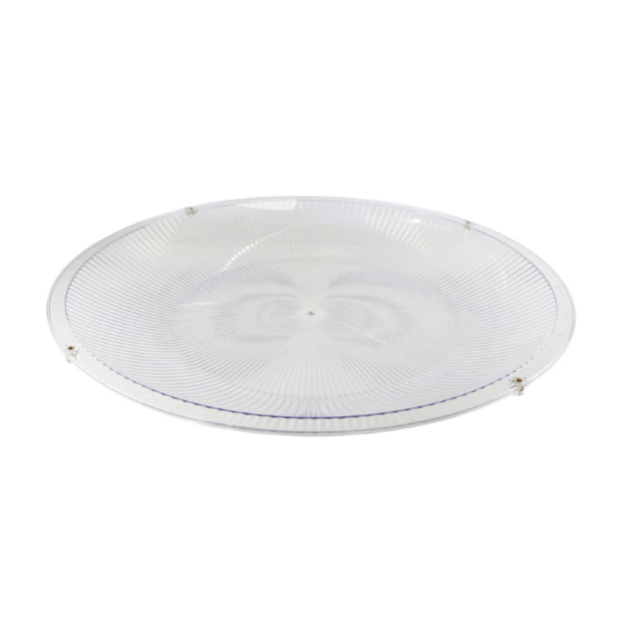

  • Polycarbonate Refractor Lens

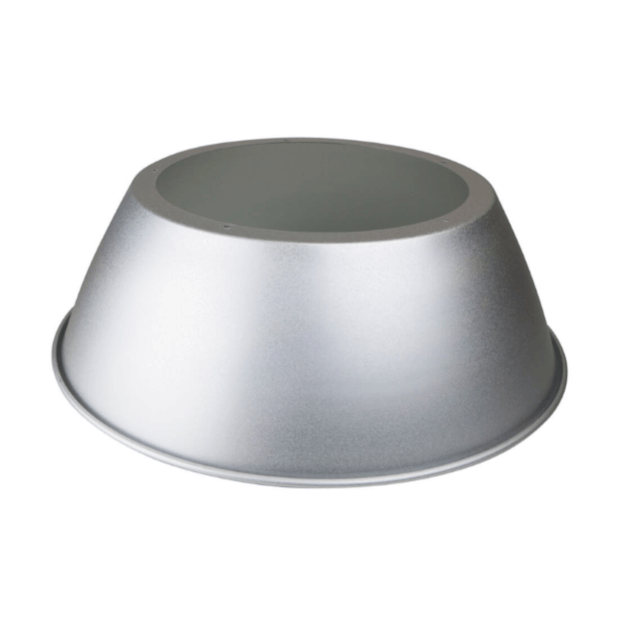

  • Aluminium Reflector

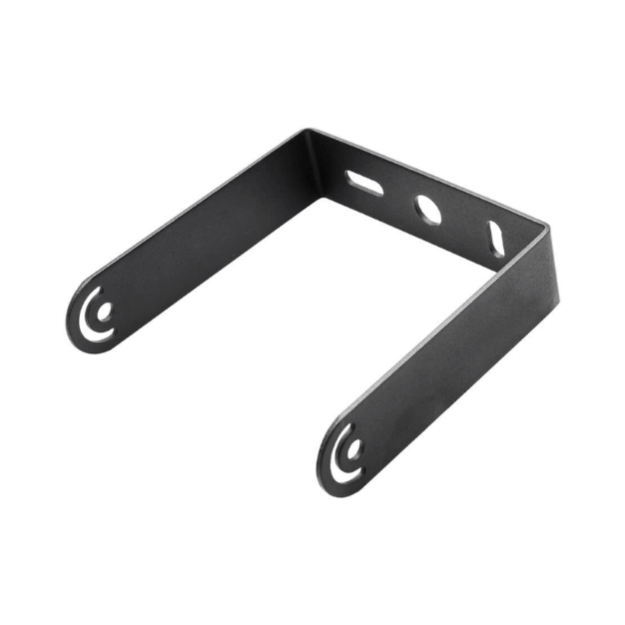

  • Mounting U Bracket

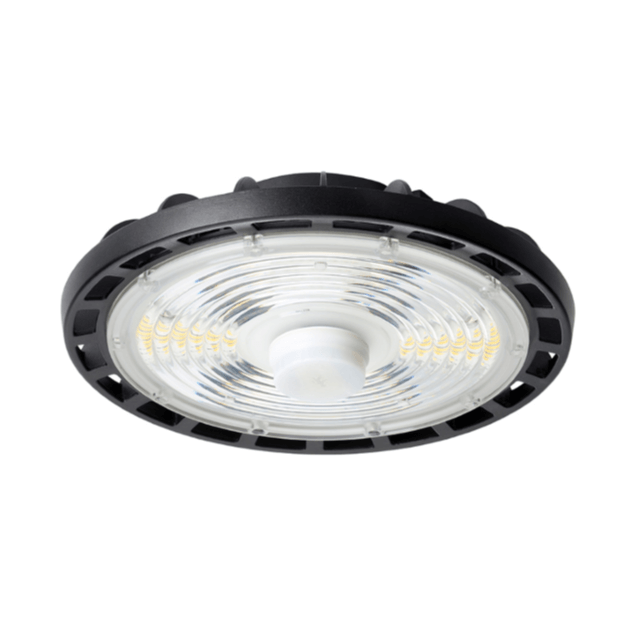

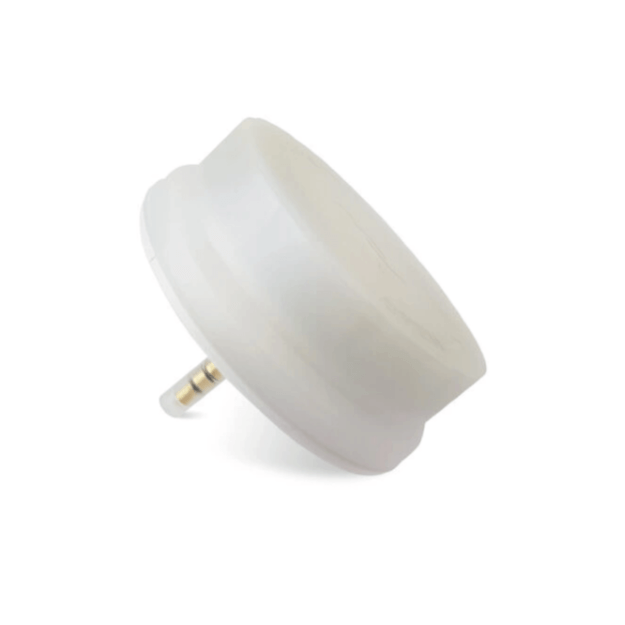

  • Plug-In Microwave Sensor

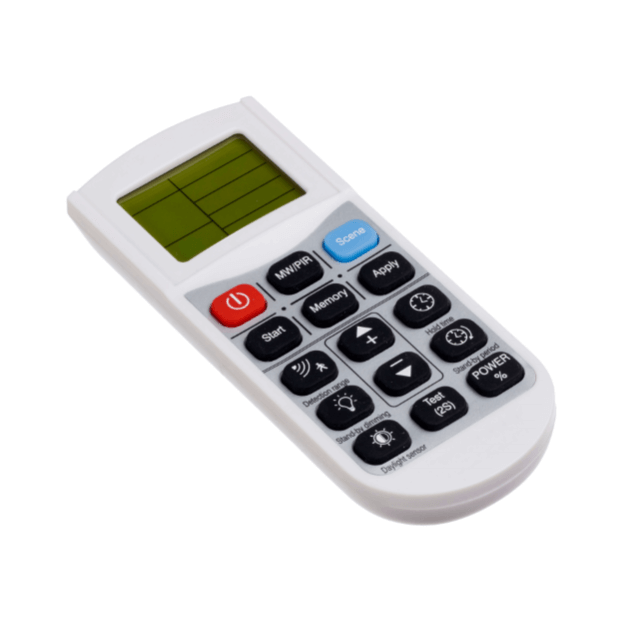

  • Hand Held Remote Control

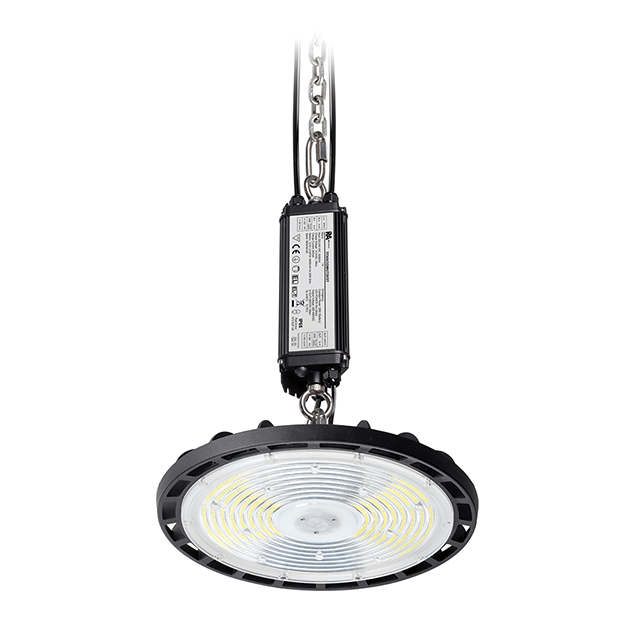

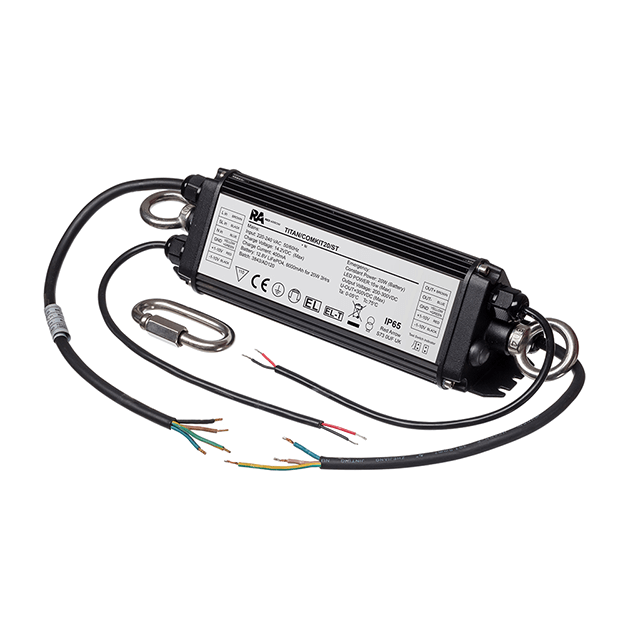

  • Titan Commando Emergency Kit IP65 Self Test

There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.

Specification:

  • Body Material: Aluminium
  • Lens Material: Polycarbonate
  • Colour Temp: Selectable from 4000k, 5200k or 6500k
  • Body Colour Finish: Black
  • 5 Year Guarantee, 2 Year On-Site Warranty
  • LED Lifetime: L70B50 > 50,000 Hours
  • CRI: Ra>80
  • IP65 Rating
  • IK Rating: IK08
  • Working Temperature: -40 degC to 50 degC
  • Power factor: 0.95
  • Electrical Class: Class 1

Model Options:

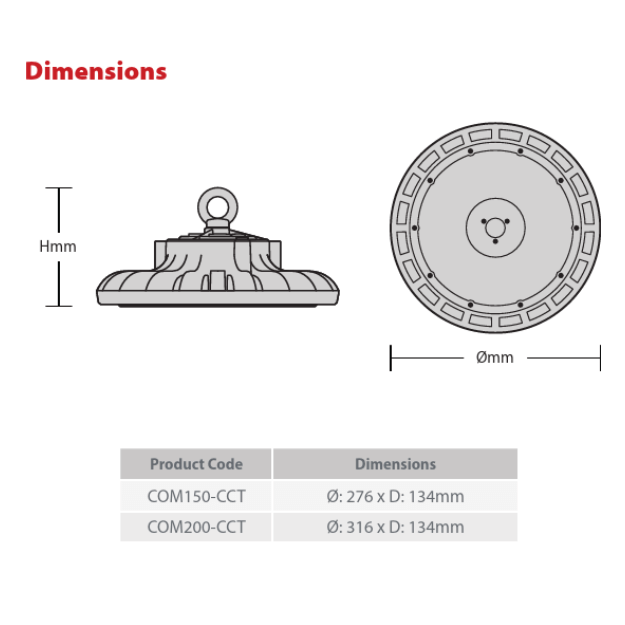

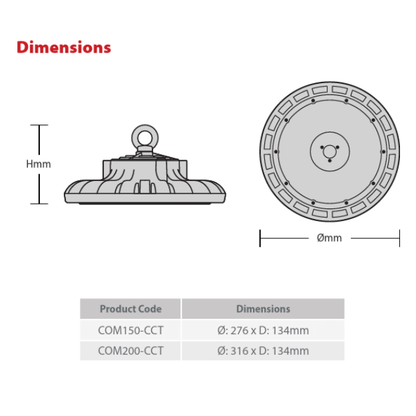

Product Code  Description Wattage Lumen Output Dimensions
COM150-CCT High Bay 100-150W 100w 14,000 lm Dia276xD134mm
COM150-CCT High Bay 100-150W 125w 17,500 lm Dia276xD134mm
COM150-CCT High Bay 100-150W 150w 21,000 lm Dia276xD134mm
COM200-CCT High Bay 120-200W 120w 16,800 lm Dia316xD134mm
COM200-CCT High Bay 120-200W 150w 21,000 lm Dia316xD134mm
COM200-CCT High Bay 120-200W 200w 28,000 lm Dia316xD134mm
