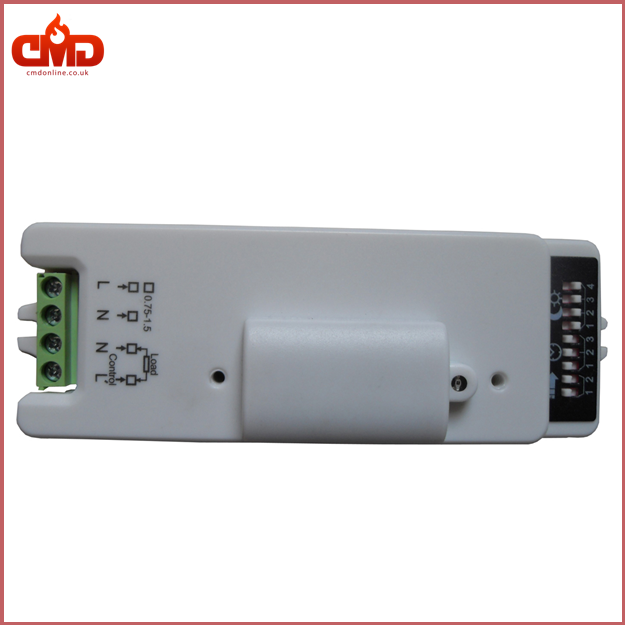

The 1200W Microwave Sensor suitable for our LED Non-Corrosive Lighting range...
- Model: CMDWFLEDMS
- Voltage: 220-240V, 50/60Hz
-
HF System: 5.8GHz 75 MHz, ISM wave band
- Max Load: 400W inductive, 800W resistive
- Transmission Power: 0.5mW max.
- Function: Control the lighting ON/OFF.
- Installation: Wall or ceiling mounted.
- Detection Zone: Diameter 8m max.
- Detection Sensitivity: 25%, 50%, 100%
- Time Setting: 5 Seconds / 1 minute / 5 minutes / 15 minutes / 30 minutes
- Mounting Height: Max 6m, recommended 3-4m.
-
Detection Angle: 150 deg (wall installation) 360 deg (ceiling installation)
- IP Rating: IP20
- Dimensions: L: 115 x W: 37 x D: 25mm
-
Working Temp.: -35 degC - 50 degC
- Light Control: 2 to 2000Lux, adjustable
