Red Arrow 18w Diecast LED Round Bulkhead - DBR18

Red Arrow's 18w LED Diecast Bulkhead fittings (DBR18) – a blend of timeless design and rugged functionality, tailored for various outdoor lighting needs.

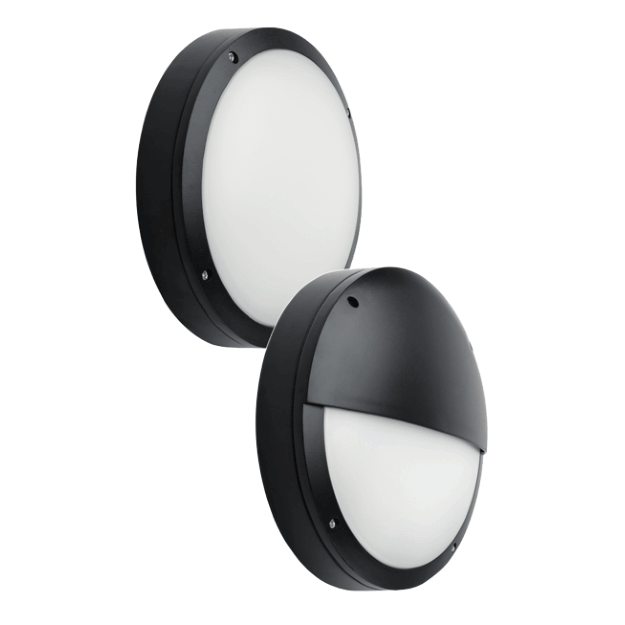

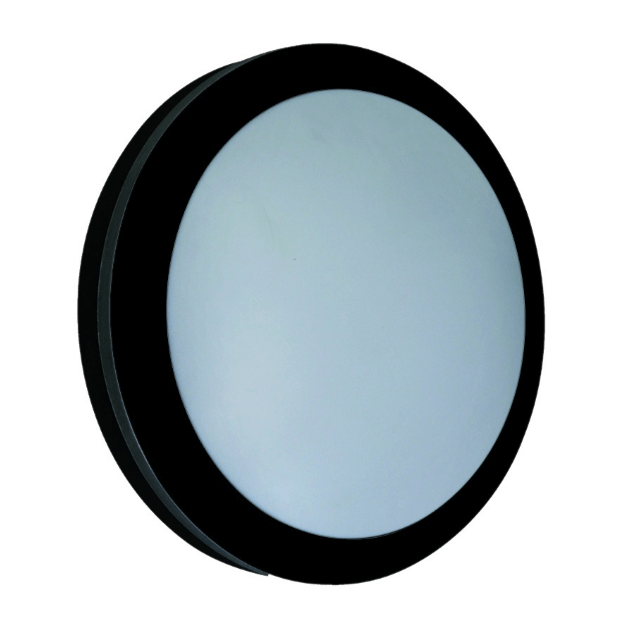

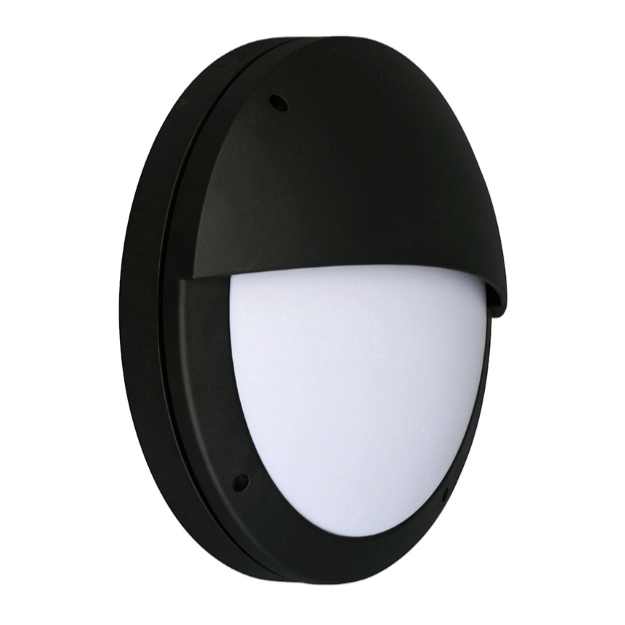

These bulkheads offer two versatile options: a classic full diffuser and an understated eyelid version. Perfectly suited for illuminating walkways, entrances, and open spaces, they effortlessly combine style with purpose.

Built to endure the elements, the DBR Bulkheads boast an impressive IP65 and IK10 rating, ensuring their resilience against outdoor challenges. Rain or shine, these fixtures continue to shine brightly, providing reliable illumination that you can count on.

Red Arrow stand by the quality and durability of their DBR Die-Cast IP65 LED Bulkheads, which is why they are offering a comprehensive 5-year warranty. Additionally, to provide you with even more peace of mind, we offer a 2-year on-site replacement warranty, ensuring that you're covered in the rare event of any unforeseen issues.

Key Features:

  • Attractive, classic design with full or eyelid diffuser
  • IP65 & IK10 rated for robust outdoor applications
  • Integral emergency options available
  • Photocell options for dusk to dawn operation

For added convenience, the bulkheads are available with integral emergency options, guaranteeing continued illumination during power outages. You can also opt for photocell technology, enabling automated dusk-to-dawn operation – a hassle-free lighting solution.

Choose the DBR Die-Cast IP65 LED Bulkheads to elevate your outdoor lighting game. With their enduring design, robust features, and optional functionalities, they offer a practical and stylish lighting solution for various outdoor spaces.

There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.


  • Body Material: Diecast aluminium
  • Diffuser Material: Polycarbonate
  • Body Colour: Finish: Black
  • Lumen Output: 1400lm (220lm in emergency mode)
  • Emergency Battery Type: Lithium
  • Colour Temp: 4000k
  • Guarantee: 5 Years (Batteries 1 Year)
  • LED Lifetime: L70B50 50,000 Hrs
  • Working Temperature: -20 degC to 45 degC (Emergency 0 degC to 45 degC)
  • CRI: Ra>80
  • Power Factor: >0.9
  • IP Rating: IP65
  • IK Rating: IK10
  • Electrical Class: 1
  • Input Voltage: 230v
