Red Arrow Bastion Edge Lit TP(b) LED Panel

Red Arrow's Bastion Edge Lit TP(b) LED Panel (BLP) is available in a wide range of lumen outputs and sizes.

The Bastion is a popular edge-lit panel, ideal for projects where you are mindful of striking a balance between efficiency and price.

Bastion LED Panel Features:

  • TP(b) rated diffusers

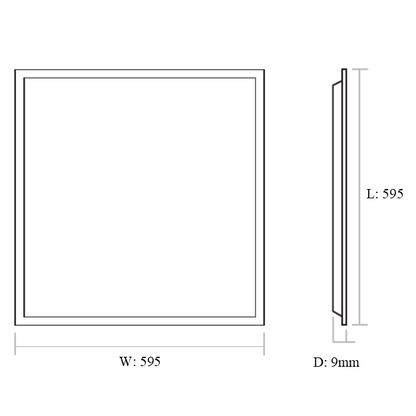

  • Shallow profile of only 9mm deep.
  • Flicker free drivers
  • Dimmable drivers and emergency conversion kits available.
  • Surface Mounting Kits are available here.

Size and Colour Output Options:

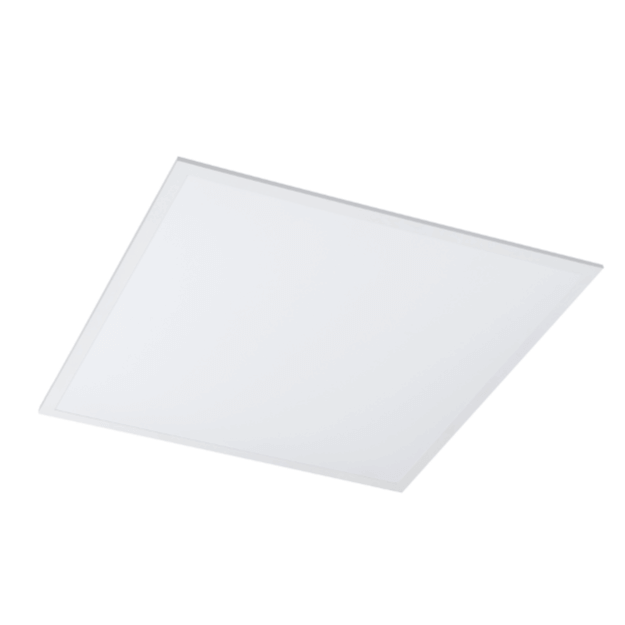

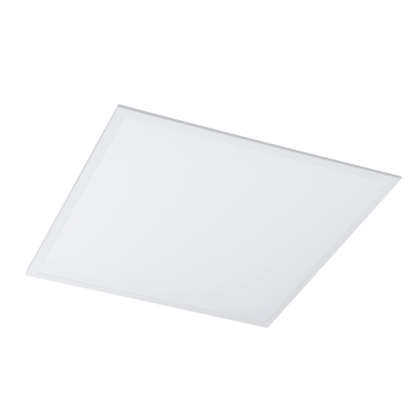

  • BLP6636 (600x600):
    • BLP6636-40 (4000k, 36w, 3240lm)
    • BLP6636-60 (6000k, 36w, 3240lm)

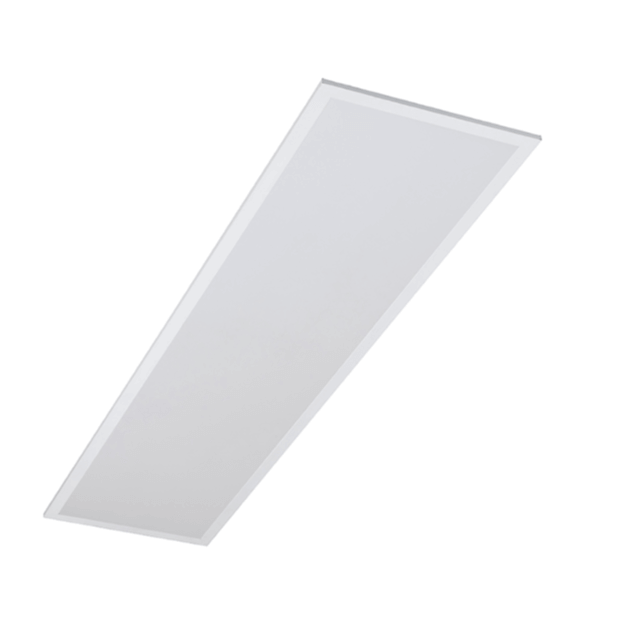

  • BLP12336 (300x1200):
    • BLP12336-40 (4000k, 36w, 3240lm)
    • BLP12336-60 (6000k, 36w, 3240lm)

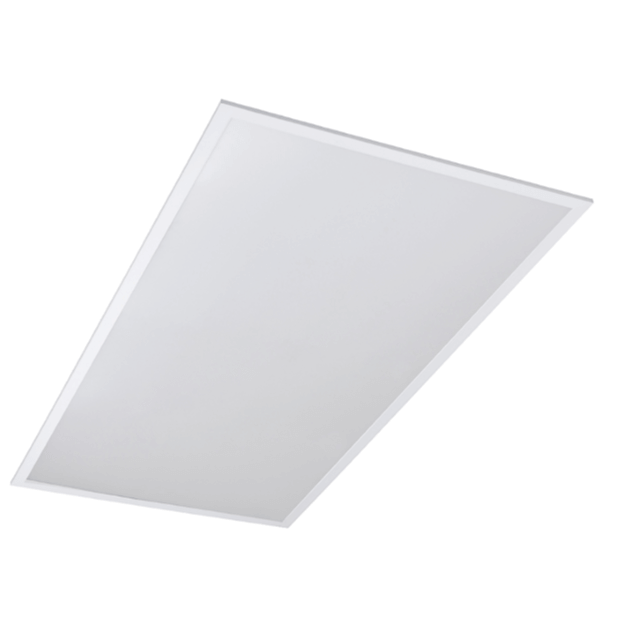

  • BLP12660 (600x1200):
    • BLP12660-40 (4000k, 60w, 5400lm)
    • BLP12660-60 (6000k, 60w, 5400lm)

A great quality panel for the price, they are supported by a 5 year warranty, with 2 year on-site warranty. Ideal for Offices, Schools, Leisure Centres and Hospitality Areas.

Bastion LED Panel Specification:

  • Body and Frame Material: Aluminium
  • Colour Temperature: 4000k or 6000k
  • Body Colour Finish: RAL9016 White
  • CRI: Ra>80
  • LED Lifetime: L70B50 50,000 Hrs
  • IP Rating: IP20
  • IK Rating: IK04
  • Working Temperature: -20 degC to 50 degC
  • Power Factor: 0.9
  • Electrcial Class: Class II
  • Guarantee: 5 Years

There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.
