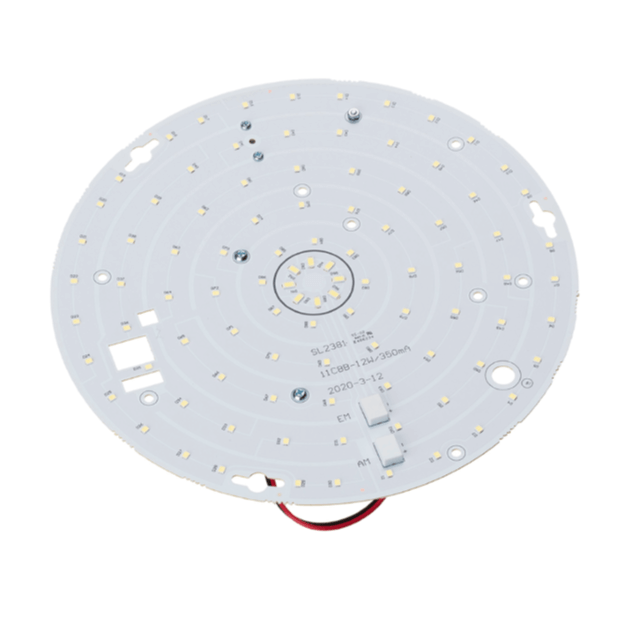

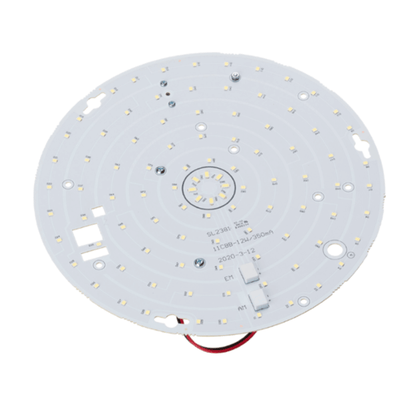

Red Arrow Circular Gear Trays 13w LED - GTC13 - Alternative to 2D Lamps

Red Arrow's 13W LED Circular Gear Trays (GTC13) redefine energy-efficient lighting, offering a smart alternative to traditional 2D Lamps.

Primarily suited for Offices, Public Buildings, and Factories, these gear trays redefine illumination standards.

Designed for effortless integration, these circular gear trays seamlessly complement our empty body ROBUST bulkheads. Retrofit them into existing 2D lamp bodies for a seamless transition to modern, cost-effective lighting solutions.

Features

  • Improved efficacy of up to 138 lm/W
  • Emergency & microwave sensor options available.
  • Fitted with integral LED driver
  • Designed for POLO X and Robust empty body circular bulkhead fittings
  • Also suitable as a replacement tray for a wide range of other proprietary bulkhead luminaires including 2D lamp, subject to fixing centres and thermal considerations.

Tailor your setup with optional features, including 3hr Emergency, Corridor Function, and Microwave Sensor choices. Trust in the longevity of these high-quality LED gear trays, supported by a substantial 5-year guarantee.

Upgrade your lighting approach with the Red Arrow 13W LED Circular Gear Trays (GTC13-40), blending efficiency, adaptability, and durability for a lighting solution that perfectly aligns with practical needs.

(Emergency Battery carries a 1 year guarantee).

There is normally a 1 to 2 working day lead time on these items, but as always, we'll keep you up to date.

Technical Details.

Model Description Colour Output

GTC13-35

(replaces E15LED)

Circular Gear Tray

13w 3500k

3500K 1800 lm

GTC13-57

(replaces E15LED-60)

Circular Gear Tray

13w 5700k

5700K 1800 lm

GTC13E-57

(replaces E15LEDEM)

Circular Gear Tray

13w 3500k 3hr Em

3500K

1800 lm

190lm in Em

GTC13E-57

(replaces E15LEDEM-60)

Circular Gear Tray

13w 3500k 3hr Em

5700K

1800 lm

190lm in Em

GTC13/MS-35

(replaces E15LEDMS)

Circular Gear Tray

13w 3500k

Microwave Sensor

3500K

1800 lm

GTC13/MSCF-35

(replaces E15LEDMSDIM)

Circular Gear Tray

13w 3500k

Microwave Sensor and Corridor Function

3500k

1800 lm

GTC13E/MS-35

(replaces E15LEDEMMS)



Circular Gear Tray

13w 3500k 3hr Em

Microwave Sensor

3500k



1800 lm

190lm in Em



GTC13E/MSCF-35

(replaces E15LEDEMMSDIM)

Circular Gear Tray

13w 3500k 3hr Em

Microwave Sensor and Corridor Function

3500k



1800 lm

190lm in Em

Notes:

E = Emergency Version 3hr

MS = Microwave Sensor (Motion Sensor)

CF = Corridor Function (Auto Dimming to save energy)

Specification:

  • Input Voltage: 230v

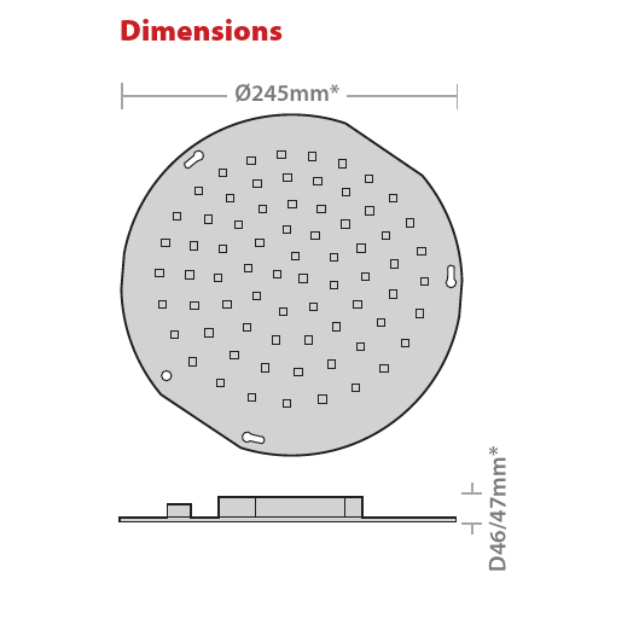

  • Dimensions: 245 x 47mm
  • Colour Temperature: 3500k or 5700k
  • Guarantee: 5 years
  • Working Temp: -20 degC to 40 degC (0 degC to 40 degC for Emergency Model)
  • CRI: RA>80
  • Efficacy: 138 lm/W
  • Lumen output: 1800 lm (190 lm in Emergency Mode)
  • Electrical Class: Class 2 double insulated, no earth required.
