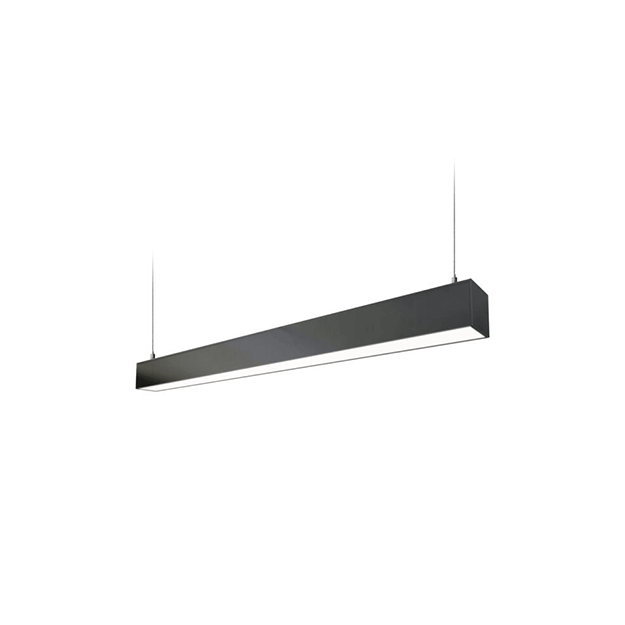

Red Arrow Laser Linear Suspended LED Luminaire, IP40, Dimmable, Selectable CCT

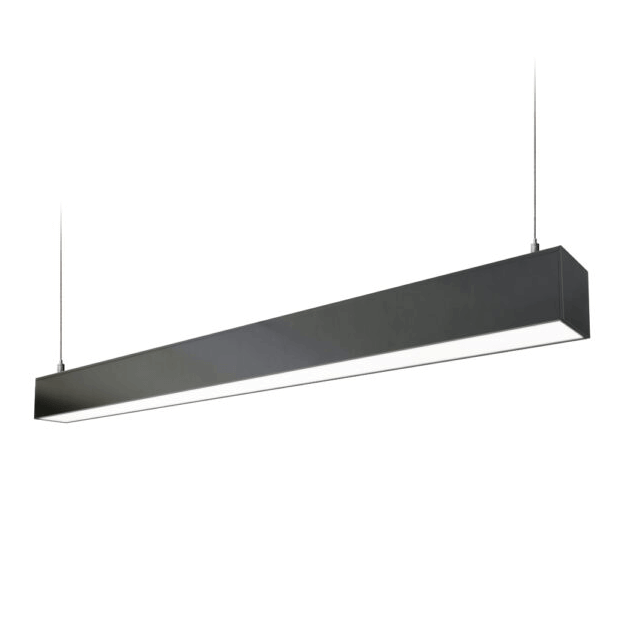

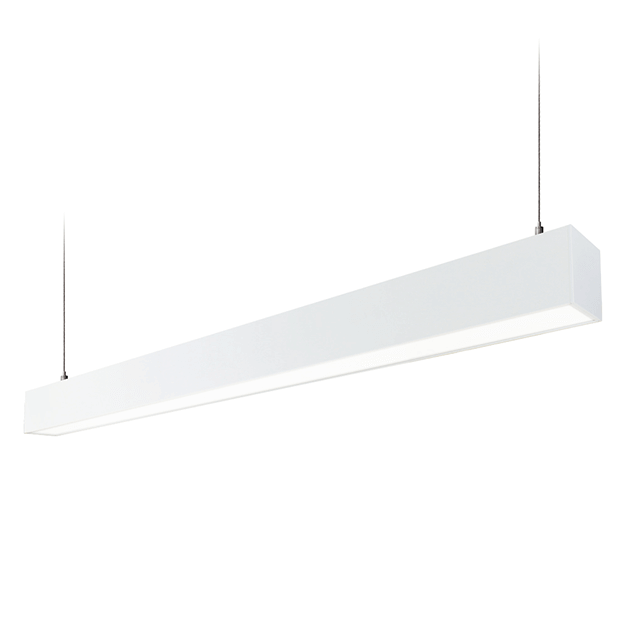

The Red Arrow Laser Linear Suspended LED Luminaire (LAS) is a range of sleek, monolithic LED luminaires suitable for both surface and suspension mounting, offering a versatile lighting solution for practically any interior application.

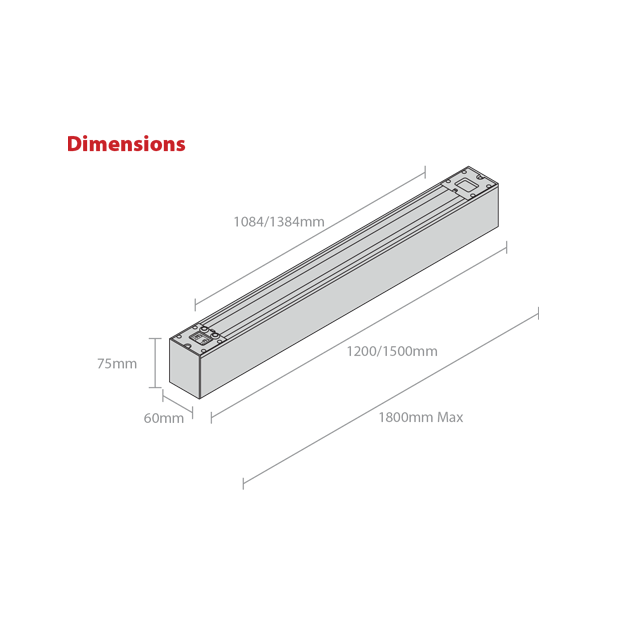

Every luminaire is pre wired with 2m clear cable and 2 x mounting brackets for wire suspension (1.8 Max) or surface fixing. Made from sleek aluminum, this collection offers a modern appearance for both large spaces and focused lighting needs.

Plus, you can choose from these different options below:

Product Code Description Diffuser
LAS4P/B/CCT Laser Linear Suspended Luminaire 1200mm Black Opal
LAS4P/W/CCT Laser Linear Suspended Luminaire 1200mm White Opal
LAS5P/B/CCT Laser Linear Suspended Luminaire 1500mm Black Opal
LAS5P/W/CCT Laser Linear Suspended Luminaire 1500mm White Opal



 Additionally, consider the Laser Uplight Modules with the specified features below.

Product Code Description Diffuser
LAS4/B/UP/CCT Laser Uplight Module 1200mm
Black
Opal (Indirect)
LAS4/W/UP/CCT Laser Uplight Module 1200mm
White
Opal (Indirect)
LAS5/B/UP/CCT Laser Uplight Module 1500mm
Black
Opal (Indirect)
LAS5/W/UP/CCT Laser Uplight Module 1500mm
White
Opal (Indirect)

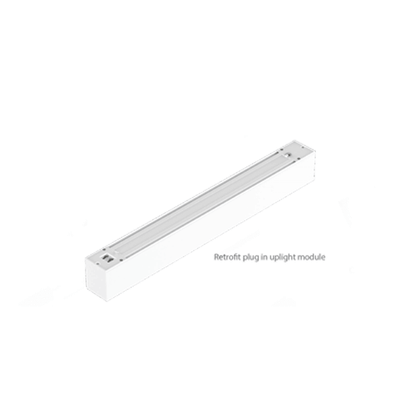

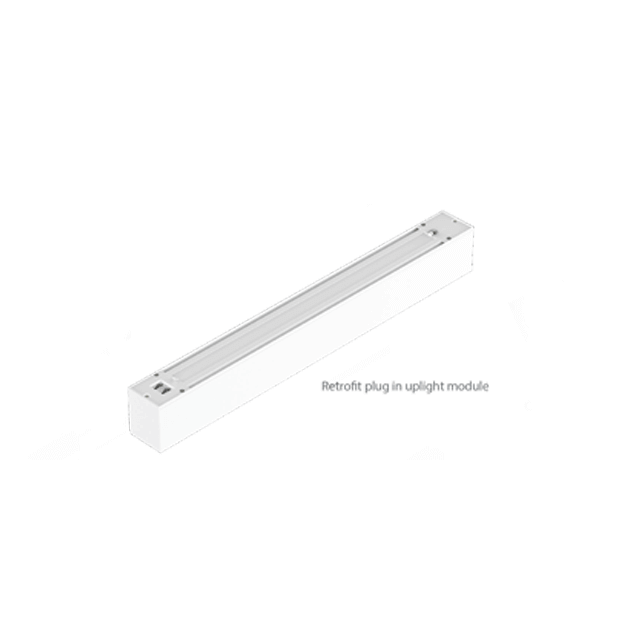

The Uplight Module comes with a plug and socket for easy plug-in connection. The module shares the output from the existing driver, decreasing the downward light component by approximately 30%, while maintaining the same overall output.

 If needed, you can purchase the Retrofit Laser Linear Microprism Diffuser in either 1200mm (LAS4/MP) or 1500mm (LAS5/MP).

Key Features:

  • Sleek, modern design: Enhance your interior ambience with the LASER LINEAR's sleek and contemporary profile.
  • Versatile mounting options: Choose between surface or suspension mounting to suit your specific lighting needs.

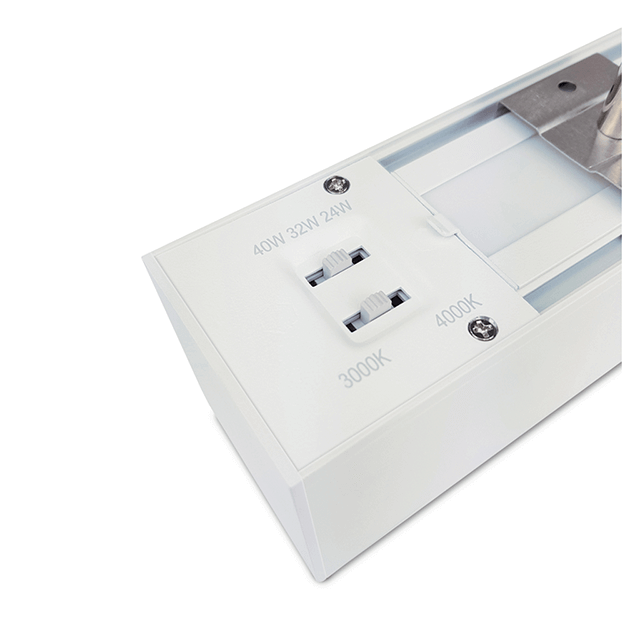

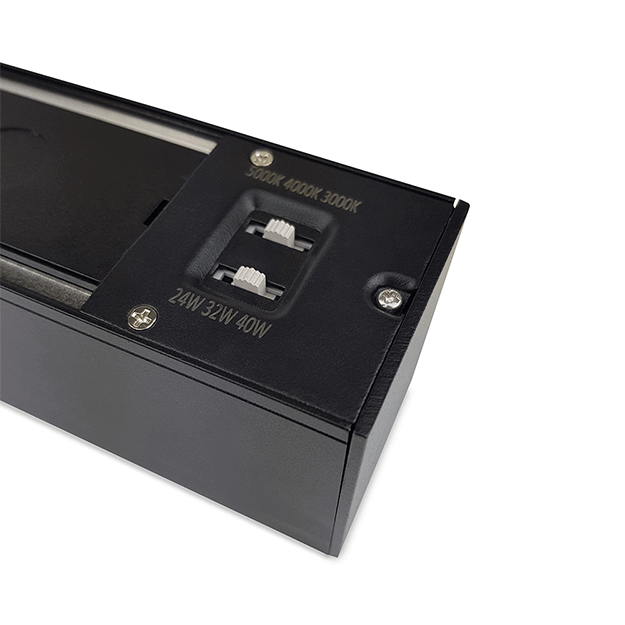

  • Selectable wattage and colour temperature (CCT):Customize your lighting ambience with selectable wattage and colour temperature options, including warm white (3000K) or neutral white (4000K).
  • 0-10V dimmable as standard: Adjust the light intensity to create the desired atmosphere.
  • Available in black or white finish: Choose between black (RAL9011) or white (RAL9016) finishes to complement your décor.
  • Supplied with mounting kit: The LASER LINEAR comes with a complete mounting kit for both surface and suspension mounting.
  • Choice of Diffusers: Select between opal diffusers for soft, diffused light or microprism controllers for direct and controlled illumination.
  • Optional Retrofit Plug-in Uplight Module: Enhance your lighting scheme with the optional retrofit plug-in uplight module, providing a blend of direct and indirect light (70% Direct / 30% Indirect).
  • Excellent Efficacy: Enjoy energy efficiency with the LASER LINEAR's impressive efficacy of 120lm/W.

Applications:

  • Offices
  • Commercial Spaces
  • Retail Environments
  • Hospitality Settings
  • Educational Facilities

Specification:

  • Material: Body: Extruded Aluminium
  • Diffuser: PMMA
  • Colour Temperature: 3000K/4000K Selectable
  • Colour Finish: Black (RAL9011) / White (RAL9016
  • CRI: Ra>80
  • LED Lifetime: L70B50 85,000 Hrs / L80B50 54,000 Hrs
  • IP Rating: IP40
  • Working Temperature: -20 Celsius to 40 Celsius
  • Power Factor: >0.9
  • Electrical Class: Class I
  • Guarantee: 5 Years

Leadtime - When will you receive your order?

We dropship these products straight from our distributor's warehouse to help get them to you as quickly as possible at the best price. UK Mainland Express Delivery is generally 1 to 2 working days from the time we receive your order.
