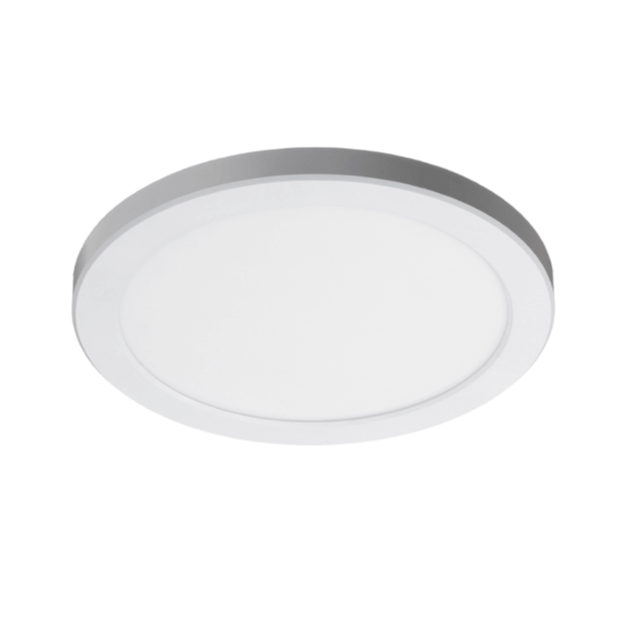

Red Arrow LED Circular Discus MAX Downlight - CCT and Wattage Selectable Fitting

Red Arrow's DISCUS MAX (DSM1528-CCT) takes the Discus family to new heights – a smart and slim downlight that revolutionizes lighting options.

Offering both wattage and colour temperature selectability, DISCUS MAX is the epitome of versatility. This luminaire effortlessly marries a sleek design with customizable illumination.

Key Features:

  • Wattage and colour temperature selectability for tailored lighting preferences.
  • Seamlessly replaces existing downlights with its innovative adjustable bracket.
  • Perfectly fits cutouts ranging from 65mm to 310mm.
  • Empower your lighting with a slim and sophisticated design.

DISCUS MAX offers the ultimate freedom in lighting. Its wattage and colour temperature selectability allows you to craft your desired ambience with precision. Whether you seek vibrant daylight or cosy warm tones, DISCUS MAX delivers.

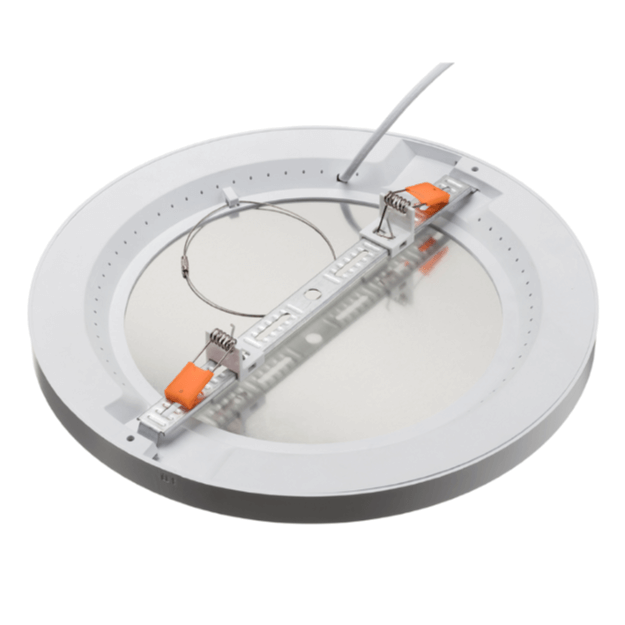

The innovative adjustable bracket makes installation a breeze, seamlessly replacing existing downlights. It's designed to fit cutouts ranging from 65mm to 310mm, ensuring a hassle-free upgrade.

DISCUS MAX isn't just a luminaire – it's a statement of lighting innovation. Elevate your space with the DISCUS MAX, where adaptability meets style, and every corner is illuminated to perfection.

There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.


Technical Details:

 Model Wattage and Lumen Output



Weight (kg)

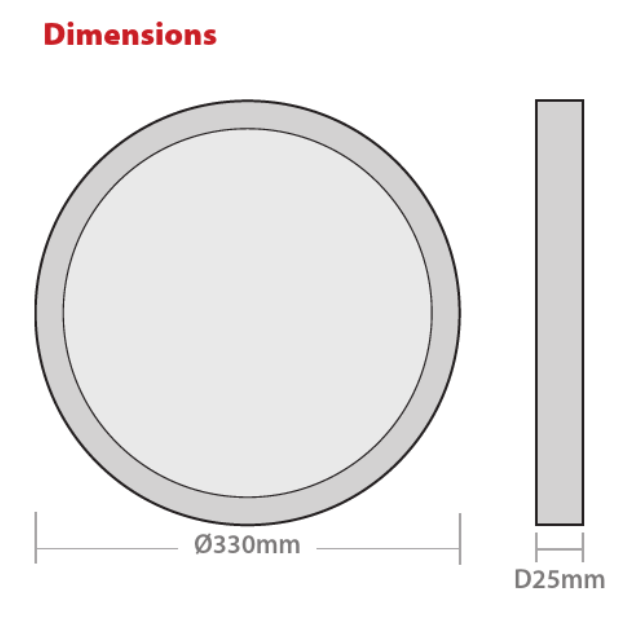

Dimensions

LxWxD mm

DSM1528-CCT

15w: 1200 to 1400 lm

22w: 1800 to 2000 lm

28w: 2300 to 2500 lm

1.05 kg
330 x 25mm
DSM1528PIR-CCT

15w: 1200 to 1400 lm

22w: 1800 to 2000 lm

28w: 2300 to 2500 lm

1.05 kg
330 x 25mm


    Key Features:

    • Body Material: Polycarbonate
    • Diffuser Material: PS
    • Colour Temperature: Selectable3000k, 4000k or 5700k
    • Colour Finish: White
    • CRI: Ra>80
    • LED Lifetime: L80B50 30,000 Hrs
    • IP Rating: IP20
    • IK Rating: IK04
    • Working Temperature: -20 degC to 40 degC
    • Power Factor: >0.9
    • Electrical Class: Class II (no earth required)
    • Guarantee: 3 Years includes 1 Year on-site replacement warranty.
