Red Arrow LED Circular Discus Ultra-Slim Wattage Selectable Fitting - DSC1018-40

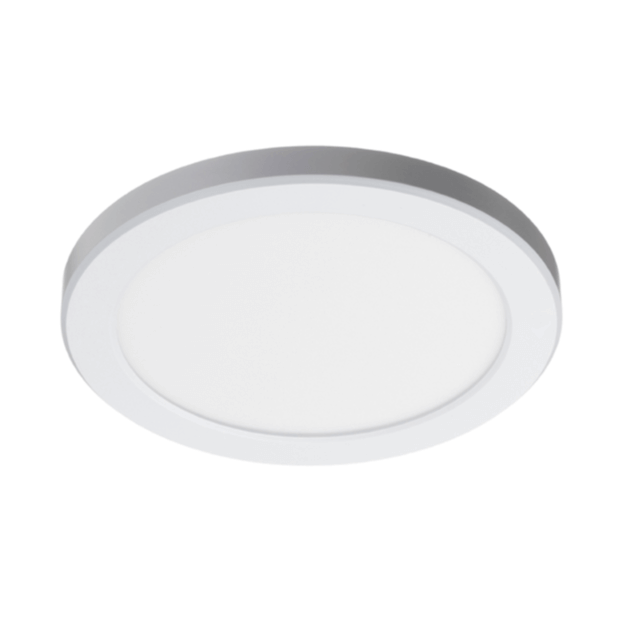

Red Arrow's Discus fitting (DSC1018-40) is part of a stylish collection of luminaires that redefine the brand.

Available in versatile options, including dimming, wattage selectable, and wattage selectable with PIR sensor, Discus illuminates your environment with a touch of sophistication.

Key Features:

  • Ultra-thin profile design, a mere 18mm deep, for a sleek and unobtrusive look.

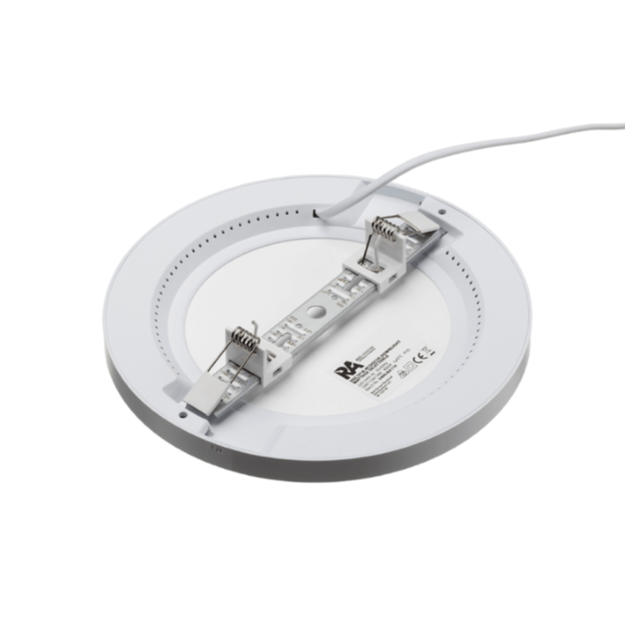

  • Adjustable bracket for both surface and semi-recessed mounting – easily fits into existing cut-outs of 65-205mm.
  • Wattage selectable feature for tailored lumen output.
  • Comes with a pre-wired 30cm cable for hassle-free installation.

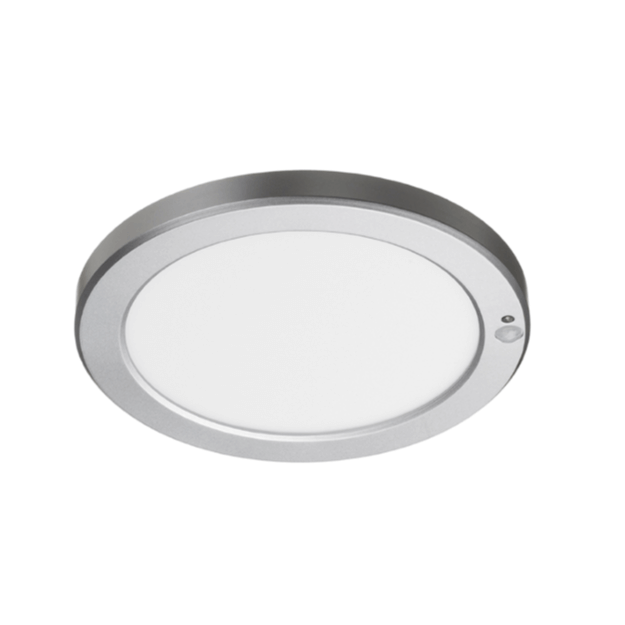

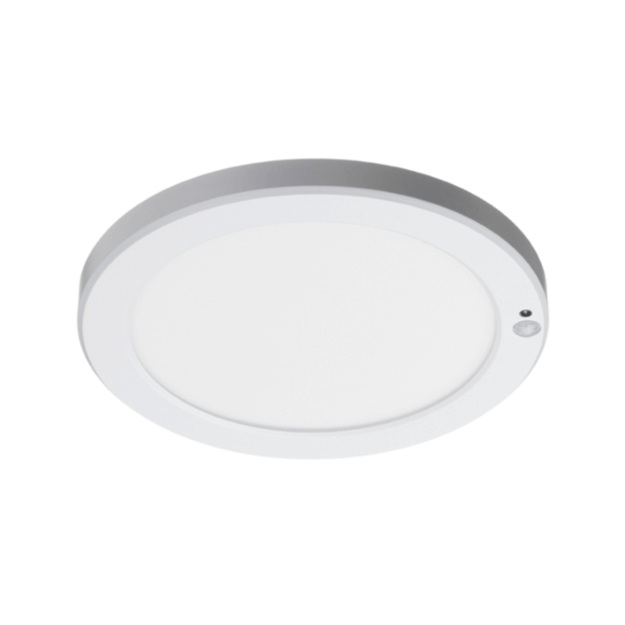

  • Integral PIR sensor version available for enhanced convenience and energy efficiency.
  • Dimmable option for creating the perfect ambience.

The LED Circular DISCUS Downlight Fittings effortlessly transition from home to commercial environments, embodying the perfect blend of form and function.

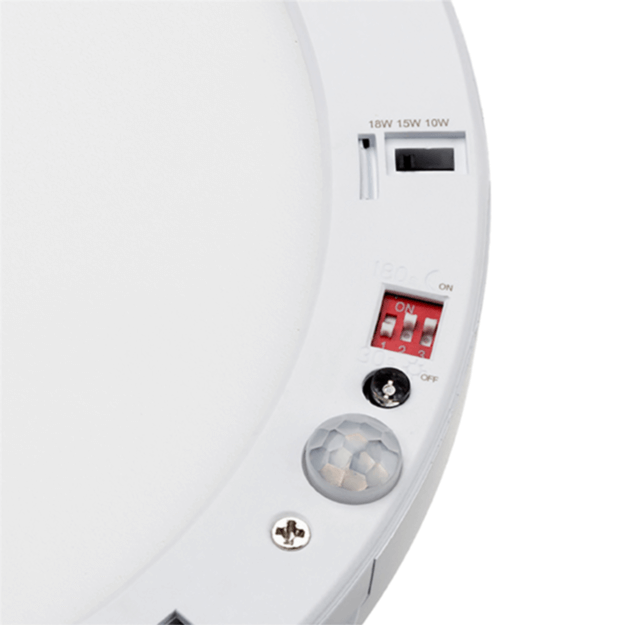

With an IP20 rating, they offer reliability and versatility. A selector switch lets you choose from three wattages (10w, 15w, or 18w) in a 4000k colour temperature, ensuring the ideal lighting for any setting.

Quality is our commitment – these LED fittings are backed by a 3-year guarantee and 1-year On-Site Warranty ensuring peace of mind.

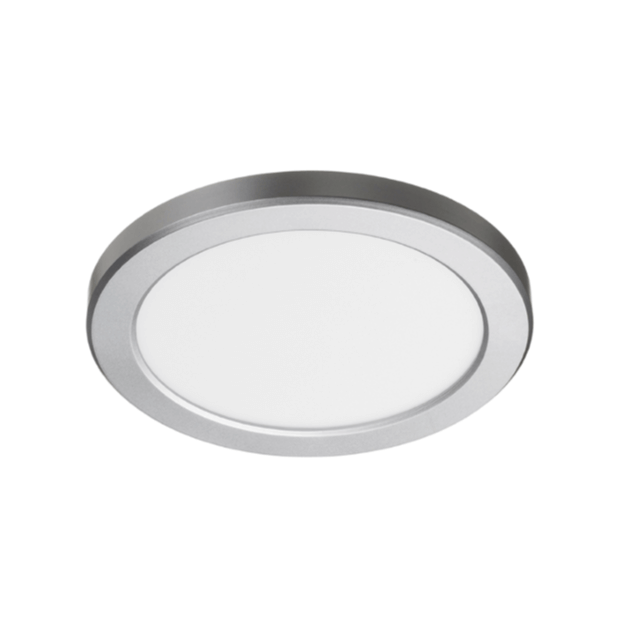

Customize your lighting experience further with the dimmable option and the choice of a white or silver bezel.

Installation is a breeze – Discus luminaires can be surface-mounted or adjusted to fit existing cutouts, ranging from 65 to 205mm. Whether you're enhancing the ambience of residential homes, commercial sites, or retail stores, Discus shines as your go-to lighting solution.

There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.

Technical Details...

 Model Description

Lumen

Output

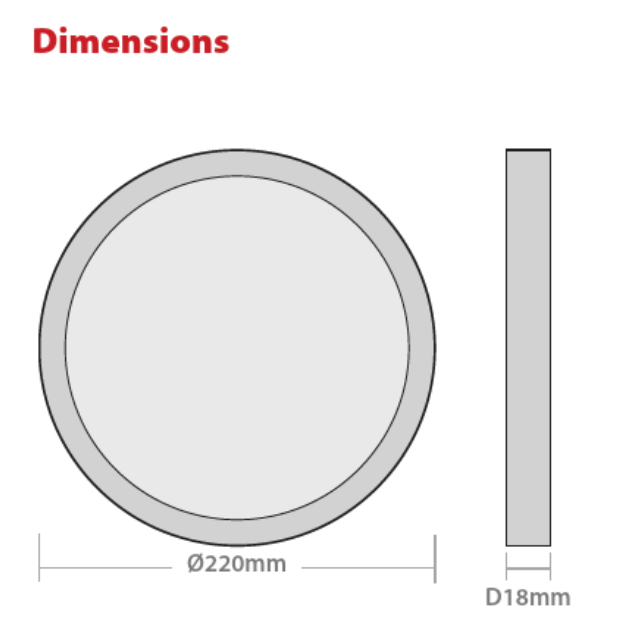

Dimensions

LxWxD mm

DSC18D-40
18W Dimmable 4000K DISCUS Downlight 1450lm 220 x 18mm
DSC1018-40
10W/15W/18W 4000K DISCUS Downlight 950 / 1350 / 1500lm 220 x 18mm
DSC1018PIR-40
10W/15W/18W 4000K DISCUS Downlight with PIR Sensor 950 / 1350 / 1500lm 220 x 18mm

    Key Features:

    • Body Material: Aluminium
    • Diffuser Material: PS
    • Colour Temperature: 4000k
    • Colour Finish: White
    • CRI: Ra>80
    • LED Lifetime: L80B50 25,000 Hrs
    • IP Rating: IP20
    • IK Rating: IK04
    • Working Temperature: -25 degC to 40 degC
    • Power Factor: >0.5 (dimmable model >0.9)
    • Electrical Class: Class II (no earth required)
    • Guarantee: 3 Years includes 1 Year on-site replacement warranty.
