Red Arrow FKF2250W 22m Connectable 110v LED Festoon Kit
Red Arrow FKF2250W 22m Connectable 110v LED Festoon Kit
Couldn't load pickup availability

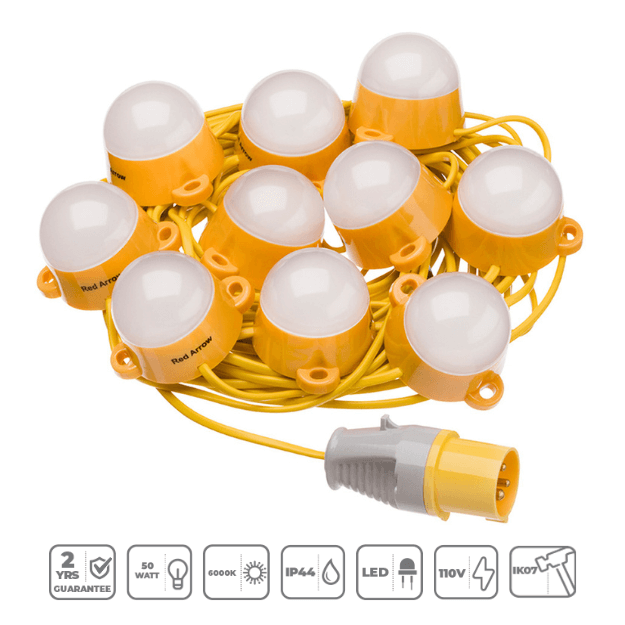

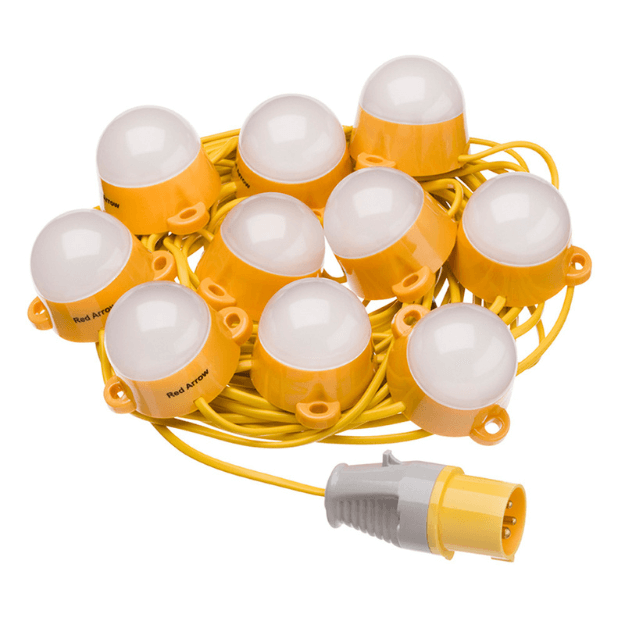

22m connectable LED festoon lighting with 10 integrated LED heads for 110v site supplies.
The FKF2250W provides 10 integrated LED heads across a 22m run, producing 5,500 lumens from 50W at a 6000K daylight colour temperature.
Applications
Applications

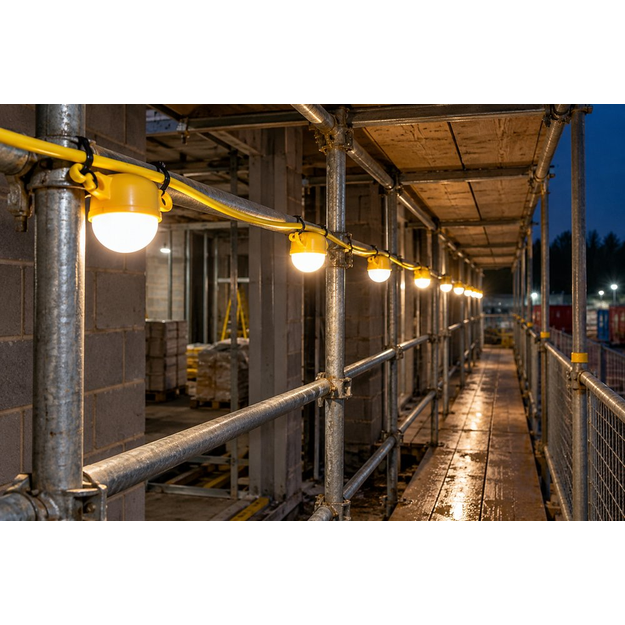

The FKF2250W is designed for temporary and site lighting applications, including:
- Construction sites
- Scaffolding
- Temporary works
- Walkways and access routes
- Fit-outs and refurbishment
- Industrial and maintenance environments
What's Included
What's Included
The FKF2250W is supplied as a 22m 110v LED festoon kit with:
- 22m festoon lighting run
- 10 integrated LED heads
- 110v 16A 2P+E IP44 industrial plug
- Drawstring carry bag
- Connectable plug-and-play system
FKS30YPW splitter cable is not included and is available separately where branching the festoon layout is required.
Compatibility
Compatibility
Red Arrow Connectable Festoon System
The FKF2250W forms part of the Red Arrow connectable festoon system.
The supplied kit is 22m long and compatible Red Arrow festoon kits can be connected to create a lighting run of up to 150m total connected length.
The connectable system should not be interpreted as universal compatibility with unrelated festoon products.
Need to branch the lighting run?
The Red Arrow FKS30YPW Splitter Cable is available separately and allows the compatible festoon system to branch in different directions.
Compliance & Warranty
Compliance & Warranty
The FKF2250W has a 2-year warranty.
Compliance: [Approved current UKCA/CE wording to be populated from the approved current manufacturer/document source.]
Installation / Documentation
Installation / Documentation
The FKF2250W uses a connectable system designed for linking compatible Red Arrow festoon kits.
Product documentation
- FKF2250W installation instructions
- FKF2250W specification sheet
- FKF2250W LDT file
FAQs
FAQs
How long is the Red Arrow FKF2250W?
The FKF2250W is supplied as a 22m festoon lighting kit with 10 integrated LED heads.
What voltage is the FKF2250W?
It is designed for a 110v supply and is supplied with an industrial 3-pin, 16A plug.
How many LED heads does it have?
The kit has 10 integrated LED heads.
What is the spacing between the LED heads?
The confirmed head spacing is 2.2m across the 22m kit.
How much light does it produce?
The 10 LED heads produce a total output of 5,500 lumens at a 6000K daylight colour temperature.
Can the festoon be extended?
Yes. The FKF2250W is a connectable festoon kit and compatible Red Arrow kits can be linked together to create a longer lighting run.
The current maximum connected system length is 150m.
Is the splitter cable included?
No. The FKS30YPW splitter cable is ordered separately and can be used where the festoon system needs to branch in different directions.
Is the FKF2250W suitable for site lighting?
Yes. It is designed as 110v temporary/site lighting, including construction applications.
Can I connect it to any 110v festoon?
No assumption of universal compatibility should be made. The connectable system is specifically the Red Arrow compatible festoon system.

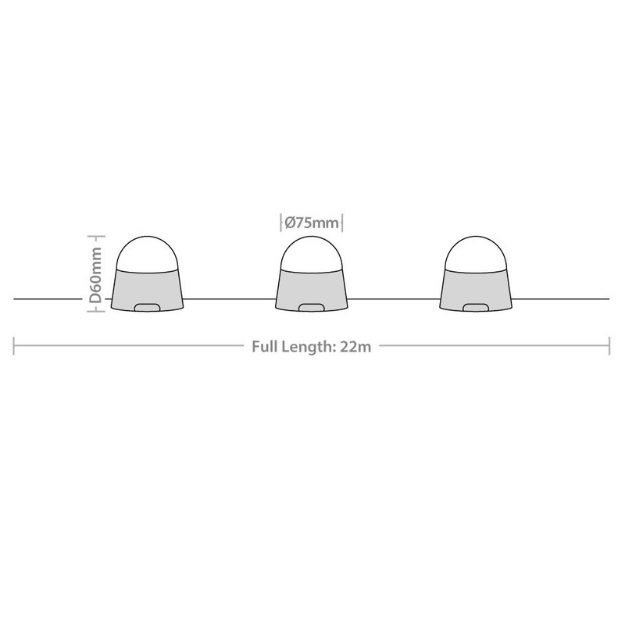

Key Specifications
| Specification | FKF2250W |
|---|---|
| Voltage | 110v |
| Length | 22m |
| LED heads | 10 integrated LED heads |
| Head spacing | 2.2m |
| Power | 50W total |
| Light output | 5,500 lm |
| Colour temperature | 6000K |
| Product type | Connectable LED festoon kit |
| Protection | IP44 |
| Impact rating | IK07 |
| Maximum connected system length | 150m |
| Net weight | 2.2kg |
Key Features
22m lighting run
The FKF2250W provides a 22m lighting run with 10 integrated LED heads, with confirmed head spacing of 2.2m.
110v site lighting
Designed for use with a 110v site supply, the kit is pre-wired with a 110v 16A 2P+E IP44 industrial plug.
5,500 lumen LED output
The 10 integrated LED heads provide 5,500 lumens of 6000K daylight illumination from a total 50W power rating.
Plug-and-play connection
The connectable design allows compatible Red Arrow festoon kits to be linked together to create a longer lighting run.
IP44 and IK07 rated
The FKF2250W has an IP44 rating and IK07 impact rating, with polycarbonate construction.
Extendable Red Arrow system
The 22m kit can form part of a compatible Red Arrow connectable system with a maximum connected length of 150m.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Red Arrow |
| Product code | FKF2250W |
| Product type | Connectable LED Festoon Kit |
| Supply voltage | 110v |
| Total power | 50W |
| Power per head | 5W |
| Length | 22m |
| Number of LED heads | 10 integrated LED heads |
| Head spacing | 2.2m |
| Light output | 5,500 lm |
| Colour temperature | 6000K |
| LED type | Integrated LED |
| Material | Polycarbonate |
| IP rating | IP44 |
| IK rating | IK07 |
| Plug | 110v 16A 2P+E IP44 industrial plug |
| Maximum connected system length | 150m |
| Net weight | 2.2kg |
| Warranty | 2 years |
| EAN | 5055807624350 |
