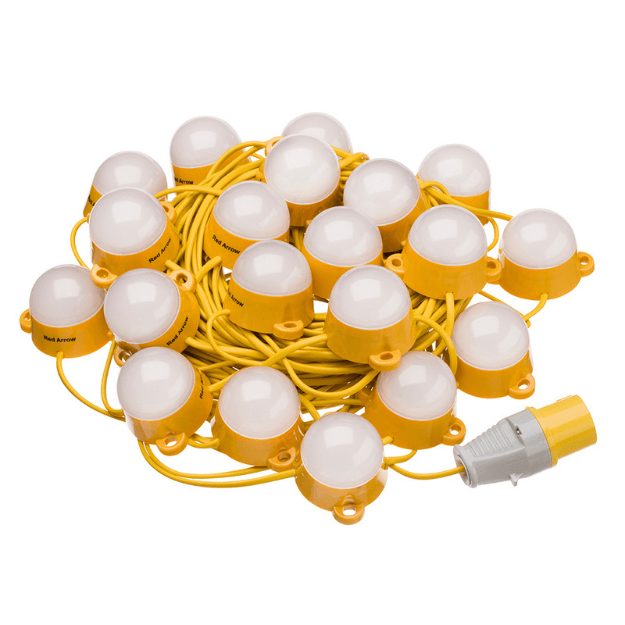

RED ARROW 110v LED Festoon Kit – 50m, FKF50100W (Connectable, 20‑Way)
RED ARROW 110v LED Festoon Kit – 50m, FKF50100W (Connectable, 20‑Way)
Couldn't load pickup availability
Reliable, extendable 110v festoon lighting for tough UK site conditions
The RED ARROW FKF50100W is a high output, 50 metre connectable festoon lighting kit built for UK construction and industrial environments. With 20 rugged LED heads delivering 11,000 lumens across 6000K cool white, this is your go to solution for safe, efficient site lighting day or night.
Extendable up to 200m with plug and play ease, this 110v system meets all key safety standards, making it ideal for contractors who need speed, compliance, and clarity on site.

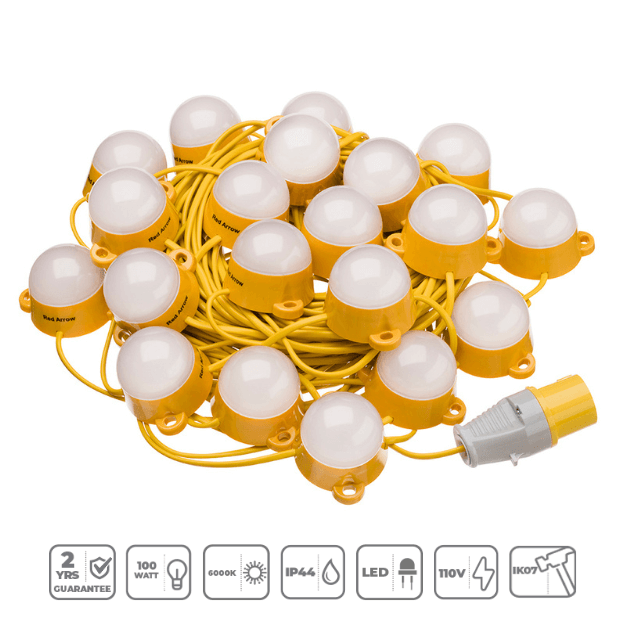

Key Features
- 110v site safe design with industrial 3 pin plug
- Extendable up to 200m using Red Arrow’s linkable connector system
- 11,000 lumens total (6000K colour temperature)
- 20 LED heads spaced evenly across 50m
- Energy efficient: 100W total draw (110 lm/W)
- IK07 impact rated tough polycarbonate housing
- IP44 weather resistant for indoor or temporary outdoor use
- High CRI (Ra >80) ideal for accurate colour recognition
- LED life: 35,000 hours (L70B50)
- Operating range: -20°C to +40°C
- 2 Year manufacturer warranty (Red Arrow Electrical)
- UKCA & CE approved, Class I electrical safety
Technical Specifications
| Product Code | FKF50100W |
| Length | 50m (extendable to 200m) |
| Power | 100W |
| Lumen Output | 11,000 lm |
| Colour Temp | 6000K (cool white) |
| Voltage | 110v |
| Plug Type | 3 pin 110v 16A industrial |
| LED Heads | 20 (fixed spacing) |
| Efficacy | 110 lm/W |
| Ingress Rating | IP44 (splash proof) |
| Impact Rating | IK07 (polycarbonate body/diffuser) |
| Working Temp Range | -20°C to +40°C |
| CRI | Ra >80 |
| Power Factor | 0.9 |
| Electrical Class | Class I |
| Certification | UKCA, CE |
| Warranty | 2 Years |
| Product Weight | 4.4 kg (net) |
| Dimensions (Head) | Ø75 mm × H60 mm |
| Box Size | 340 × 340 × 160 mm (gross: 9.4 kg) |
Compliance & Warranty
- Fully UKCA and CE certified for UK construction and industrial applications
- Designed in the UK by Red Arrow Electrical
- Backed by a 2 Year manufacturer warranty
- Durable, weather resistant materials (IP44, IK07, Class I)
Ideal For
- Construction sites, scaffold lighting, and building refurbishments
- Temporary lighting for events, warehouses, or outdoor work areas
- Contractors needing extendable, site safe 110v lighting kits
- Environments where colour clarity and safe, even illumination are critical
Frequently Asked Questions
Can I connect multiple kits together?
Yes, each FKF50100W festoon can link with additional kits (12m, 22m, or 50m lengths) up to 200m total using the integrated connector system. Optional Y splitter cables available.
Is it suitable for outdoor use?
Yes, it is rated IP44, meaning it can handle UK rain and damp conditions during temporary setups. Not for permanent outdoor installs.
What plug does it use?
A pre wired 3 pin 110v 16A yellow industrial plug (conforming to UK site safety standards) is included.
What’s the expected LED lifespan?
Rated at 35,000 hours (L70B50), that is several years of daily use under site conditions.
Does this meet UK safety regulations?
Yes, it is UKCA and CE approved, with full Class I electrical rating and durable IK07/IP44 construction.
