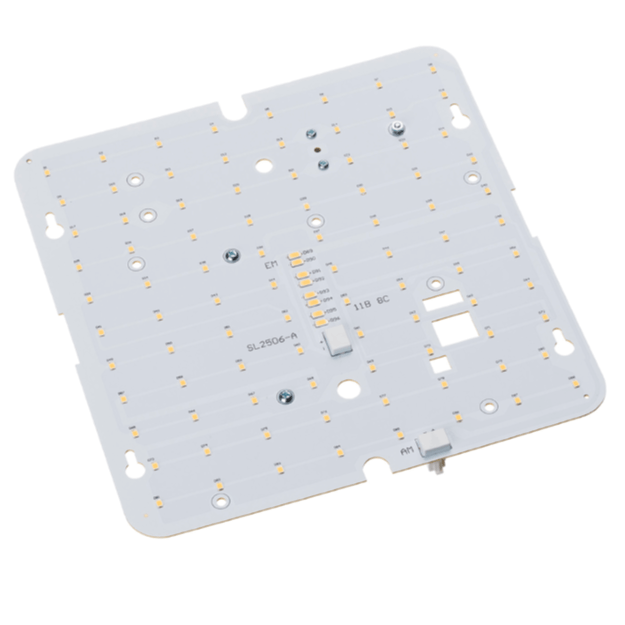

Red Arrow LED Square Gear Trays GTS13-35 - Alternative to 2D Lamps

Red Arrow's 13W LED Square Gear Trays (GTS13-35) – a pragmatic energy-efficient alternative to traditional 2D Lamps.

Widely favoured in Offices, Public Buildings, and Factories, these gear trays redefine lighting norms.

With an impressive efficacy of 138 lm/W, these gear trays set new efficiency standards. Customize your lighting setup with available Emergency and Microwave Sensor options. Fitted with an integral LED driver, they seamlessly integrate with Robust square, empty body bulkhead fittings.

Features:

  • Improved efficacy of 138 lm/W
  • Emergency and microwave sensor options available
  • Fitted with integral LED driver
  • Designed for Robust square, empty body bulkhead fittings
  • Also suitable as a replacement tray for a wide range of other proprietary square bulkhead luminaires including 2D lamp, subject to fixing centres and thermal considerations

Experience adaptability by retrofitting these trays into your existing 2D fittings, facilitating a smooth transition to contemporary, budget-friendly lighting solutions. Furthermore, these trays serve as compatible replacements for a range of proprietary square bulkhead luminaires, including 2D lamps (subject to fixing centres and thermal considerations).

Upgrade your lighting strategy with Red Arrow's 13W LED Square Gear Trays – where efficiency, adaptability, and innovation combine to redefine illumination in Offices, Public Buildings, and Factories.

Model Description Watts Output Dimensions Replaces
GTS13-35 Mains 13w 1800 lm 230x226x30mm E15LEDS
GTS13E-35 Emergency
13w

1800 lm

190 lm Em

230x226x30mm E15LEDSEM
GTS13E/MS-35 Emergency with Microwave Sensor 13w 1800 lm 230x226x30mm E15LEDSEMMS
GTS13/MS-35 Mains with Microwave Sensor
13w

1800 lm

190 lm Em

230x226x30mm E15LEDSMS

Specification:

  • Model: Mains Only GTS13-35 (replaces E15LEDS)
  • Model: 3hr Emergency GTS13E-35 (replaces E15LEDSEM)
  • Model: 3hr Emergency with Microwave Sensor GTS13E/MS-35 (replaces E15LEDSEMMS)
  • Model: Mains with Microwave Sensor GTS13/MS-35 (replaces E15LEDSMS)
  • Material: Phenolic Resin
  • Colour Temperature: 3500K
  • Tray Colour Finish: White
  • Voltage: 230V input
  • CRI: Ra>80
  • Life Expectancy: L80B50 40,000 Hrs
  • Working Temp: -20 degC to 40 degC (0 degC to 40 degC for Emergency Model)
  • Emergency Battery Type: NiCd
  • Electrical Class: Class 2 Double Insulated, no Earth required.

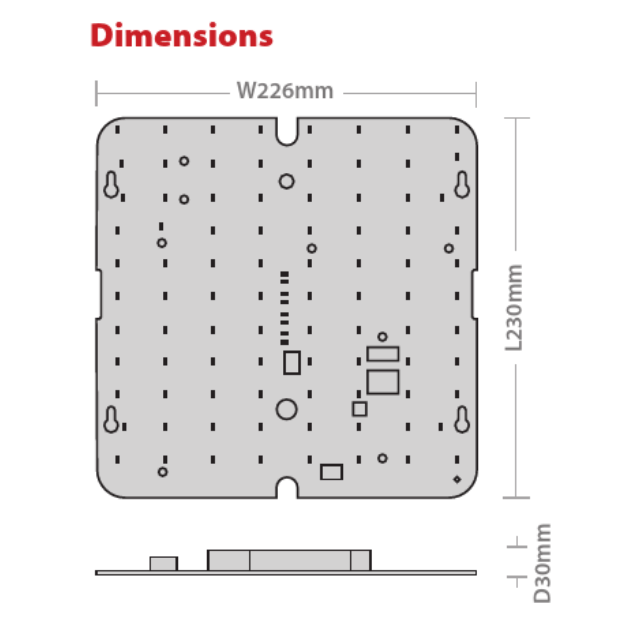

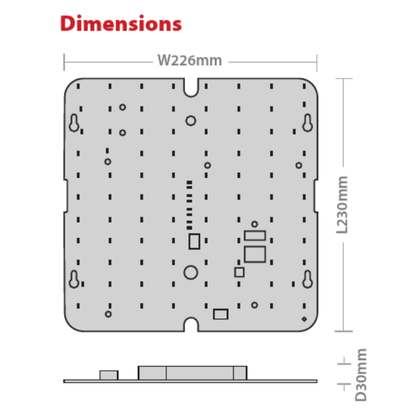

  • Dimensions: 230 x 226 x 30mm
  • Guarantee: 5 years, (Emergency battery guarantee is 1 year)
  • Power factor: 0.75 to 0.9
