Red Arrow Orion Sleek LED Street Lantern - 150 lm/W, IP66, IK08, NEMA 3

Welcome the future of energy-efficient street lighting with the Red Arrow ORION SLEEK STREET LANTERN (ORN) a LED lantern designed for unparalleled performance and aesthetics.

It comes in different wattages that you can choose from: 20W (ORN20/T3/N3/740), 40W (ORN40/T3/N3/740), 60W (ORN60/T3/N3/740), 80 (ORN80/T3/N3/740), and 100W (ORN100/T3/N3/740).

Product Code Description Wattage Lumen Output
ORN20/T3/N3/740 Orion Street Light 20W 4000K NEMA 3 20W 3000 lm
ORN40/T3/N3/740 Orion Street Light 40W 4000K NEMA 3 40W 6000 lm
ORN60/T3/N3/740 Orion Street Light 60W 4000K NEMA 3 60W 9000 lm
ORN80/T3/N3/740 Orion Street Light 80W 4000K NEMA 3 80W 12000 lm
ORN100/T3/N3/740 Orion Street Light 100W 4000K NEMA 3 100W 15000 lm


Key Features:

  • High Performance LED Technology: Deliver exceptional illumination with a luminous efficacy of 150lm/W, maximizing energy efficiency and reducing running costs.
  • Wide Beam Asymmetric Light Distribution: Achieve optimal illumination coverage with the Type III asymmetric lens, ensuring clear visibility and safety on streets and sidewalks.
  • Multiple Wattage Options: Choose the perfect solution for your needs with a range of available wattages, from 20W to 100W, offering tailored illumination for various applications.

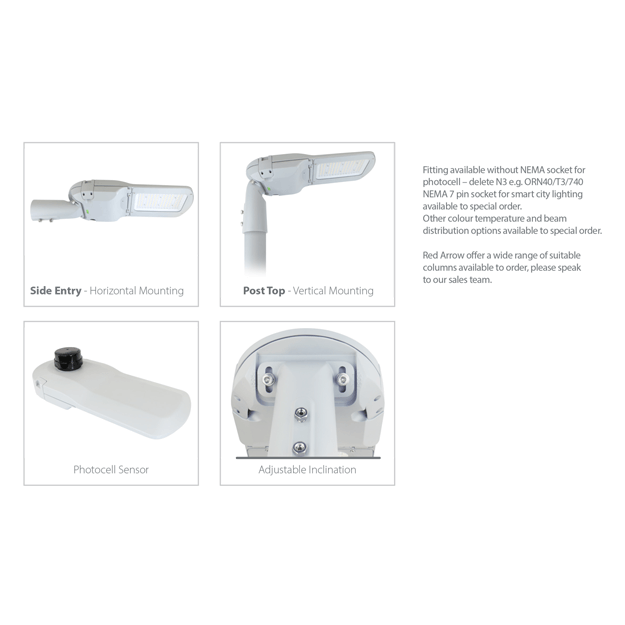

  • Post Top and Side Entry Mounting: Enjoy flexible installation options with both post top and side entry configurations, adapting to any existing infrastructure.

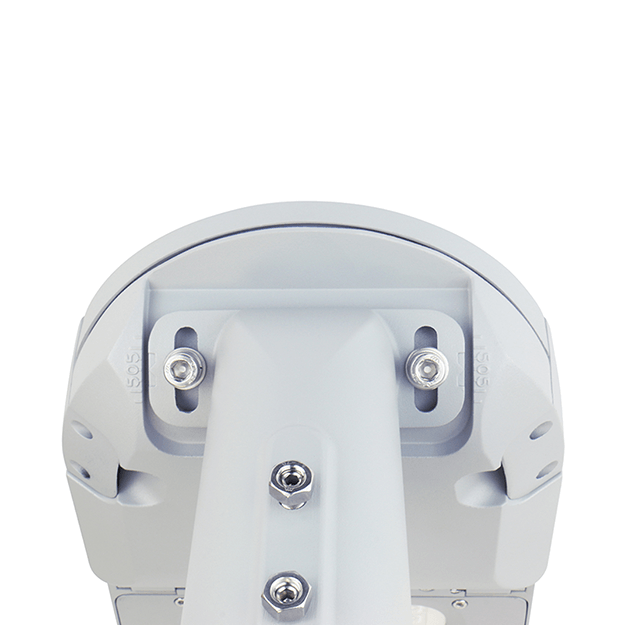

  • Adjustable Inclination Angle: Fine-tune the light distribution and optimize coverage with the adjustable inclination angle feature.
  • Hinged Cover for Easy Maintenance: Simplify access for cleaning and maintenance with the convenient hinged cover design.
  • Rugged Design: Built to withstand harsh weather conditions with a robust die-cast aluminium body and IP66-rated dust and water ingress protection.
  • IK08 Impact Resistance: Ensure long-lasting performance even in demanding environments with the IK08-rated impact resistance.
  • 10Kva Surge Protection: Protect your investment from electrical disturbances and ensure uninterrupted operation with the integrated 10Kva surge protection.

Ideal Application:

  • Street Lighting: Enhance safety and visibility in residential areas, commercial zones, and public spaces.
  • Car Parks: Provide efficient and uniform illumination for safe navigation and parking.
  • Walkways and Paths: Ensure clear visibility and a welcoming atmosphere for pedestrians and cyclists.
  • Public Plazas and Gardens: Create a vibrant and inviting environment with effective and attractive lighting.


  • Material: Body: Die-cast Aluminium
  • Lens: Polycarbonate
  • Colour Temperature: 4000K
  • Colour Finish: Grey (with 500hrs salt spray protection)
  • Beam Angle: Type III asymmetric lens
  • CRI: Ra>70
  • LED Lifetime: L70B50 136,000 Hours
  • IP Rating: IP66
  • IK Rating: IK08
  • Working Temperature: -40 Celsius to 50 Celsius
  • Power Factor: >0.95
  • Electrical Class: Class I
  • Mounting spigot: 60mm Diameter
  • Guarantee: 5 Years
