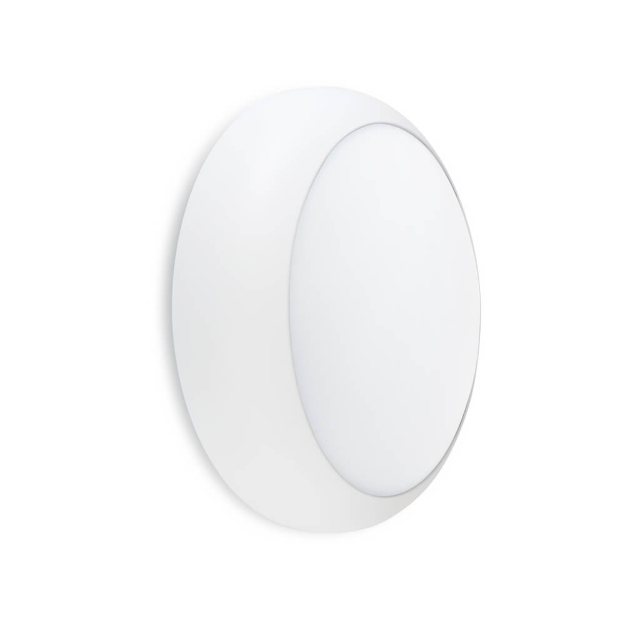

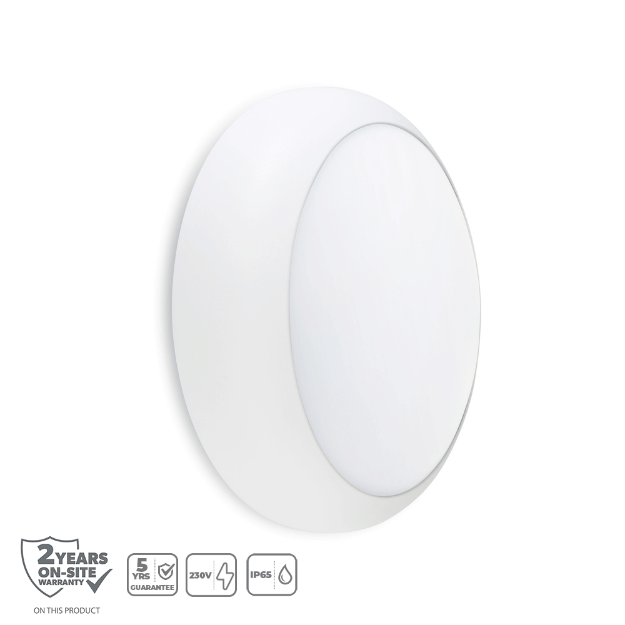

Red Arrow Platinum LED Bulkhead, High Output, IP65, IK10, 3CCT, 18W - PLT18

The Red Arrow Platinum High Output 18W LED Bulkhead (PLT18) is a premium-designed bulkhead that is built to last, withstanding IP65 and IK10 environments. It features 3CCT selectable colour temperatures, multiple cable entry points (rear and side), and a full white bezel as standard.

The Platinum High Output 18W LED Bulkhead features multiple cable entry points, both rear and side, for flexible installation options. Its fast fix gear tray further simplifies the installation process, making it a breeze to set up and enjoy its benefits.

Plus, you've got loads of options to pick from, so you can choose the one that suits you best:

Product Code Description Wattage Lumen Output Colour Temp
PLT18/CCT/WB Platinum HO Bulkhead White Bezel 18W

2100 lm

30/40/60
PLT18/CCT/EM/WB Platinum HO Bulkhead c/w 3Hr Emergency White Bezel 18W



2100 lm

30/40/60
PLT18/CCT/MS/WB Platinum HO Bulkhead c/w Microwave Sensor White Bezel 18W 2100 lm 30/40/60
PLT18/CCT/EM/MS/WB Platinum HO Bulkhead c/w 3Hr Emergency & Microwave Sensor White Bezel 18W 2100 lm 30/40/60



You can also customize the look of your bulkhead with a selection of optional bezels:

Product Code Description

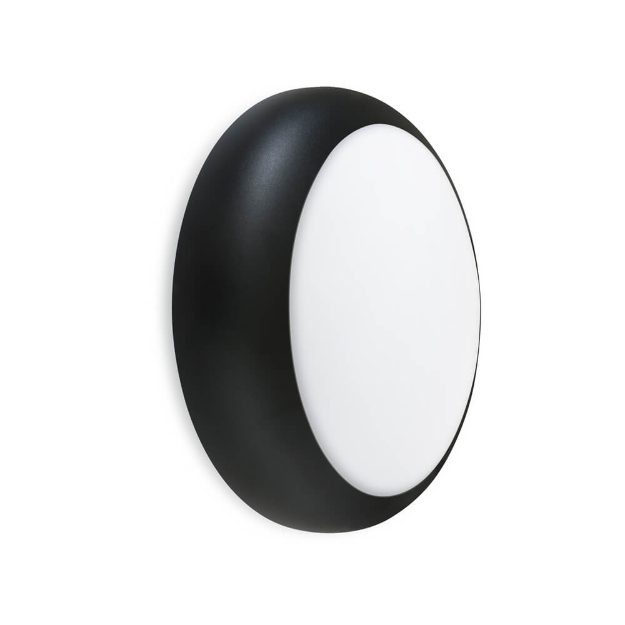

PLT18/BBEZ Platinum Accessory Black Bezel

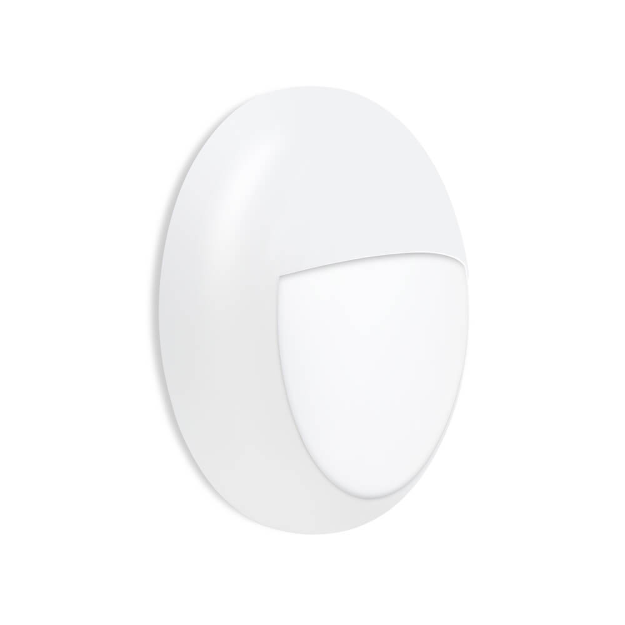

PLT18/WEYE Platinum Accessory White Eyelid
PLT18/BEYE Platinum HO Bulkhead 18W 30/40/60K c/w Microwave Sensor White Bezel
PLT18/CCT/EM/MS/WB

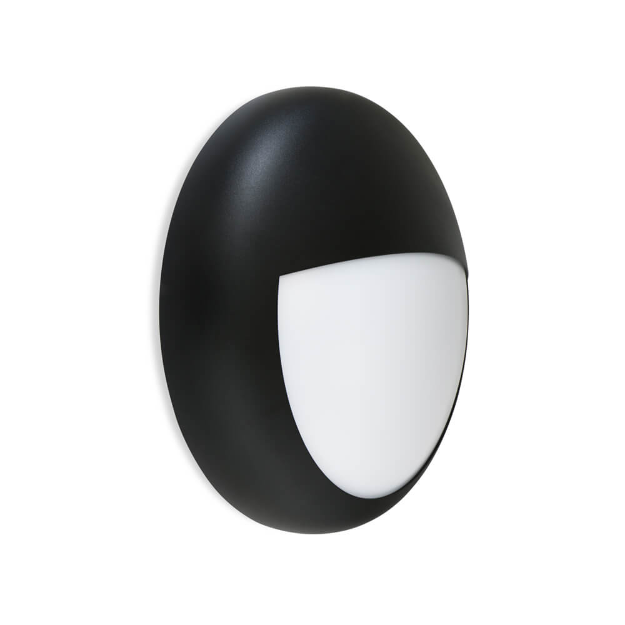

Platinum Accessory Black Eyelid



Key Features:

  • Premium design:  Boasts a sleek and contemporary design that complements any indoor or outdoor setting.
  • Robust IP65 and IK10-rated constructionThe IP65 rating ensures protection against dust and water ingress, while the IK10 rating signifies resistance to impact damage of up to 10 joules.
  • 3CCT selectable colour temperaturesEffortlessly switch between warm white (3000K), neutral white (4000K), and cool white (5000K) illumination to create the perfect ambiance for any mood or occasion.
  • High output 18W LED delivers 2100 lumensWhether you're illuminating a spacious commercial area or providing ample light for outdoor security, this bulkhead delivers the necessary illumination.
  • Energy-efficient: The bulkhead converts a high percentage of electrical energy into light, minimizing energy consumption and reducing your carbon footprint.
  • Fast-fix gear tray for quick and easy installationSimply snap the gear tray into place and connect the wires – it's that easy.
  • Self Test 3Hr Emergency and Microwave Sensor Options Available: The self-test emergency backup ensures illumination during power outages, while the microwave sensor activation provides motion-triggered illumination for added convenience and security.
  • Multiple cable entry points (rear and side) This versatility makes the bulkhead suitable for a wide range of mounting configurations.

Applications:

  • Garages
  • Patios
  • Porches
  • Walkways
  • Warehouses
  • Industrial facilities

Specifications:

  • Material: Body: ABS
  • Diffuser: Polycarbonate
  • Colour Temperature: 3000K/4000K/6000K Selectable
  • Colour Finish: RAL 9003 / RAL 9005
  • CRI: Ra>80
  • LED Lifetime: L70 B50 150,000 Hrs
  • IP Rating: IP65
  • IK Rating: IK10
  • Working Temperature: -20 Celsius to +45 Celsius
  • Emergency versions: 0 Celsius to 40 Celsius
  • Power Factor: 0.9
  • Emergency Battery Type: LifePO4
  • Electrical Class: Class II
  • Guarantee: 5 Years
  • Guarantee for Emergency batteries: 3 years
