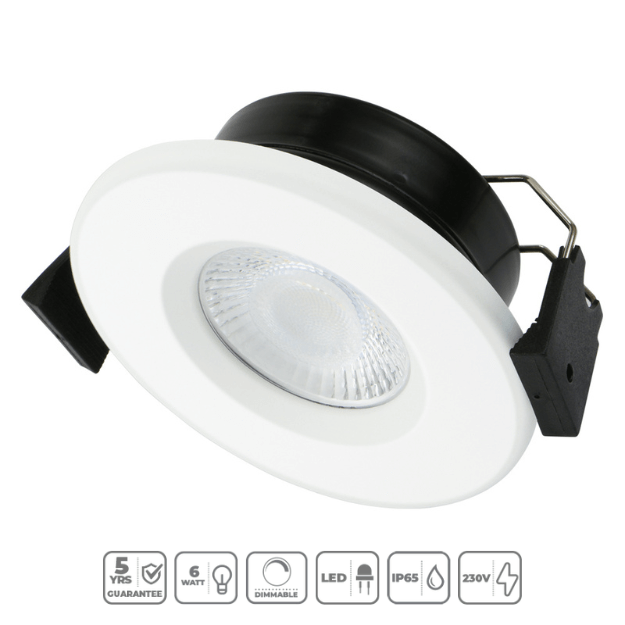

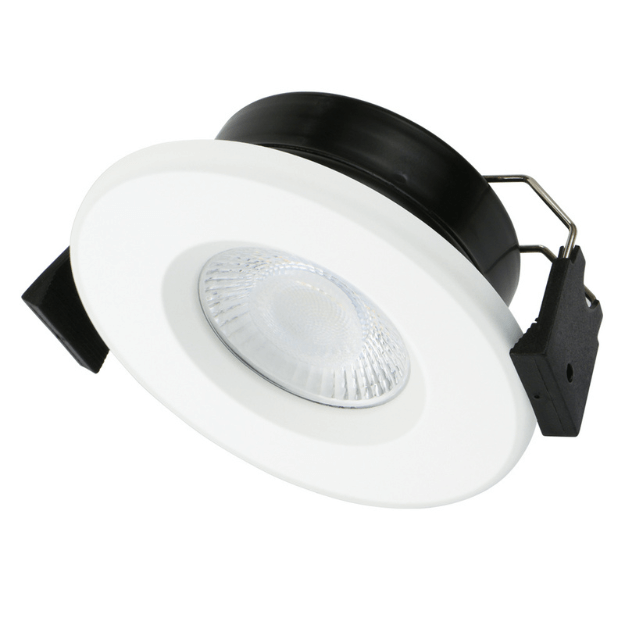

Red Arrow STELLAR 4.5/6W 4CCT Fire Rated LED Downlight - SR/W

A slim, fire-rated downlight with selectable 4.5W or 6W output and 4CCT colour temperatures, ideal for shallow ceiling voids. Tool-free install, acoustic rated, and insulation coverable – perfect for trade and spec in both domestic and commercial applications.

Key Features:

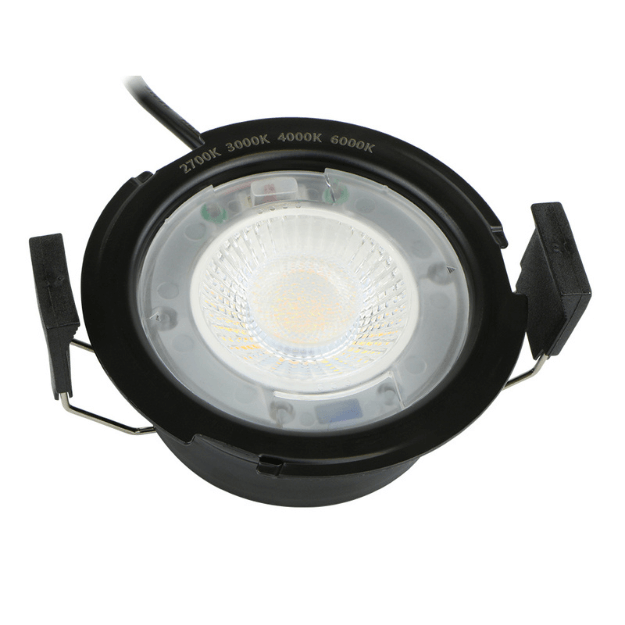

The Red Arrow STELLAR SR/W is a premium fire-rated LED downlight designed for performance, safety, and versatility. Its ultra-slim 36mm profile makes it ideal for shallow ceiling voids in both domestic and commercial settings.

This next-gen model now features dual wattage (4.5W or 6W) selectable on install, with 4CCT colour temperature options—2700K, 3000K, 4000K, or 6000K—adjustable via a front-facing switch beneath the bezel.

Fully fire-rated to EN1365-2 and BS476-21, it also holds acoustic certification to ISO10140-2, and is safe to cover with thermal insulation. Making it ideal for energy-efficient projects.

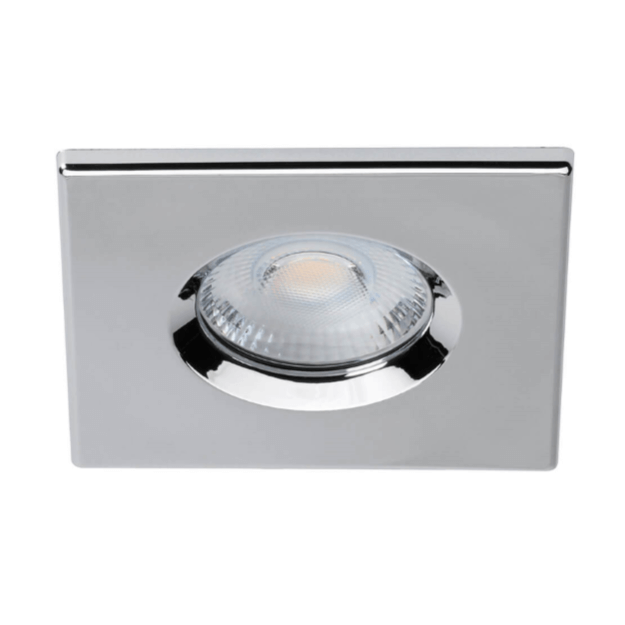

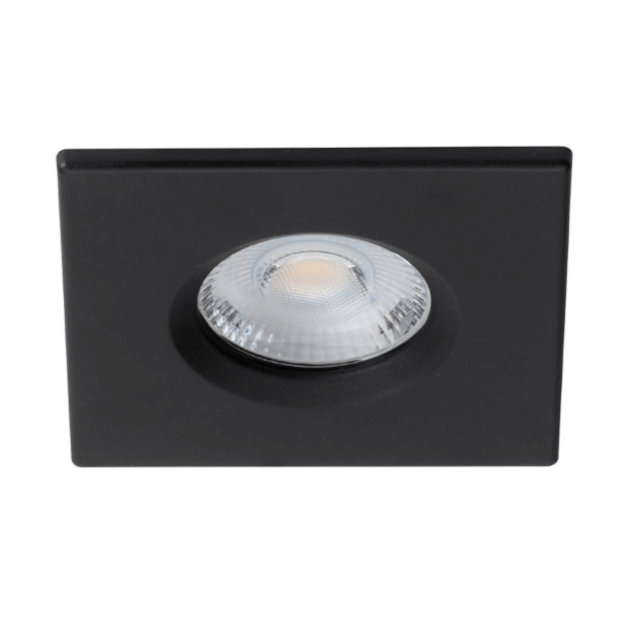

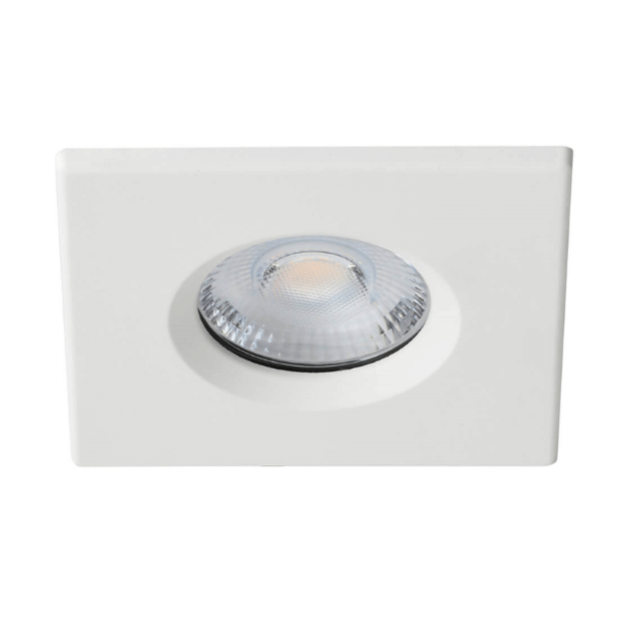

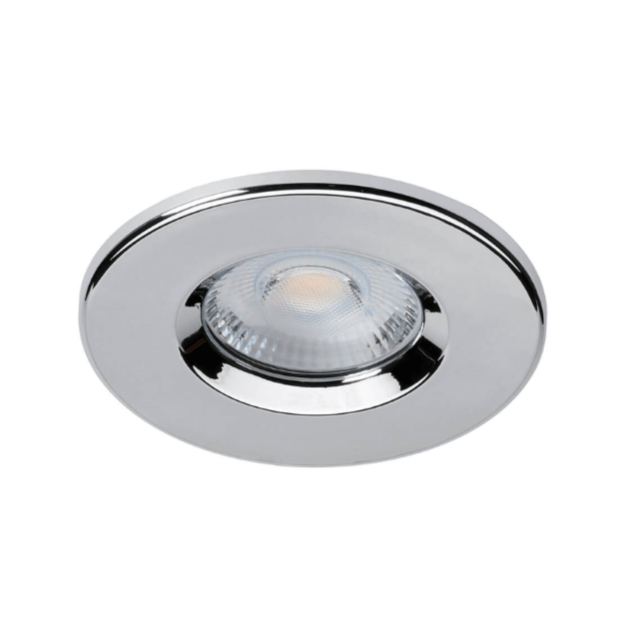

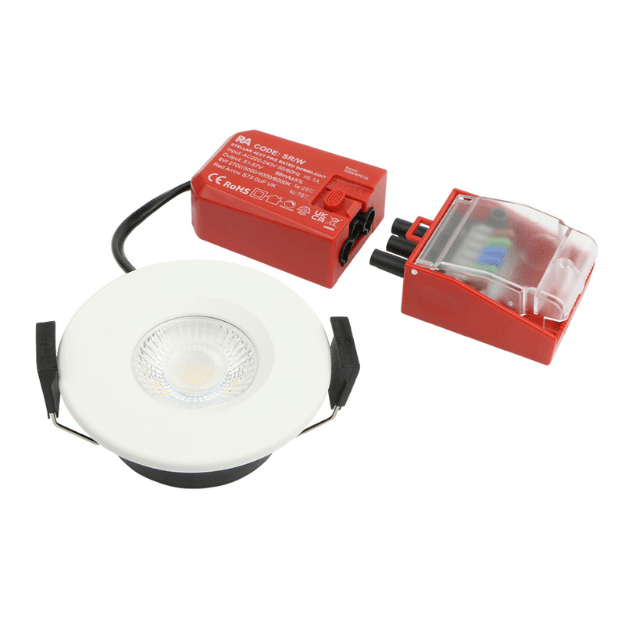

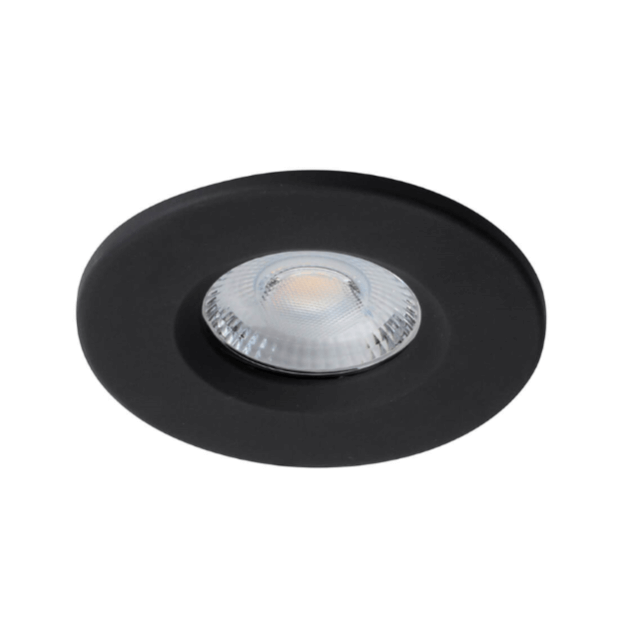

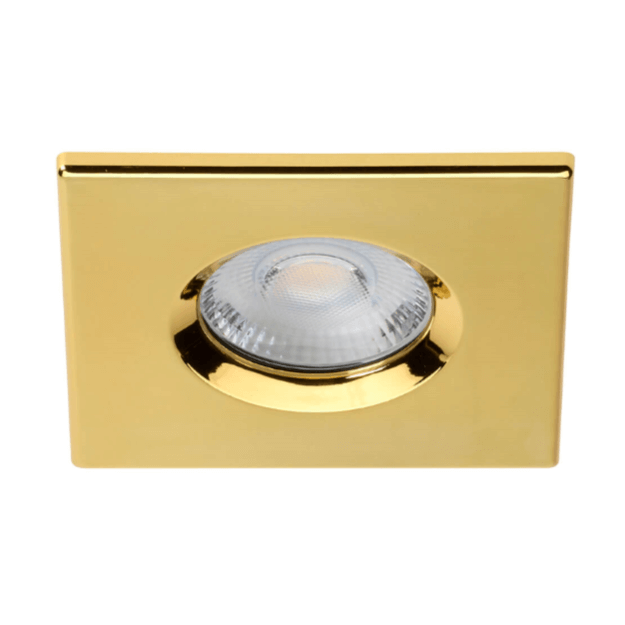

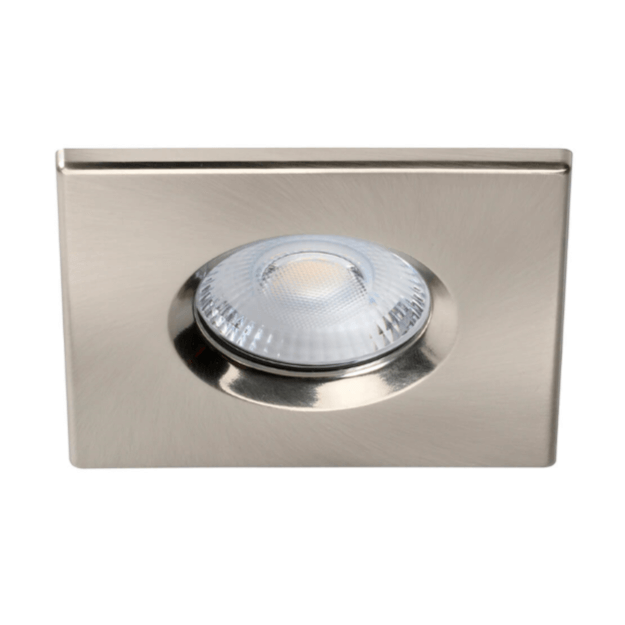

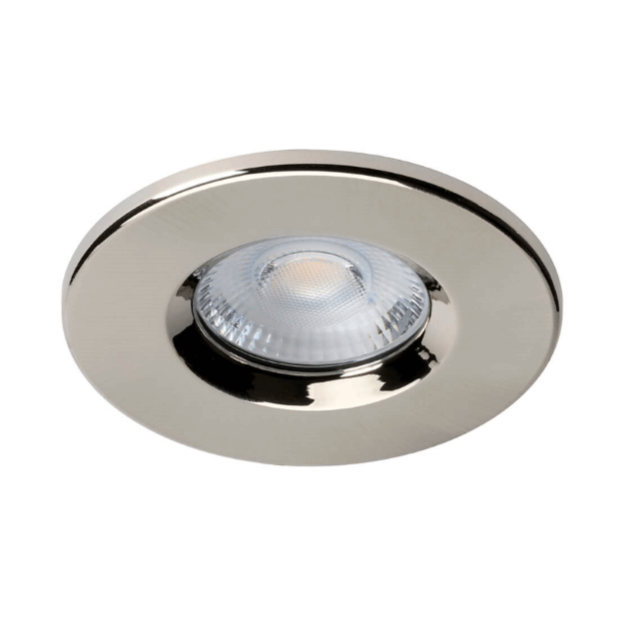

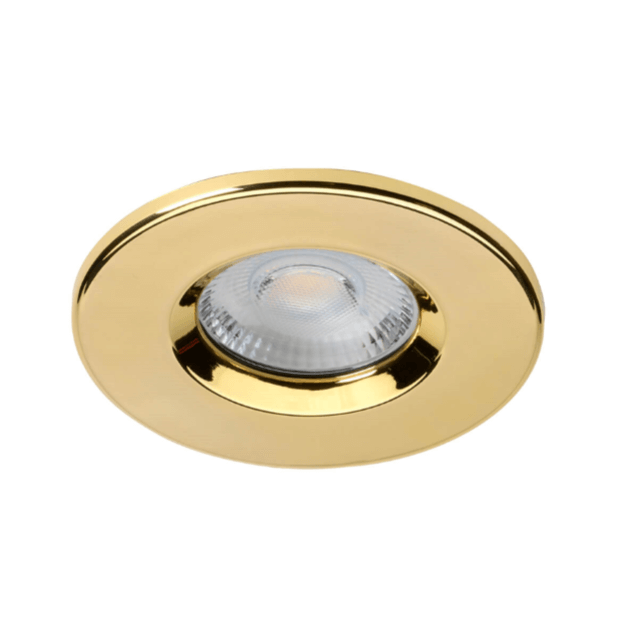

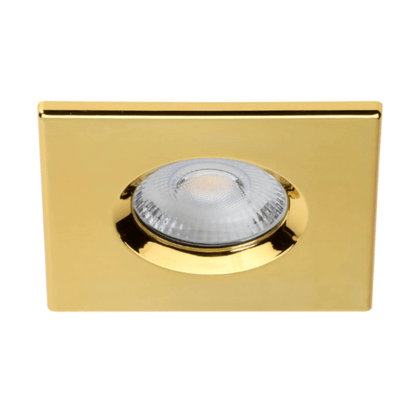

Fast-fix terminals, an emergency loop, and tool-free plug-and-socket connections speed up install times. Choose from 12 interchangeable bezels (round or square) in finishes like white, satin chrome, black, polished brass or chrome.

There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.

Typical Applications

• Ideal for shallow ceiling voids in homes and commercial spaces

• Suitable for kitchens, bathrooms, and hallways (IP65 rated from below)

• Approved for use in timber joist and I-joist constructions

• Excellent for offices, retail, and hospitality, needing adjustable colour temperature

• Compatible with insulation-covered ceilings in energy-efficient builds

Key Specifications:

• Dual Wattage Selectable: 4.5W / 6W

• Lumen Output: 585lm (4.5W) / 775lm (6W)

• 4CCT Selectable: 2700K / 3000K / 4000K / 6000K

• Fire Rated: EN1365-2:2014 and BS476-21:1987

• Acoustic Rated: ISO10140-2:2010

• Insulation Coverable: Yes

• Dimmable: Yes (compatible dimmers listed)

• Beam Angle: 40°

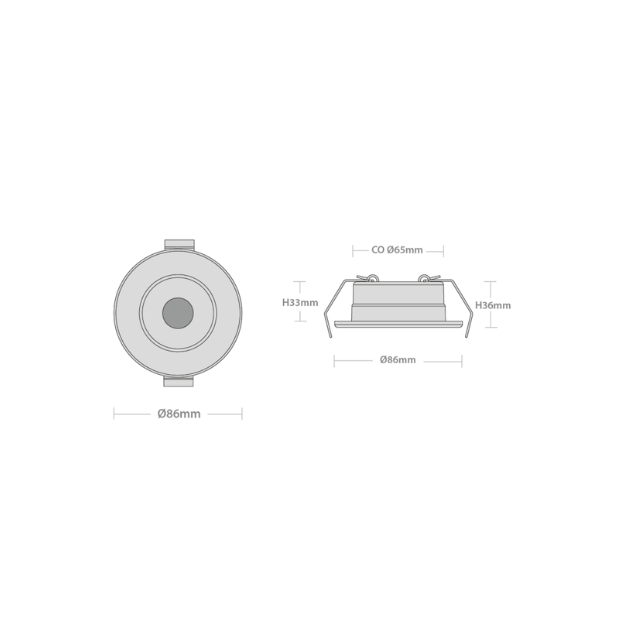

• Dimensions: Ø86 x D36 mm

• Cutout Size: Ø65 mm

• IP65 from Below Ceiling

• IK Rating: IK07

• LED Lifetime: L70B50 – 50,000 hours

• Material: Steel body, polycarbonate bezel

• Input Voltage: 230V AC

• Power Factor: >0.85

• Working Temp: -20°C to 40°C

• Warranty: 5 Years

• Standard Finish: White bezel (other finishes available separately)

Compatible Dimmers:

• Varilight V-PRO JQP401W

• Varilight V-COM MKP400

• MK KI523LV

• BG DM400AP

Replaces:
FRLEDP5WD, FRLEDP8WD, FRDLF8WD-30, FRDLF8WD-50, FRDLR8WD-30, FRDLR8WD-50
