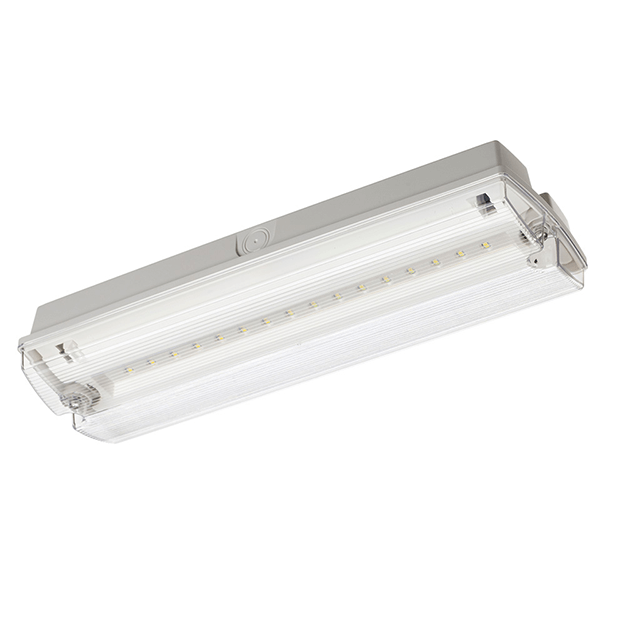

Red Arrow Vanguard Emergency LED Bulkhead, Optional Self Test - IP65, IK06, 3W - VAN/3

Embrace unparalleled safety and efficient illumination with the Red Arrow Vanguard Emergency LED Bulkhead (VAN/3), a versatile solution for your indoor and outdoor lighting needs.

The Vanguard Emergency Bulkhead with Self Test option is a versatile and reliable solution for both indoor and outdoor emergency lighting applications.

Its IP65 rating ensures durability and adaptability to various environments. The hinged gear tray simplifies installation and maintenance, keeping your emergency lighting system up to date.

The optional self-testing functionality safeguards against malfunctions, extending the lifespan of the fixture. For added versatility, consider the available recess kit and exit sign attachment.

Description Wattage Maintained Lumen Output Emergency Lumen Output
Vanguard M/NM Bulkhead 3W 150 lm
150 lm


Key Features:

  • Tough IP65 Construction: Withstand the elements and demanding environments with robust IP65-rated dust and water ingress protection.
  • Hinged Gear Tray for Rapid Installation: Enjoy quick and easy installation with the convenient hinged gear tray for faster access and wiring.
  • Maintained or Non-Maintained Operation: Choose between maintained or non-maintained operation to suit your specific requirements.

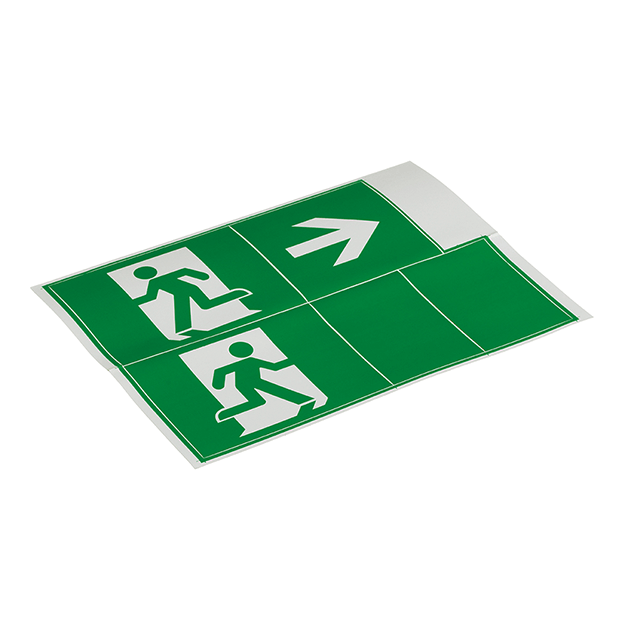

  • Self-Adhesive Legend Kit Included: Enhance visibility and comply with safety regulations with the provided self-adhesive legend kit.
  • Prismatic Lens for Enhanced Spacings: Experience improved illumination coverage with the prismatic lens, optimizing light distribution for both open area and escape route applications.
  • Long-Lasting LiFePO4 Batteries: Benefit from superior performance and extended service life with advanced LiFePO4 batteries.
  • High-Output LED Technology: Delivering exceptional brightness with 150 lumens of output, ensuring clear visibility in emergency situations.
  • Up to 54,000 Hours of LED Lifetime: Experience lasting performance and minimal maintenance with the long-lasting LED lifespan.

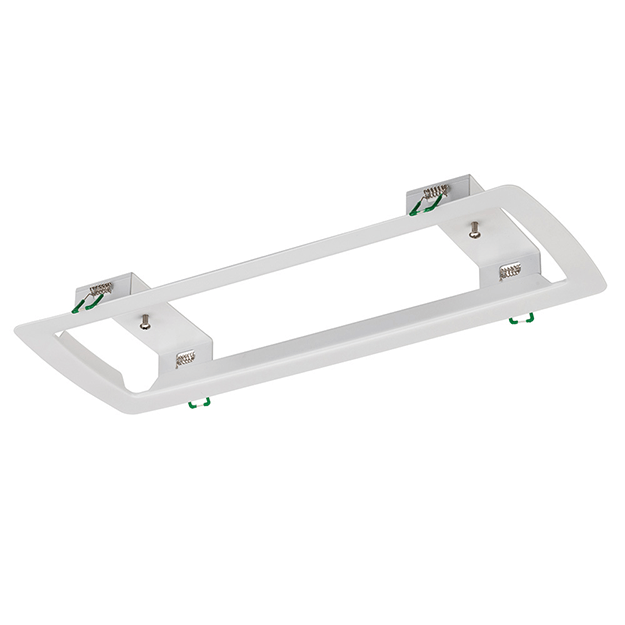

  • Optional Recess Kits: For customized installations, the Vanguard Emergency Bulkhead offers a recess kit to seamlessly integrate into walls and ceilings

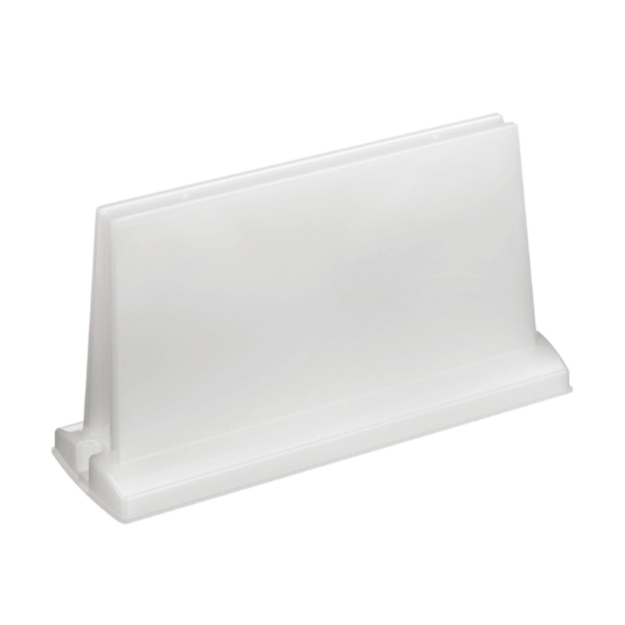

  • Optional Exit Sign Diffuser Attachment: ensures clear and visible emergency lighting signage, guiding occupants to safe exits during power outages or emergencies.
  • Replaces: LFACLED-2

Ideal Application:

  • Industrial Settings: Safeguard workers and ensure operational continuity in factories, warehouses, and other industrial facilities.
  • Commercial Spaces: Maintain safety and visibility in offices, shops, and public areas during power outages.
  • Educational Institutions: Guarantee continued illumination and student safety in classrooms, laboratories, and hallways.
  • Public Buildings: Enhance safety and provide clear emergency signage in hospitals, libraries, and other public buildings


  • Material: Body: ABS
  • Lens: Polycarbonate

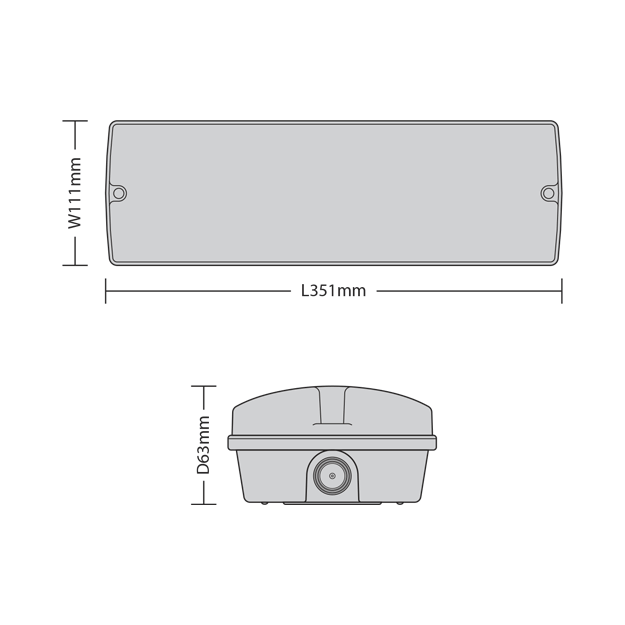

  • Dimensions: L351 x W111 x D63mm
  • Wattage: 3w
  • Lumen Output: 150 lm
  • Colour Temperature: 6500K
  • Colour Finish: White
  • CRI: Ra>80
  • LED Lifetime: L70B50 54,000 Hrs
  • IP Rating: IP65
  • IK Rating: IK06
  • Working Temperature: 0 Celsius to 45 Celsius
  • Emergency Battery Type: LiFePO4
  • Electrical Class: Class II
  • Guarantee: 5 Years (Batteries: 2 Year)
  • On Site Replacement Warranty: 2 Years
