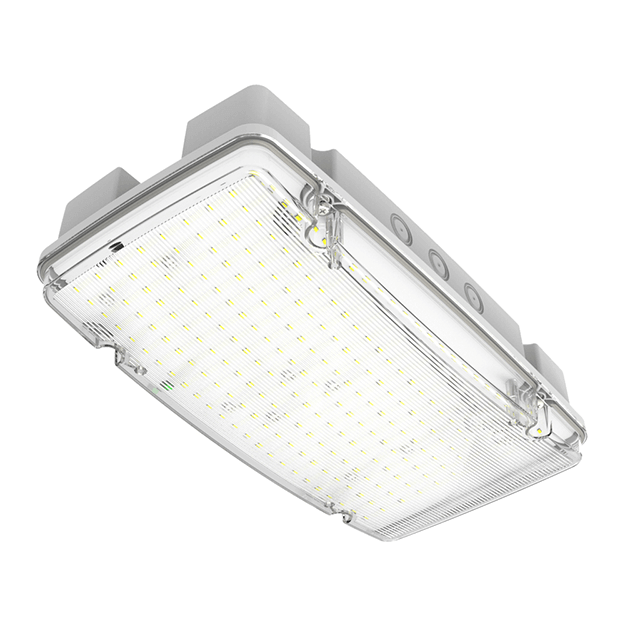

Red Arrow Vanguard Maxi High Output Emergency LED Bulkhead, IK08, IP66, 10W

Experience unwavering safety illumination in both indoor and outdoor environments with the Red Arrow VANGUARD MAXI HIGH OUTPUT EMERGENCY BULKHEAD (VANMX), a robust and versatile solution for your commercial and industrial premises.

 Available in two options which caters to your specific needs. You may choose between the Non Maintained High Output Bulkhead (VANMX/15)or Non Maintained High Output Bulkhead With Self Test Function (VANMX/15/ST).

Description Wattage Lumen Output Net Weight (kg)
Non Maintained High output Bulkhead


1000/1500 lm

Non Maintained High Output Bulkhead With Self Test Function 10W 1000/1500 lm 1.46


Key Features:

  • IP66 and IK08 Construction: Withstand the harshest conditions, including dust, moisture, and water ingress, thanks to the IP66-rated and IK08-rated construction.
  • Selectable Emergency Lumen Output: Adjust the light output to suit your specific needs, ensuring optimal illumination for various applications.
  • Self-Test Version Available: Monitor the functionality of your emergency lighting with the self-test option, providing peace of mind.
  • Self-Contained 3hr Emergency Non-Maintained Operation: Remain illuminated during power outages for up to 3 hours, ensuring continued safety even in the event of a power failure.
  • Prismatic Lens for Optimal Distribution: Achieve wide and even illumination with the prismatic lens, effectively illuminating escape routes and open areas.
  • Durable Polycarbonate Construction: Withstand the rigours of demanding environments with the VANGUARD MAXI's robust polycarbonate construction.

Ideal Application:

  • Industrial Settings: Ensure safety in manufacturing plants, warehouses, and factories with reliable emergency lighting.
  • Commercial Buildings: Illuminate office spaces, retail stores, and public areas with dependable emergency lighting.
  • Transportation Hubs: Provide clear guidance and safety for passengers in airports, train stations, and bus terminals.
  • Healthcare Facilities: Maintain safety in hospitals, clinics, and nursing homes with reliable emergency illumination.


  • Material: Polycarbonate
  • Colour Temperature: 6500K
  • Colour Finish: White
  • CRI: Ra>80
  • LED Lifetime: L70B50 36,000 Hrs
  • IP Rating: IP66
  • IK Rating: IK08
  • Working Temperature: 0 Celsius to 45 Celsius
  • Power Factor: 0.3
  • Emergency Battery Type: LiFePO4
  • Electrical Class: Class II
  • Guarantee: 5 Years (Batteries: 2 Year)
