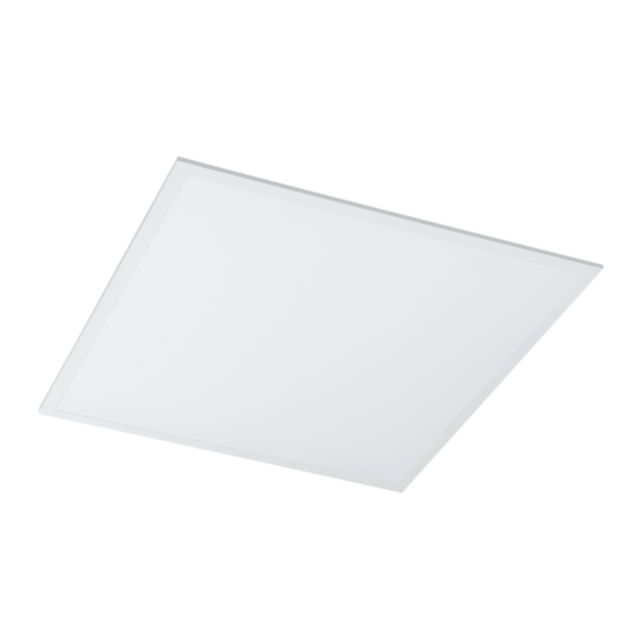

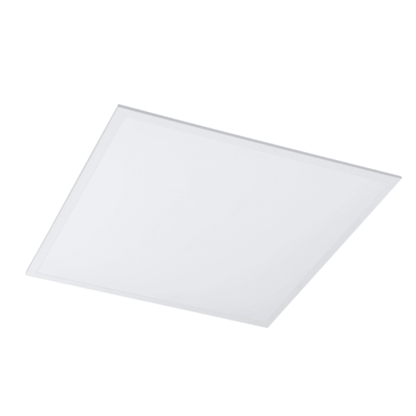

Red Arrow RHOMBUS CCT and Wattage Selectable Back Lit LED Panel - RBE6636-CCT

Red Arrow's RHOMBUS CCT (RBE6636-CCT) is a 600x600 Backlit LED Panel with selectable Wattage and Colour output.

The selectable options allow you to choose from 3000k, 4000k or 6000k colour appearance. Whilst the selectable wattage allows you to vary the lumen output from 3300 to 4500lm

The high efficacy back-lit Rhombus CCT panel offers a conveniet solution for many applications.

Rhombus CCT LED Panel Features:

  • High efficacy of up to 115 lm/W
  • TP(b) diffuser as standard
  • Simple selectable CCT - 3000K, 4000K & 6000K
  • Variable wattage:
    • 28w (3300lm)
    • 32w (3700lm)
    • 36w (4150lm)
    • 40w (4500lm)
  • Emergency conversion using Red Arrow's TitanX Kit
  • Surface Mounting Kits are available here.

There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.

Technical Details:

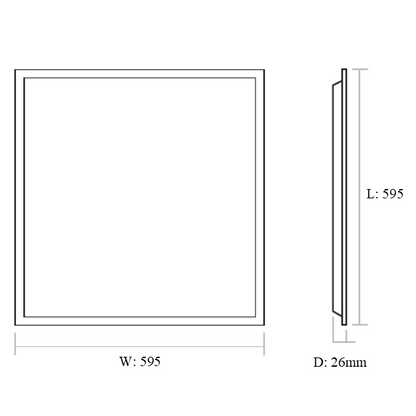

  • Dimensions: L595 x W595 x D26mm
  • Body Material: Steel
  • Frame Material: Aluminium
  • Diffuser Material: TP(b) polystyrene.
  • Colour Temperature: 3000k, 4000k or 6000k
  • Body Colour Finish: White
  • CRI: Ra>80
  • LED Lifetime: L80B50 50,000 Hrs
  • IP Rating: IP40
  • IK Rating: IK03
  • Working Temperature: -20 degC to 45 degC
  • Power Factor: >0.9
  • Electrical Class: Class II
  • Input Voltage: 230v
  • Net Weight (kg): 1.65
  • Guarantee: 5 Years
  • 2 Year On-Site Warranty
