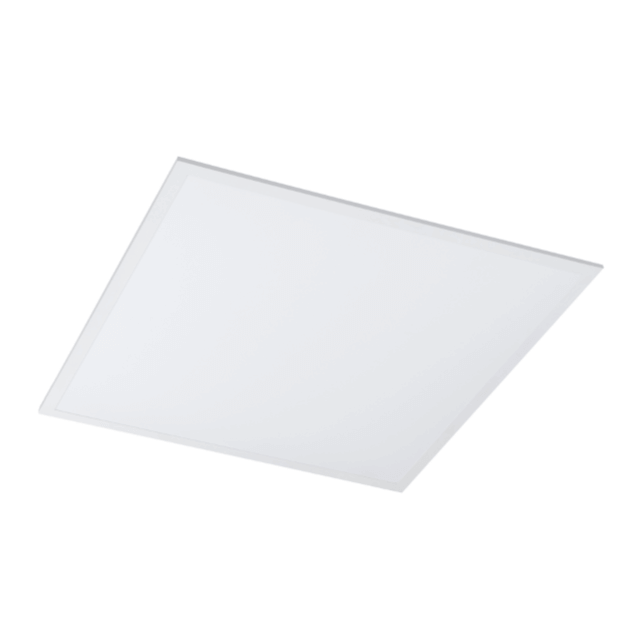

Red Arrow RHOMBUS PLUS TP(b) Back Lit LED Panel

Red Arrow's RHOMBUS PLUS TP(b) Backlit LED Panel (RBX) offers a cost effective combo of high efficacy powered by Philips drivers and a choice of size.

The RHOMBUS PLUS is available in 4000k or 6000k colour appearance. With wattage ranging from 34w to 40w. Ideal for a wide range of commercial projects.

Rhombus Plus LED Panel Features:

  • High efficacy - up to 125 lm/W
  • TP(b) diffuser as standard
  • Philips driver as standard
  • Lumen output range 3910 or 5000 lm
  • Size and wattage options:
    • 600x600: 34w (3910lm)

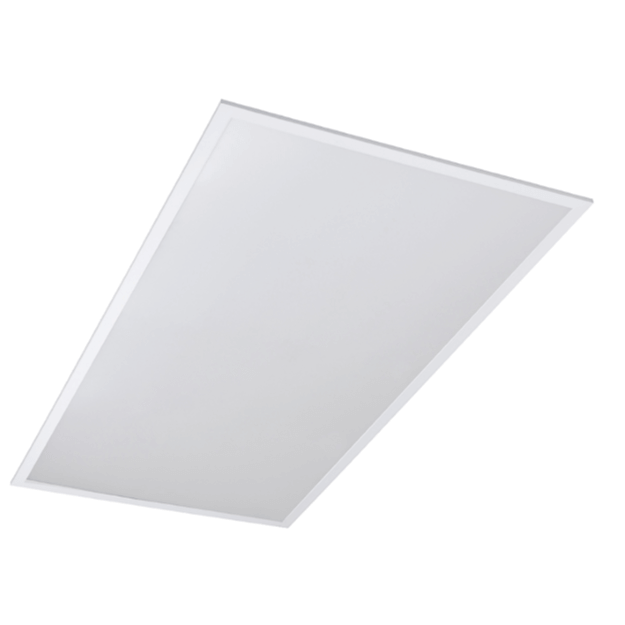

    • 600x1200: 40w (5000lm)
  • Emergency conversion using Red Arrow's TitanX Kit
  • Surface Mounting Kits are available here.

There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.

Technical Details:

  • Dimensions:
    • RBX6634: L595 x W595 x D26mm
    • RBX12640: L1195 x W595 x D36mm
  • Body Material: Steel
  • Frame Material: Aluminium
  • Diffuser Material: TP(b) polystyrene.
  • Colour Temperature: 4000k or 6000k
  • Body Colour Finish: White 9003
  • CRI: Ra>80
  • LED Lifetime: L80B50 50,000 Hrs
  • IP Rating: IP40
  • IK Rating: IK03
  • Working Temperature: -20 degC to 45 degC
  • Power Factor: >0.9
  • Electrical Class: Class II
  • Input Voltage: 230v
  • Net Weight (kg): 1.65
  • Guarantee: 5 Years
  • 2 Year On-Site Warranty
