Red Arrow RHOMBUS PRO - High Efficacy TP(a) Back Lit LED Panel

Red Arrow's RHOMBUS PRO TP(a) Backlit LED Panel (RBP) offers outstanding efficacy and a wide range of sizes.

The RHOMBUS PRO is available in 3000k, 4000k or 6000k colour appearance. With wattage ranging from 24w to 48w

The high efficacy back-lit Rhombus Pro panel offers a convenient solution for many commercial applications.

Rhombus Pro LED Panel Features:

  • Excellent efficacy - up to 130 lm/W
  • TP(a) diffuser as standard
  • Philips driver as standard
  • Lumen output range 3000-5700 lm
  • Size and wattage options:

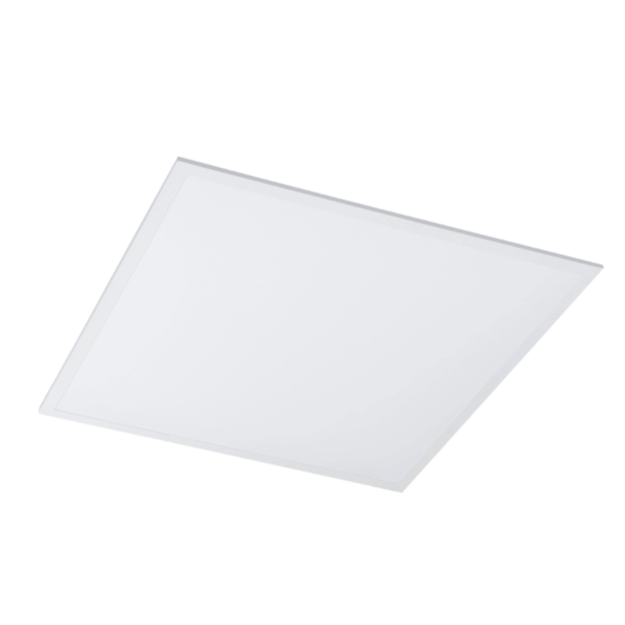

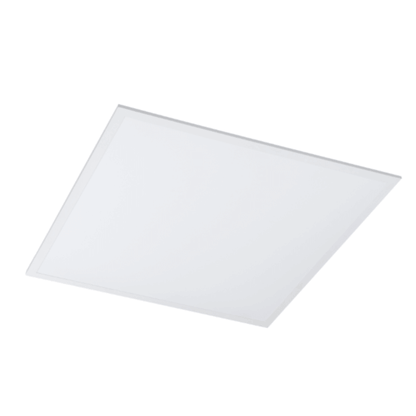

    • 600x600: 24w (3100lm)
    • 600x600: 28w (3640lm)

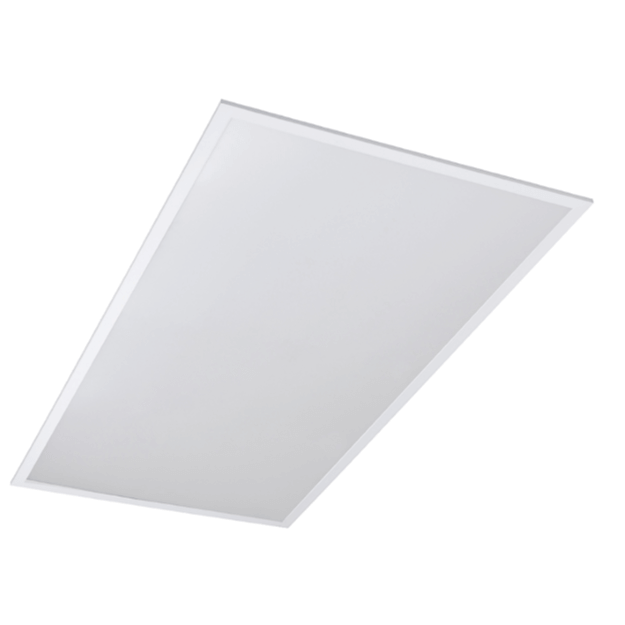

    • 600x1200: 44w (5720lm)

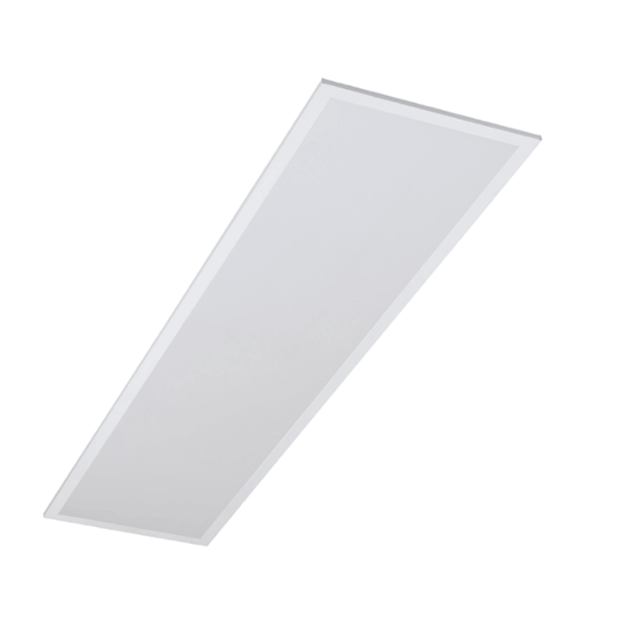

    • 300x1200: 28w (3640lm)
  • Emergency conversion using Red Arrow's TitanX Kit
  • Surface Mounting Kits are available here.

There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.

Technical Details:

  • Dimensions:
    • RBP6624: L595 x W595 x D26mm
    • RBP6628: L595 x W595 x D26mm
    • RBP12644: L1195 x W595 x D32mm
    • RBP12328: L1195 x W295 x D26mm
  • Body Material: Steel
  • Frame Material: Aluminium
  • Diffuser Material: TP(a) polystyrene.
  • Colour Temperature: 3000k or 4000k or 6000k
  • Body Colour Finish: White 9003
  • CRI: Ra>80
  • LED Lifetime: L80B50 50,000 Hrs
  • IP Rating: IP40
  • IK Rating: IK03
  • Working Temperature: -20 degC to 45 degC
  • Power Factor: >0.9
  • Electrical Class: Class II
  • Input Voltage: 230v
  • Net Weight (kg): 1.65
  • Guarantee: 5 Years
  • 2 Year On-Site Warranty
