Round LED Panel - Recessed Downlights 6w to 20w IP44 - Red Arrow Orbit

Round LED Panel - Recessed Downlights 6w to 20w IP44 - Red Arrow Orbit

£6.31
£0.00 £6.31
Sale Sold out
Taxes included.
Model
Colour Temperature
Dimming Driver

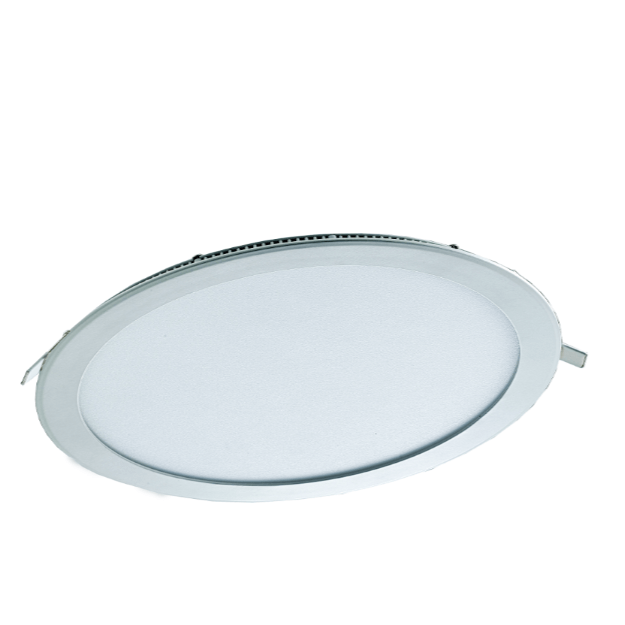

Round LED Panel Downlights from Red Arrow's ORBIT range are as popular in the home as they are in a commercial environment.

These LED Panels have an IP44 rating (from below the ceiling).

You have a choice of five wattages (6w, 12w, 15w, 18w or 20w) and three different colour temperatures (3000k Warm White, 4000k Cool White and 6000k Daylight) as shown in the table below.

Ultra slim profile to fit virtually any ceiling void. Comes complete with prewired remote driver and plug and socket connectors.

Die cast aluminium body and TP(b) PS Diffuser.

These great quality LED fittings are supported by a 3 year guarantee.

All fittings are available with an optional 3hr Emergency Pack or Dimmable Driver.

Ideal for Residential Homes, Commercial Sites and Retail Stores.

There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.

Technical Details:

 Model

Power

(W)

Colour

Temperature

Lumen

Output

Dimensions

LxWxD mm

 Cutout
ORB6-30 6w 3000K 450lm 120 x 30mm 108mm
ORB6-40 6w 4000K 450lm 120 x 30mm 108mm
ORB6-60 6w 6000K 450lm 120 x 30mm 108mm
ORB12-30 12w 3000K 900lm 170 x 34mm 157mm
ORB12-40 12w 4000K 900lm 170 x 34mm 157mm
ORB12-60 12w 6000K 900lm 170 x 34mm 157mm
ORB15-30 15w 3000K 1125lm 200 x 34mm 180mm
ORB15-40 15w 4000K 1125lm 200 x 34mm 180mm
ORB15-60 15w 6000K 1125lm 200 x 34mm 180mm
ORB18-30 18w 3000K 1440lm 225 x 34mm 205mm
ORB18-40 18w 4000K 1440lm 225 x 34mm 205mm
ORB18-60 18w 6000K 1440lm 225 x 34mm 205mm
ORB20-30 20w 3000K 1600lm 240 x 35mm 220mm
ORB20-40 20w 4000K 1600lm 240 x 35mm 220mm
ORB20-60 20w 6000K 1600lm 240 x 35mm 220mm

    Key Features:

    • Bezel Material: Diecast Aluminium
    • Diffuser Material: TP(b) rated PS
    • Colour Temp choice: 3000k, 4000k, 6000k
    • 3 Year Guarantee
    • LED Lifetime: L70B50, 30,000 Hrs
    • Working Temperature: -10 degC to 50 degC
    • IP44 Rating (from below ceiling)
    • IK04 Rating
    • White Finish
    • Input Voltage: 220 to 240v

    Red Arrow's ORBIT Round Panels supersede the model refs SP6W, SP12W, SP15W, SP18W, SP20W
