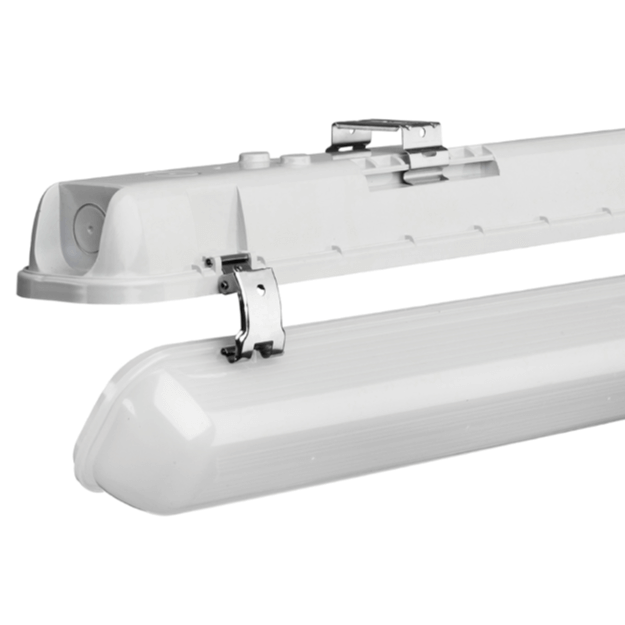

  • Diffuser Open - WEATHERGUARD PLUS+ LED Non Corrosive Fittings - Red Arrow

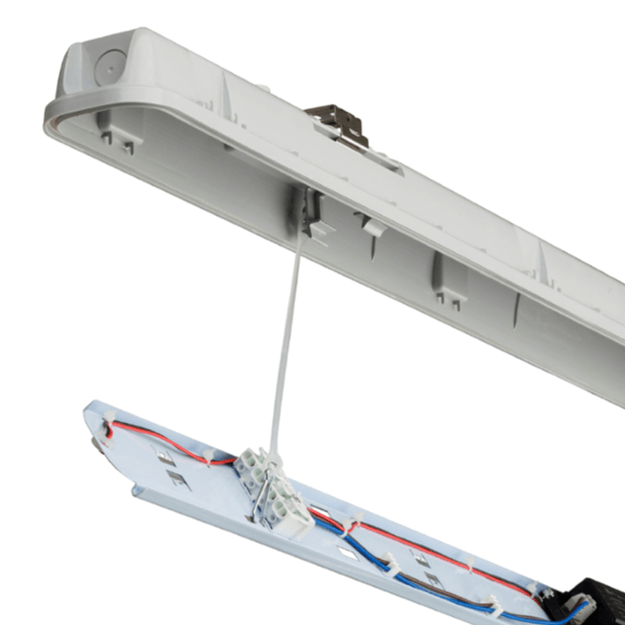

  • Gear Tray - WEATHERGUARD PLUS+ LED Non Corrosive Fittings - Red Arrow
1 3

Red Arrow

WEATHERGUARD PLUS+ LED Non Corrosive Fittings - Red Arrow

WEATHERGUARD PLUS+ LED Non Corrosive Fittings - Red Arrow

£18.00
£18.00
Sale Sold out
Taxes included.
Model
Emergency Version

Red Arrow's Weatherguard Plus raises the bar for IP65 corrosion resistant luminaires.

The Weatherguard range features high efficiency 100 lm/W LEDs and stainless steel clips as standard.

The driver and LEDs are replaceable at the end of life, making for a more environmentally friendly fitting.

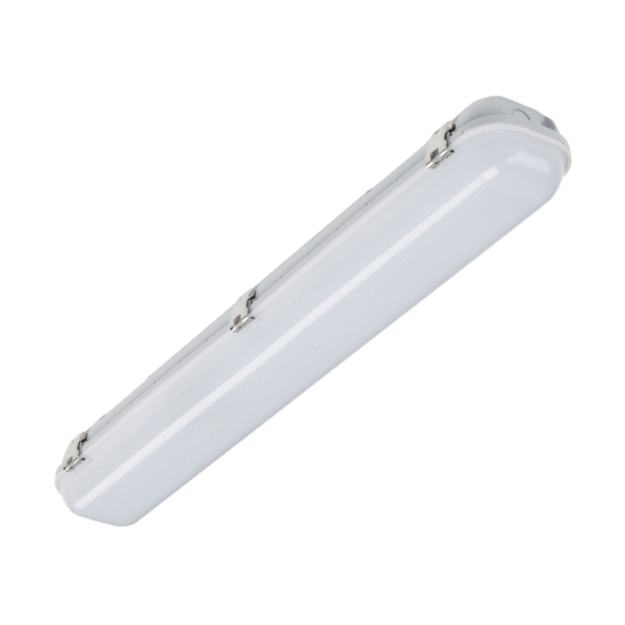

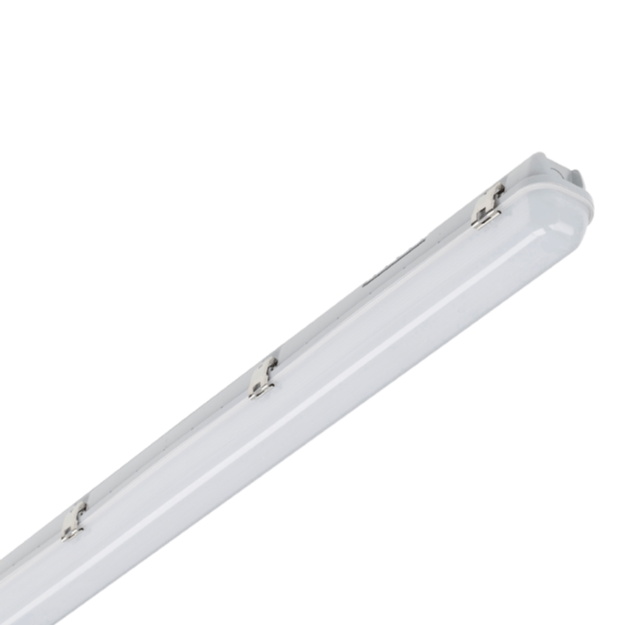

The Weatherguard Plus corrosive are available in three different physical sizes (2ft, 4ft and 5ft) and six wattages (12 or 24w, 25 or 50w, 35 or 70w) as shown in the table below.

These great quality waterproof LED fittings are supported by a 3 year guarantee and 1 year on-site warranty.

All fittings except the 2ft 12w are available with optional 3hr Emergency Pack.

Ideal for Commercial Kitchens, Commercial Sites and Factories.

Replaces Red Arrow's BASTION Non Corrosive fitting, part numbers: NCF212, NCF212E, NCF224, NCF224E, NCF425, NCF425E, NCF450, NCF450E, NCF535, NCF535E, NCF570, NCF570E

There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.

Technical Details: Weatherguard Plus - Non Cossive Fittings

 Model

Power

(W)

Lumen

Output (Em)



Fixing

Centres

Dimensions

LxWxD mm
WGP212 12w 1200lm 400mm L664 x W103 x D78
WGP224 24w 2400lm 400mm L664 x W103 x D78
WGP224E 24w 2400lm (180lm) 400mm
 L664 x W103 x D78
WGP425 25w 2500lm 900mm L1262 x W72 x D78
WGP425E 25w 2500lm (180lm) 900mm L1262 x W72 x D78
WGP450 50w 5000lm 900mm L1262 x W103 x D78
WGP450E 50w 5000lm (360lm) 900mm L1262 x W103 x D78
WGP535 35w 3500lm 1200mm L1562 x W72 x D78
WGP535E 35w 3500lm (180lm) 1200mm L1562 x W72 x D78
WGP570 70w 7000lm 1200mm L1562 x W103 x D78
WGP570E 70w 7000lm (450lm) 1200mm L1562 x W103 x D78

    Key Features:

    • Unique plug-in replaceable LED strips
    • High efficacy - 100 lm/W
    • Stainless steel clips included as standard
    • Strong corrosion resistant IP65 housing
    • Integral microwave sensors available on request.
    • Colour Temp: 4000k
    • 3 Year Guarantee (Emergency batteries 1 year)
    • 1 Year on-site warranty
    • LED Lifetime: L70B50 30,000 Hrs
    • Working Temperature: -20 to 40 degC / 0 to 40 degC for Emergency versions.
    • IP65 Rating
    • IK07 Rating
    • Grey Finish
    • Input Voltage: 230v
    • Emergency Battery Type: Ni-Cd
    • Electrical Class: Class 1
    • Power factor: 0.9
