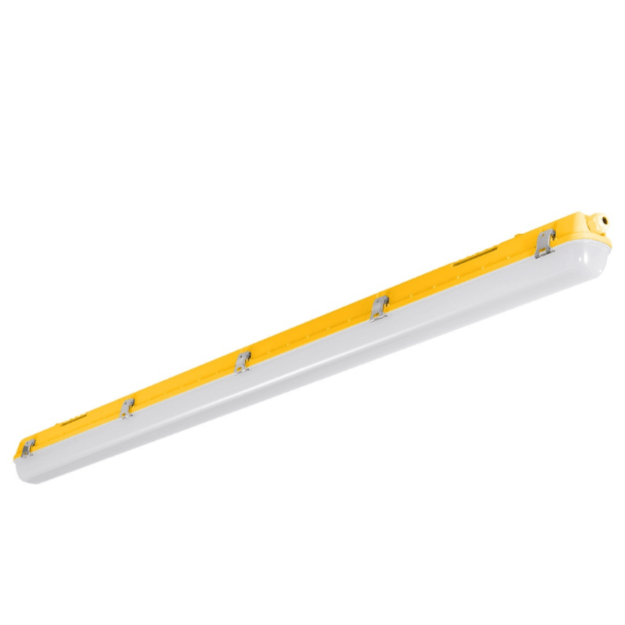

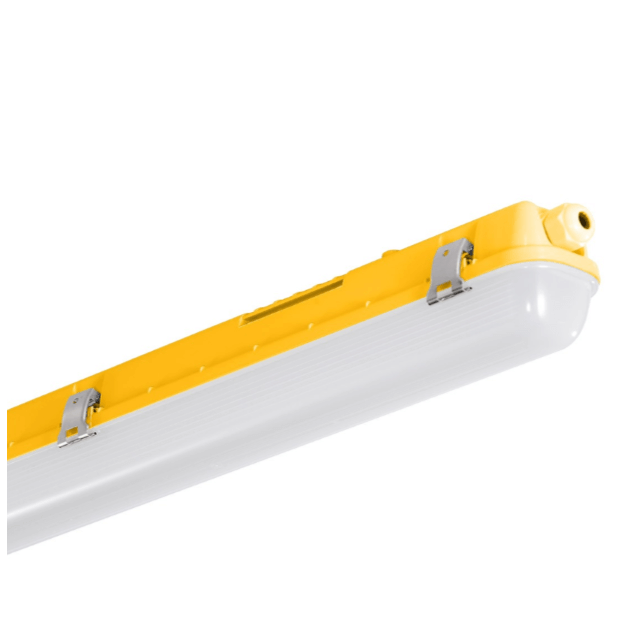

Weatherguard Site 110v LED Non Corrosive Fittings - 2ft, 4ft, 5ft - 20w to 50w - NCF - IP65

Weatherguard Site 110v LED Non Corrosive Fitting supersedes Red Arrow's popular Bastion range, offering a highly efficient 100lm/W and stainless steel clips as standard.

The Weatherguard 110v Site LED NCF's are available in three different physical sizes (2ft, WGS220Y, 4ft, WGS420Y, 5ft, WGS525Y and 5ft Twin, WGS550Y) and three wattages (20w, 25 or 50w) as shown in the table below and are available as 3hr Emergency version.

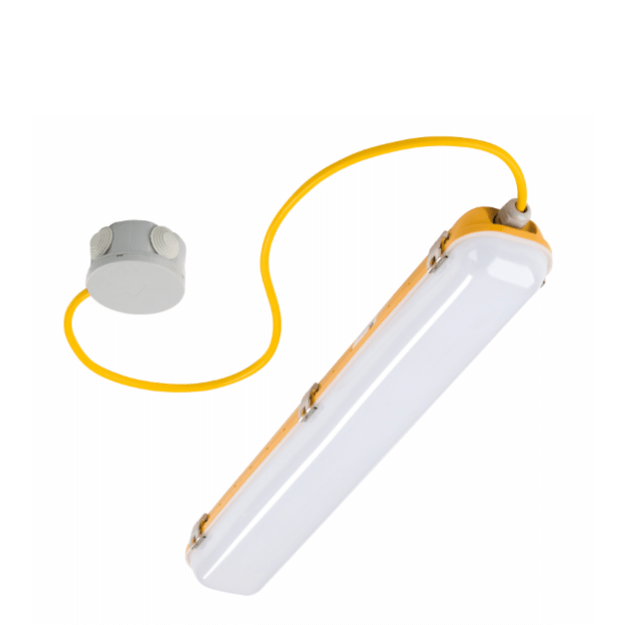

The 2ft 20w and 5ft 25w are available off the shelf with pre-wired 1m flex and junction box. Other pre wire configurations are available on request.

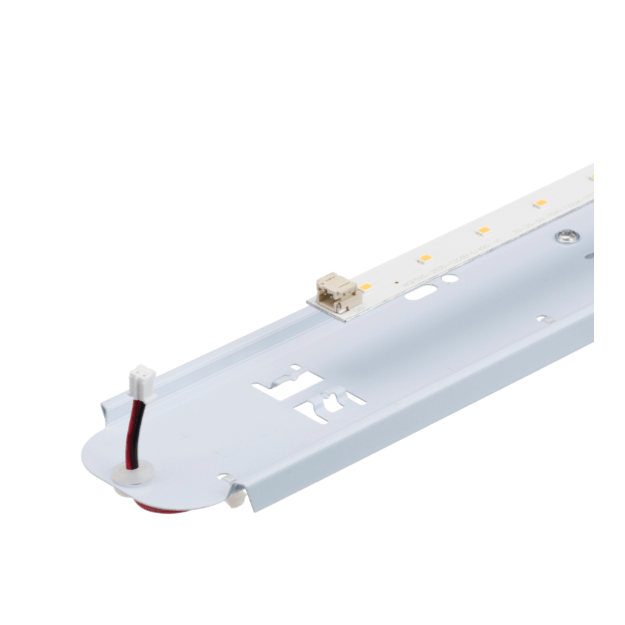

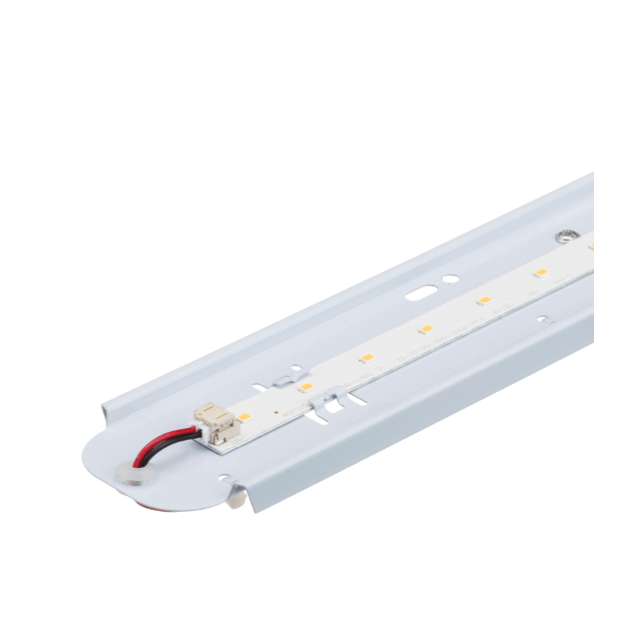

The LEDs and Driver can easily be replaced at the end of life, for minimal environmental impact.

These great quality waterproof IP65 LED fittings are supported by a 3 year guarantee.

Ideal for safe site lighting.

There is normally a 1 to 2 working day lead time on these fittings, but as always, we'll keep you up to date.

Technical Details. Weatherguard 110v NCF's

 Model

Power

(W)

Lumen

Output

Emergency

Output

Dimensions

LxWxD mm

WGS220Y 20w 2000lm 664x103x78
WGS220Y-E 20w 2000lm 200lm 664x103x78
WGS420Y 20w 2000lm 1262x72x78
WGS420Y-E 20w 2000lm 200lm 1262x72x78
WGS525Y 25w 2500lm 1562x72x78
WGS525Y-E 25w 2500lm 225lm 1562x72x78
WGS550Y 50w 5000lm 1562x72x78
WGS550Y-E 50w 5000lm 450lm 1562x72x78

    Key Features.

    • Colour Temp: 4000k
    • 3 Year Guarantee
    • Emergency Version Batteries 1 year guarantee.
    • LED Lifetime: L80B50 30,000 Hrs
    • Working Temperature: -25°C to 40°C (Emergency Version 0°C to 40°C)
    • IP65 Rating
    • IK07 Rating
    • Yellow Finish
    • Input Voltage: 110v
    • 20w to 50w
    • Supplied with Stainless Steel Clips.

    Are you looking to replace one of the old Bastion range?

    SNCF220 Superseded by WGS220Y
    SNCF220E Superseded by WGS220Y-E
    SNCF420 Superseded by WGS420Y
    SNCF420E Superseded by WGS420Y-E
    SNCF525 Superseded by WGS525Y
    SNCF525E Superseded by WGS525Y-E
    SNCF550 Superseded by WGS550Y
    SNCF550E Superseded by WGS550Y-E
